HAGER KN10N - QuickConnect N terminal block, 10 terminal points (blue)Brief descriptionThe HAGER KN10N is a high-quality QuickConnect N terminal block with 10 clamping points for fast and tool-free wire connections. It is suitable for solid, multi-wire and flexible conductors up to 2.5 mm² and provides a secure, vibration-resistant connection. Perfect for quick installation work thanks to clear labelling and push-in technology.Technical featuresNumber of terminals: 10Rated current: 63 ARated voltage: 230 VSuitable for: Solid, stranded and flexible conductorsConductor cross-section flexible (with ferrule): 1.5 - 2.5 mm²Rigid conductor cross-section: 1.5 - 2.5 mm²Colour: BlueLogistics & classificationPackaging unit: 1 piece (box: 20 / PU: 1600)Weight: 0.04 kgStatistical goods number: 85369010eClass: 27141104UNSPSC: 39121400AdvantagesTool-free push-in technologySecure and vibration resistant connectionQuick installationClear conductor labelling

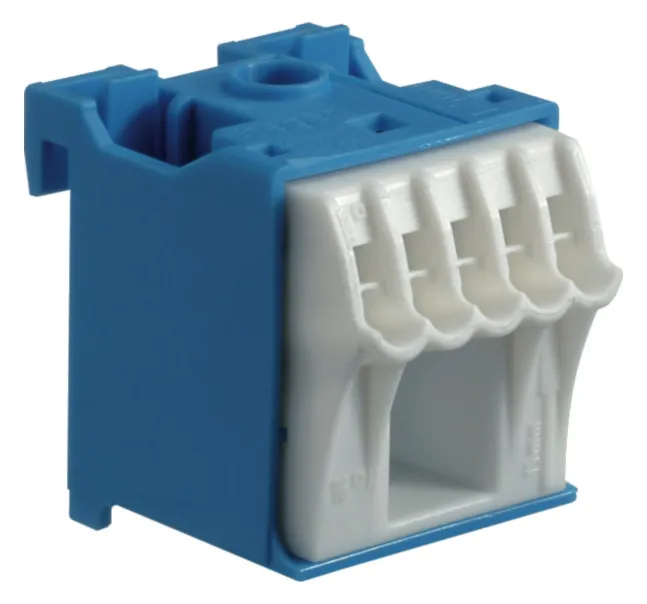

HAGER KN06N - QuickConnect N terminal block, 6 terminal points (blue)Brief descriptionThe HAGER KN06N is a compact QuickConnect N terminal block with 6 clamping points for fast, tool-free wire connections. It is suitable for solid, multi-wire and flexible conductors up to 2.5 mm² and provides a secure, vibration-resistant connection. Ideal for space-saving and efficient installation work with clear conductor labelling.Technical featuresNumber of terminals: 6Rated current: 63 ARated voltage: 230 VSuitable for: Solid, stranded and flexible conductorsConductor cross-section flexible (with ferrule): 1.5 - 2.5 mm²Rigid conductor cross-section: 1.5 - 2.5 mm²Colour: BlueLogistics & classificationPackaging unit: 1 piece (box: 20 / PU: 1600)Weight: 0.03 kgStatistical goods number: 85369010eClass: 27141104UNSPSC: 39121400AdvantagesTool-free push-in technologySecure and vibration-resistant connectionQuick, space-saving installationClear conductor labelling

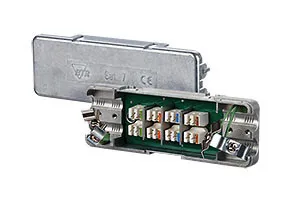

METZ CONNECT 130863-E - Cat.7 cable connectorBrief descriptionThe METZ CONNECT 130863-E is a Cat.7 cable connector for the secure connection and extension of data cables up to Cat.7A. It enables cable feed from one or two sides and supports cable sharing to split an 8-core cable into two 4-core cables. The fully shielded metal housing ensures reliable shielding, while the strain relief and the separate 360° shield connection are captive. A special shrink sleeve offers optional IP67 protection.Technical featuresFor data cables AWG26/1 - 22/1 (single-wire)Cable feed possible from one or two sidesCable sharing: Split 1x8-wire to 2x4-wireFully shielded metal housingStrain relief and separate 360° shield connection, captive2 holes for wall mountingCompatible with Cat.5, Cat.6, Cat.6A, Cat.7 and Cat.8 cablesClass EA in accordance with ISO/IEC 11801 when using Cat.6A connection technologyOptional IP67 protection (special shrink tubing, 130863-01-E)Areas of applicationSuitable for the reliable connection and extension of high-speed data cables in networks, especially where full shielding, flexible cable feed and cable sharing are required. Ideal for professional installations in industry, offices and data centres.

PROTEC.class PHLAK2524GR Main cable branch terminal 25/16 mm², greyThe PROTEC.class PHLAK2524GR main cable branch terminal is a high-quality, single-pole terminal designed for the safe connection and distribution of cables in low-voltage installations. With two inputs up to 25 mm² and four outputs up to 16 mm², it is particularly suitable for small installation distribution boards, meter panels and electrical distribution systems.Main cable branch terminal for versatile applicationsThe PROTEC.class PHLAK2524GR enables the main cable to be clearly split into up to four branch cables. The terminal is designed for conductor cross-sections of 1.5 to 25 mm² on the input side and 1.5 to 16 mm² on the output side.Thanks to its stackable design and mounting on a 35 mm DIN rail, the main cable branch terminal can be used in a space-saving manner in distribution boards and meter installations. The terminal block is suitable for solid, multi-strand, fine-strand and ultra-fine-strand conductors.Features of the PROTEC.class PHLAK2524GRMain circuit branch terminal, 1-pole2 inputs for conductors up to 25 mm²4 outputs for conductors up to 16 mm²Conductor cross-section (inputs): 1.5 – 25 mm²Conductor cross-section at outlet: 1.5 – 16 mm²Rated current: 130 ARated voltage: 1000 VColour: GreySide-by-side mountingMounting on 35 mm DIN railSuitable for solid, multi-strand and fine-strand conductorsSuitable for very fine-stranded conductors without ferruleSuitable for solid aluminium conductorsVDE-certifiedTouch-proof, protection class IP20Stripping length: 16 mmTechnical dataManufacturer: PROTEC.classType: PHLAK2524GRItem number: 05104599EAN: 4016705145997Number of poles: 1Connection type: Screw terminalNumber of inputs: 2Number of outputs: 4Conductor cross-section (input): 1.5 – 25 mm²Conductor cross-section (outputs): 1.5 – 16 mm²Rated current: 130 ARated voltage: 1000 VWidth: 29 mmHeight: 44 mmDepth: 40 mmProtection class: IP20Colour: GreyWeight: approx. 70 gMounting type: DIN railHigh-quality materials and robust constructionThe terminal block is made of tin-plated brass and ensures a reliable electrical connection. The terminal screws are made of galvanised steel. The insulated housing, made of impact-resistant, flame-retardant and halogen-free polyamide, offers additional protection and features a child-resistant design.The terminal block has two screws per clamping point. The screws feature a Pozidriv Z2 combination slot. The rounded corners ensure a compact and installation-friendly design.Installation and connectionThe PROTEC.class PHLAK2524GR is mounted on a 35 mm mounting rail in accordance with EN 50022 / EN 60715. The main conductor can be connected with a cross-section of 1.5 to 25 mm². Conductor cross-sections of 1.5 to 16 mm² are provided for the four branch conductors.The recommended tightening torque is 2.5 Nm for the main cable and 2 Nm for the branch cables. The required strip length is 16 mm.Suitable forsmall installation distribution boardsMeter roomsElectrical distribution boardsLow-voltage circuitsDistribution board and control cabinet constructionMain and branch connectionsAC 400 V installationsContents of delivery1 x PROTEC.class PHLAK2524GR main cable branch terminal, grey

PROTEC.class PHLAK25225GR Main Cable Branch Terminal 25/16 mm², 5-pole, greyThe PROTEC.class PHLAK25225GR main cable branch terminal is a high-quality, 5-pole main cable branch terminal for the safe connection and distribution of cables in low-voltage installations. It features a total of 10 inputs for conductors up to 25 mm² and 10 outputs for conductors up to 16 mm², and is ideal for distribution boards, meter panels and other electrical distribution systems.5-pole main cable branch terminal block for electrical installationsThe PHLAK25225GR enables the clear distribution of main cables to several branch cables. Each pole has two inputs and two outputs. This provides a total of 5 × 2 inputs for conductors up to 25 mm² and 5 × 2 outputs for conductors up to 16 mm².The main circuit branch terminal is designed for mounting on a 35 mm DIN rail in accordance with EN 50022 / EN 60715. Thanks to its side-by-side mounting design, the terminal can be expanded with additional PHLAK-type terminals.Features of the PROTEC.class PHLAK25225GR5-pole main circuit tap-off terminal10 inputs for conductors up to 25 mm²10 outputs for conductors up to 16 mm²Conductor cross-section at input: 1.5 – 25 mm²Conductor cross-section at the output: 1.5 – 16 mm²Rated current: 130 AInsulation voltage: 1000 V AC/DCSuitable for 400 V AC installationsCan be daisy-chained and extended using PHLAK-type terminalsMounting on a 35 mm DIN railSuitable for copper and aluminium conductorsSuitable for solid and stranded conductorsSuitable for fine-stranded conductors with ferruleTouch-proof, protection class IP20Colour: GreyRounded cornersTechnical dataManufacturer: PROTEC.classType: PHLAK25225GRItem number: 05105384EAN: 4016705153848Number of poles: 5Connection type: Screw connectionNumber of inputs: 10Number of outputs: 10Conductor cross-section (input): 1.5 – 25 mm²Conductor cross-section (outputs): 1.5 – 16 mm²Inlet conductor cross-section (AWG): 16–4Conductor cross-section (outgoing), AWG: 16 – 6Rated current: 130 AInsulation voltage: 1000 V AC/DCOvervoltage category: IIIRated impulse voltage: 8 kVProtection rating: IP20Touch-safe: YesMounting type: DIN railWidth: 100 mmHeight: 44 mmDepth: 42 mmColour: GreyWeight: approx. 0.24 kgMaterial and constructionThe terminal block is made of tin-plated brass and ensures a reliable electrical connection. The terminal screws are made of galvanised steel. The insulated housing, made of impact-resistant, flame-retardant and halogen-free polyamide, provides safe protection against accidental contact.The socket terminals each have two screws per clamping point. The screws feature a Pozidriv Z2 combination cross-head. The design with rounded corners allows for easy and compact installation.Installation and connectionThe main cable branch terminal is mounted on a 35 mm DIN rail in accordance with EN 50022 / EN 60715. Rigid and multi-strand conductors from 1.5 to 25 mm² are intended for the main circuit. Fine-strand conductors can be connected using ferrule terminals up to 16 mm².For the branch circuits, solid and multi-strand conductors from 1.5 to 16 mm² are suitable, as are fine-stranded conductors with ferrule terminals from 1.5 to 10 mm². The strip length is 16 mm.Areas of applicationInstallation distribution boardsMeter locationsSmall distribution boardsElectrical distribution systemsLow-voltage circuitsDistribution board and switch cabinet constructionMain and branch connectionsDistribution of multiple circuitsStandards and approvalsThe PROTEC.class PHLAK25225GR is intended for use in installation distribution boards and meter panels in accordance with VDE 0603. The main busbar and branch terminal complies with the relevant requirements for main busbar and branch terminals in accordance with VDE 0603-2, as well as for connection equipment for low-voltage circuits in accordance with VDE 0613 Part 1 / EN 60998-1.Contents of the pack1 x PROTEC.class PHLAK25225GR main busbar tap-off terminal, 5-pole, grey

PROTEC.class PHLAK2522GR Main Cable Branch Terminal 25/16 mm², greyThe PROTEC.class PHLAK2522GR main circuit branch terminal is a high-quality, single-pole main circuit branch terminal for the safe connection and distribution of cables in low-voltage installations. The terminal is particularly suitable for small distribution boards and meter panels and can be mounted on a 35 mm DIN rail to save space.Main circuit branch terminal for professional electrical installationsThe PROTEC.class PHLAK2522GR features two inputs for conductors up to 25 mm² and two outputs for conductors up to 16 mm². Thanks to its side-by-side mounting design, the main line branch terminal can be used flexibly in distribution boards. It can be mounted either horizontally or vertically.The tin-plated brass terminal block ensures a reliable electrical connection. The impact-resistant, flame-retardant and halogen-free polyamide insulated housing provides safe protection against accidental contact in accordance with IP20.Features of the PROTEC.class PHLAK2522GRMain cable branch terminal, 1-poleFor main cables from 1.5 to 25 mm²For branch circuits from 1.5 to 16 mm²2 inputs and 2 outputsRated current: 130 ARated voltage: up to 1000 VColour: GreyCan be mounted side-by-sideMounting on a 35 mm DIN rail in accordance with EN 50022 / EN 60715Suitable for solid and stranded conductorsSuitable for fine-stranded conductorsSuitable for solid aluminium conductorsVDE-certifiedProtected against accidental contact, IP20Can be fitted horizontally or verticallyStripping length: 16 mmTechnical dataManufacturer: PROTEC.classType: PHLAK2522GRItem number: 05104594EAN: 4016705145942Number of poles: 1Connection type: Screw terminalConductor cross-section (input): 1.5–25 mm²Conductor cross-section (output): 1.5 – 16 mm²Number of inputs: 2Number of outputs: 2Rated current: 130 AVoltage: 1000 VWidth: 21 mmHeight: 44 mmDepth: 40 mmProtection class: IP20Colour: GreyWeight: approx. 50 gInstallation and connectionThe main cable can be connected with a conductor cross-section of 1.5 to 25 mm². Conductor cross-sections of 1.5 to 16 mm² are provided for the branch cable. The main cable is connected with a tightening torque of 2.5 Nm and the branch cable with 2 Nm.The terminal block has two screws per clamping point. The screws used have a Pozidriv Z2 combination slot. The terminal block is designed for mounting on a 35 mm mounting rail and is therefore ideally suited for use in distribution boards and meter panels.Suitable forSmall installation distribution boardsMeter panelsLow-voltage circuitsElectrical distribution systemsDistribution board and control cabinet constructionMain and branch connectionsContents of delivery1 x PROTEC.class PHLAK2522GR main circuit branch terminal, grey
