Phase Busbars for Safe and Efficient Power Distribution in Distribution Boards and Control Panels
Discover our high-quality phase busbars (also known as comb busbars or MCB busbars), designed for fast, professional, and secure cross-wiring of miniature circuit breakers (MCBs), RCDs (residual current devices), and other modular installation devices. They ensure reliable power distribution with maximum stability and touch protection – the ideal solution for electrical contractors, panel builders, and industrial applications.
Benefits of High-Quality Phase Busbars
Phase busbars significantly reduce wiring time compared to individual cable connections. They enable clean, tidy, and standards-compliant installations according to IEC 60947-1 and relevant national regulations. Their compact design saves space in enclosures, minimises potential errors, and increases operational safety under continuous load.
Applications of Phase Busbars
Phase busbars are essential for stable power distribution across numerous sectors:
- Electrical contractors and service companies: Rapid cross-connection in sub-distribution boards, meter cabinets, and main panels for new builds and renovations.
- Construction and renovation companies: Efficient power distribution in temporary site boards, construction power supplies, and modernisation projects.
- Industrial and machine building companies: Reliable supply to control systems, drives, and switchgear in production environments.
- Van and vehicle conversions (campervans, motorhomes, commercial vehicles): Compact AC distribution for onboard networks, inverters, and consumers in mobile setups.
- Research centres and laboratories: Precise and safe power supply for test benches, measurement, and experimental equipment.
Variants and Technical Features of Phase Busbars
Depending on your requirements, you can choose from single-pole, three-pole, or four-pole phase busbars with fork (comb) or pin-type connections, cuttable or pre-configured versions. Key selection criteria include number of poles, current rating, cross-section, and compatibility with standard DIN-rail modular devices (especially MCB + RCD combinations).
| Type | Poles | Typical Current Rating | Cross-Section | Common Applications |
|---|---|---|---|---|

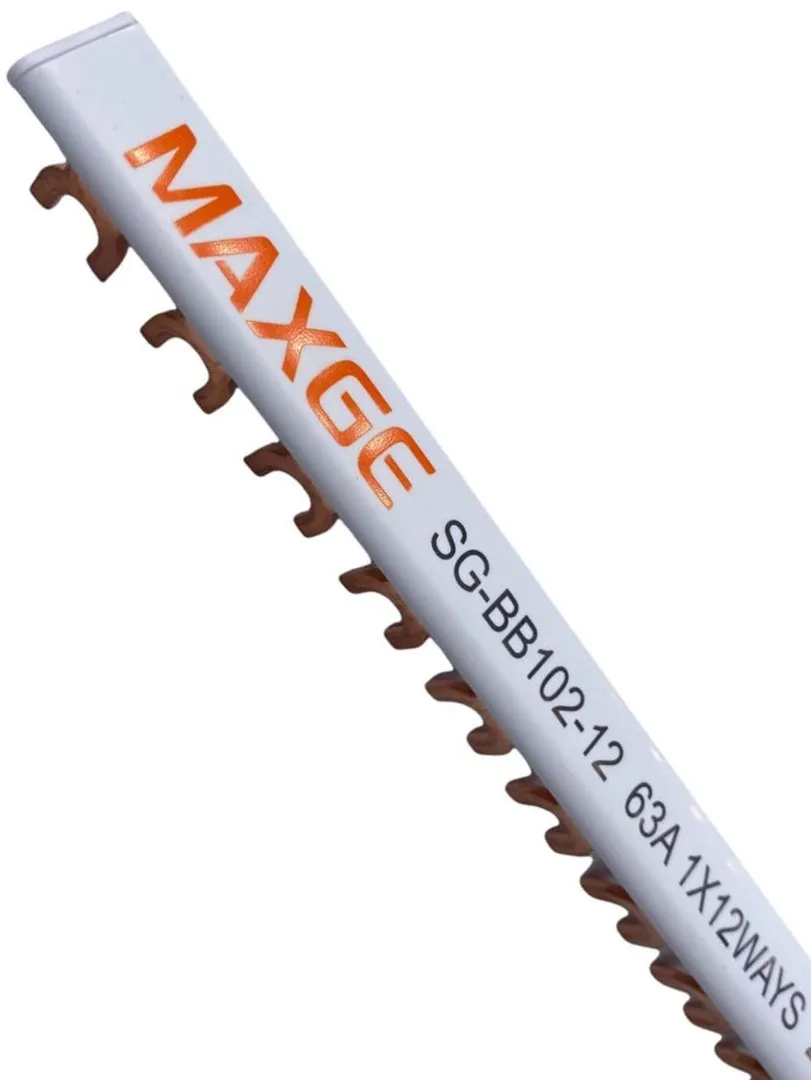

| 1-pole | 1 | up to 63 A | 10 mm² | Single-phase MCB rows, simple sub-distribution boards |

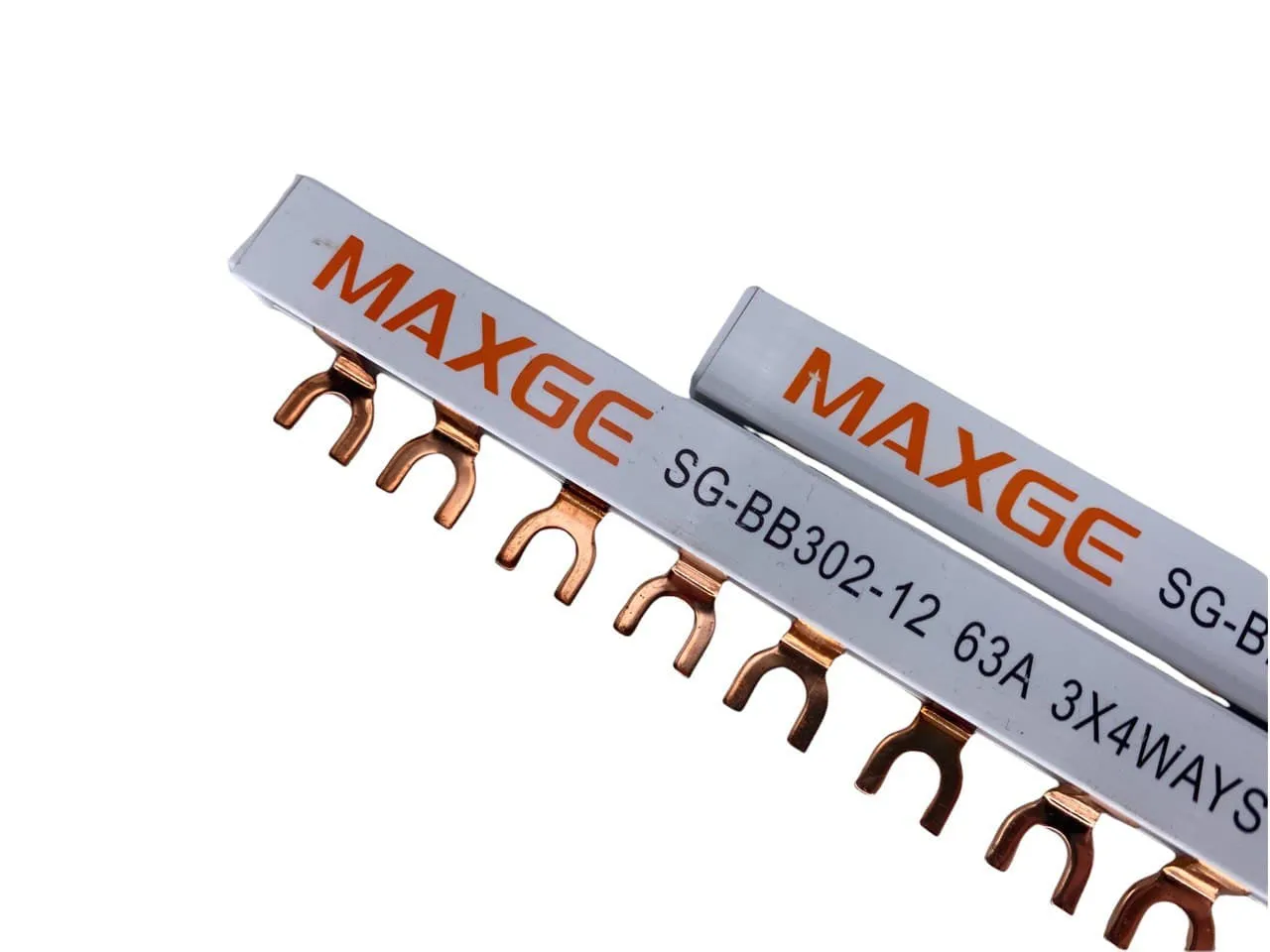

| 3-pole | 3 | up to 63 A | 10 mm² | Standard cross-wiring of MCBs/RCDs in three-phase distribution boards |
| 3-pole + Neutral | 4 | up to 80 A | 10–16 mm² | RCDs with neutral, commercial and industrial distribution boards |
| 4-pole | 4 | up to 100 A | 16 mm² | Complex installations with full phase and neutral busbar connection |
| Vertical / Horizontal | 3–4 | up to 63 A | 10 mm² | Inter-row connection of multiple DIN rails in large control panels |
Frequently Asked Questions about Phase Busbars (FAQ)
What are phase busbars and what are they used for?
Phase busbars (also called comb busbars, MCB busbars, or distribution busbars) are insulated copper conductors that electrically connect multiple miniature circuit breakers, RCDs, or other modular devices on a DIN rail. They replace time-consuming individual wiring and provide safe, standards-compliant power distribution.
Which devices are phase busbars particularly suitable for?
They are mainly used for cross-connecting MCBs, RCDs, RCBOs (combined MCB+RCD), and other modular devices in distribution boards and control panels. Special versions are available for MCB + RCD combinations.
What are the advantages of phase busbars compared to traditional wiring?
Significant time savings during installation, reduced space requirements, lower risk of wiring errors, improved clarity, and higher operational safety thanks to integrated touch protection and stable current carrying capacity.
How do I choose the right phase busbar for my distribution board?
Important factors are the number of poles (1-, 3- or 4-pole), current rating, cross-section, connection type (fork/comb or pin), and the number of modules required. Also consider whether RCDs or auxiliary contacts will be used.
Can phase busbars be cut to length?
Most phase busbars are cuttable. After cutting, always fit end caps to maintain full touch protection and prevent short-circuit risks.
Are phase busbars suitable for van or motorhome conversions?
Yes, compact 1-pole or 3-pole phase busbars are excellent for AC distribution boards in campervans, motorhomes, and commercial vehicles. They enable space-saving and safe power distribution for inverters, sockets, and other loads.
Which standards and regulations apply when using phase busbars?
Phase busbars must comply with IEC/EN 60947-1 and relevant national electrical regulations. Key aspects include sufficient clearance and creepage distances, correct incoming supply, and the use of appropriate end caps for touch protection.
Where are phase busbars commonly used in industry and construction?
In industrial switchgear, machine controls, temporary construction power distribution, and during the renovation of commercial and residential buildings. They speed up installation and increase the overall reliability of the electrical system.
