Main switch 16A 3-pole in housing
€9.90*
€11.90*
(16.81% saved)
This 16A 3-pole main switch in an enclosure is a versatile solution for safe power isolation in industrial and building technology. With a rated current of 16 A and a protection rating of IP65, it is ideal for use in demanding environments, including outdoor areas. The switch is pre-assembled in a robust polycarbonate housing that ensures maximum durability and protection against environmental influences.Technical detailsRated current (Ie): 16 A (AC-23A)Operating power:3.0 kW at 230 V (AC-3)4.0 kW at 400 V (AC-3)Number of poles: 3Protection class: IP65Material: PolycarbonateConnection cross-section: max. 1.5 - 2.5 mm²Dimensions: 80 x 101 x 101 mmStandards: VDE 0660, IEC/EN 60947-1/-3/-5-1, IEC/EN 60204-1Temperature range: -25°C to +70°CPossible applicationsThis main switch is suitable as:Emergency shutdown switch: Reliable shutdown in an emergency.Repair switch: Safe working on systems.On/off switch: Control of lighting, motors or heaters.Load-break switch: For low, medium and high voltage, including transformers and reactive current compensation.Special featuresThe padlock prevents unauthorised switching on or off.The clearly visible switch position in red/yellow makes operation easier.Flexible installationThe housing has knockouts for cable glands that allow flexible cable routing. Screw contacts ensure simple and secure connection of the cables.Safety and standardsManufactured in accordance with the latest standards such as VDE 0660 and IEC/EN 60947, the switch fulfils the highest safety and reliability requirements. This product may only be installed by qualified personnel.Additional accessoriesComplete your installation with matching cable glands in grey or black, which are available in our shop.This main switch provides you with a reliable and versatile solution for your electrical systems.
%
Main switch 32A 3-pole VDE
€17.90*
€19.80*
(9.6% saved)
This 32A 3-pole main switch in an enclosure is a versatile solution for safe power isolation in industrial and building technology. With a rated current of 32A and a protection rating of IP65, it is ideal for use in demanding environments, including outdoor areas. The switch is pre-assembled in a robust polycarbonate housing that ensures maximum durability and protection against environmental influences.Technical detailsRated current (Ie): 32 A (AC-23A)Operating power:7.5 kW at 230 V (AC-3)11 kW at 400 V (AC-3)Number of poles: 3Protection class: IP65Material: PolycarbonateConnection cross-section: max. 1.5 - 2.5 mm²Dimensions: 101 x 126 x 121 mmStandards: VDE 0660, IEC/EN 60947-1/-3/-5-1, IEC/EN 60204-1Temperature range: -25°C to +70°CPossible applicationsThis main switch is suitable as:Emergency shutdown switch: Reliable shutdown in an emergency.Repair switch: Safe working on systems.On/off switch: Control of lighting, motors or heaters.Load-break switch: For low, medium and high voltage, including transformers and reactive current compensation.Special featuresThe padlock prevents unauthorised switching on or off.The clearly visible switch position in red/yellow makes operation easier.Flexible installationThe housing has knockouts for cable glands that allow flexible cable routing. Screw contacts ensure simple and secure connection of the cables.Safety and standardsManufactured in accordance with the latest standards such as VDE 0660 and IEC/EN 60947, the switch fulfils the highest safety and reliability requirements. This product may only be installed by qualified personnel.Additional accessoriesComplete your installation with matching cable glands in grey or black, which are available in our shop.This main switch provides you with a reliable and versatile solution for your electrical systems.
%
Main switch 20A 3-pole VDE
€11.90*
€12.80*
(7.03% saved)
This 20A 3-pole main switch in an enclosure is a versatile solution for safe power isolation in industrial and building technology. With a rated current of 20 A and a protection rating of IP65, it is ideal for use in demanding environments, including outdoor areas. The switch is pre-assembled in a robust polycarbonate housing that ensures maximum durability and protection against environmental influences.Technical detailsRated current (Ie): 20 A (AC-23A)Operating power:4 kW at 230 V (AC-3)5.5 kW at 400 V (AC-3)Number of poles: 3Protection class: IP65Material: PolycarbonateConnection cross-section: max. 1.5 - 2.5 mm²Dimensions: 101 x 126 x 121 mmStandards: VDE 0660, IEC/EN 60947-1/-3/-5-1, IEC/EN 60204-1Temperature range: -25°C to +70°CPossible applicationsThis main switch is suitable as:Emergency shutdown switch: Reliable shutdown in an emergency.Repair switch: Safe working on systems.On/off switch: Control of lighting, motors or heaters.Load-break switch: For low, medium and high voltage, including transformers and reactive current compensation.Special featuresThe padlock prevents unauthorised switching on or off.The clearly visible switch position in red/yellow makes operation easier.Flexible installationThe housing has knockouts for cable glands that allow flexible cable routing. Screw contacts ensure simple and secure connection of the cables.Safety and standardsManufactured in accordance with the latest standards such as VDE 0660 and IEC/EN 60947, the switch fulfils the highest safety and reliability requirements. This product may only be installed by qualified personnel.Additional accessoriesComplete your installation with matching cable glands in grey or black, which are available in our shop.This main switch provides you with a reliable and versatile solution for your electrical systems.
Main switch 80A 3-pole VDE
€59.80*
This 80A 3-pole main switch in an enclosure is a versatile solution for safe power isolation in industrial and building technology. With a rated current of 80 A and a protection rating of IP65, it is ideal for use in demanding environments, including outdoor areas. The switch is pre-assembled in a robust polycarbonate housing that ensures maximum durability and protection against environmental influences.Technical detailsRated current (Ie): 80 A (AC-23A)Operating power:22 kW at 230 V (AC-3)30 kW at 400 V (AC-3)Number of poles: 3Protection class: IP65Material: PolycarbonateConnection cross-section: max. 1.5 - 2.5 mm²Dimensions: 160 x 240 x 166 mm ( W x H x D )Standards: VDE 0660, IEC/EN 60947-1/-3/-5-1, IEC/EN 60204-1Temperature range: -25°C to +70°CPossible applicationsThis main switch is suitable as:Emergency shutdown switch: Reliable shutdown in an emergency.Repair switch: Safe working on systems.On/off switch: Control of lighting, motors or heaters.Load-break switch: For low, medium and high voltage, including transformers and reactive current compensation.Special featuresThe padlock prevents unauthorised switching on or off.The clearly visible switch position in red/yellow makes operation easier.Flexible installationThe housing has knockouts for cable glands that allow flexible cable routing. Screw contacts ensure simple and secure connection of the cables.Safety and standardsManufactured in accordance with the latest standards such as VDE 0660 and IEC/EN 60947, the switch fulfils the highest safety and reliability requirements. This product may only be installed by qualified personnel.Additional accessoriesComplete your installation with matching cable glands in grey or black, which are available in our shop.This main switch provides you with a reliable and versatile solution for your electrical systems.
%
Main switch 25A 3-pole VDE
€13.80*
€14.49*
(4.76% saved)
This 25A 3-pole main switch in an enclosure is a versatile solution for safe power isolation in industrial and building technology. With a rated current of 25 A and a protection rating of IP65, it is ideal for use in demanding environments, including outdoor areas. The switch is pre-assembled in a robust polycarbonate housing that ensures maximum durability and protection against environmental influences.Technical detailsRated current (Ie): 25 A (AC-23A)Operating power:5.5 kW at 230 V (AC-3)7.5 kW at 400 V (AC-3)Number of poles: 3Protection class: IP65Material: PolycarbonateConnection cross-section: max. 1.5 - 2.5 mm²Dimensions: 101 x126 x 121 mmStandards: VDE 0660, IEC/EN 60947-1/-3/-5-1, IEC/EN 60204-1Temperature range: -25°C to +70°CPossible applicationsThis main switch is suitable as:Emergency shutdown switch: Reliable shutdown in an emergency.Repair switch: Safe working on systems.On/off switch: Control of lighting, motors or heaters.Load-break switch: For low, medium and high voltage, including transformers and reactive current compensation.Special featuresThe padlock prevents unauthorised switching on or off.The clearly visible switch position in red/yellow makes operation easier.Flexible installationThe housing has knockouts for cable glands that allow flexible cable routing. Screw contacts ensure simple and secure connection of the cables.Safety and standardsManufactured in accordance with the latest standards such as VDE 0660 and IEC/EN 60947, the switch fulfils the highest safety and reliability requirements. This product may only be installed by qualified personnel.Additional accessoriesComplete your installation with matching cable glands in grey or black, which are available in our shop.This main switch provides you with a reliable and versatile solution for your electrical systems.
%

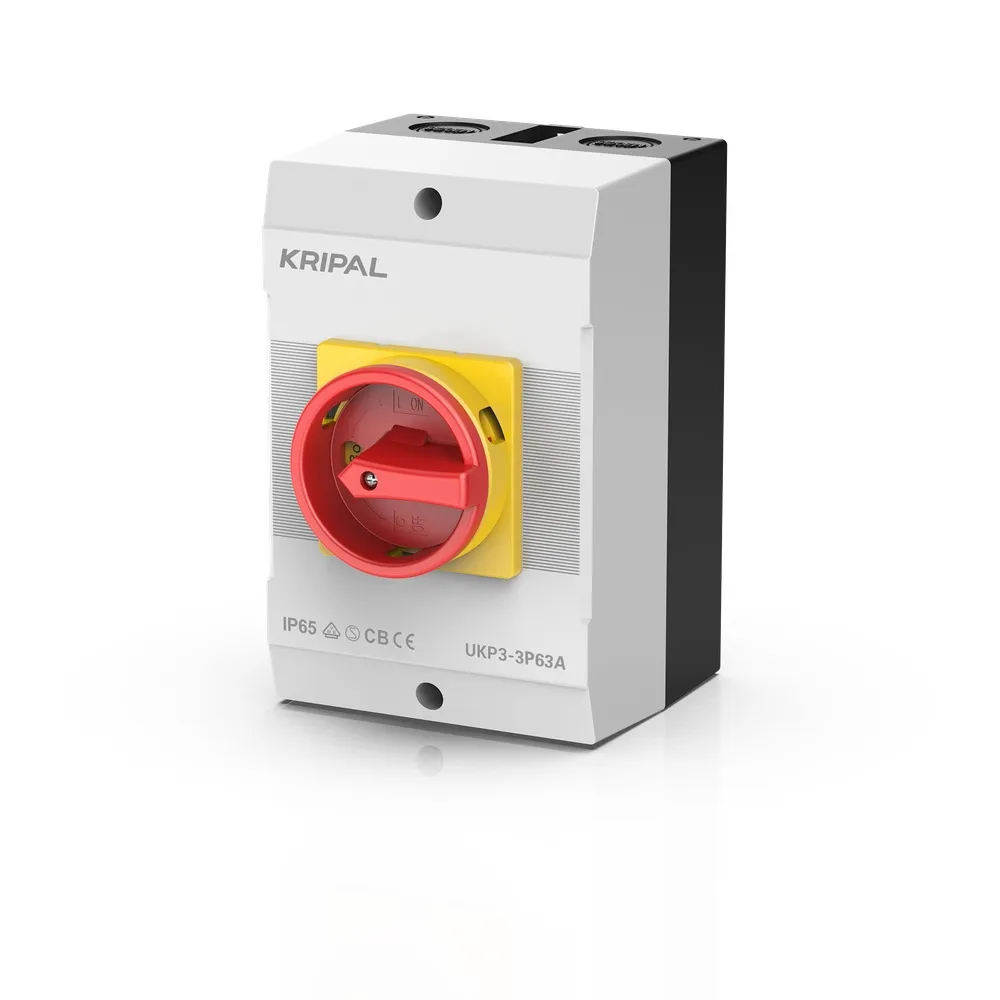

Main switch 63A 3-pole VDE
€38.10*
€44.80*
(14.96% saved)
This 63A 3-pole main switch in an enclosure is a versatile solution for safe power isolation in industrial and building technology. With a rated current of 63A and a protection rating of IP65, it is ideal for use in demanding environments, including outdoor areas. The switch is pre-assembled in a robust polycarbonate housing that ensures maximum durability and protection against environmental influences.Technical detailsRated current (Ie): 63 A (AC-23A)Operating power:18.5 kW at 230 V (AC-3)22 kW at 400 V (AC-3)Number of poles: 3Protection class: IP65Material: PolycarbonateConnection cross-section: max. 1.5 - 2.5 mm²Dimensions: 116 x 176 x 136 mmStandards: VDE 0660, IEC/EN 60947-1/-3/-5-1, IEC/EN 60204-1Temperature range: -25°C to +70°CPossible applicationsThis main switch is suitable as:Emergency shutdown switch: Reliable shutdown in an emergency.Repair switch: Safe working on systems.On/off switch: Control of lighting, motors or heaters.Load-break switch: For low, medium and high voltage, including transformers and reactive current compensation.Special featuresThe padlock prevents unauthorised switching on or off.The clearly visible switch position in red/yellow makes operation easier.Flexible installationThe housing has knockouts for cable glands that allow flexible cable routing. Screw contacts ensure simple and secure connection of the cables.Safety and standardsManufactured in accordance with the latest standards such as VDE 0660 and IEC/EN 60947, the switch fulfils the highest safety and reliability requirements. This product may only be installed by qualified personnel.Additional accessoriesComplete your installation with matching cable glands in grey or black, which are available in our shop.This main switch provides you with a reliable and versatile solution for your electrical systems.
%
Main switch 40A 3-pole VDE
€23.80*
€24.89*
(4.38% saved)
This 40A 3-pole main switch in an enclosure is a versatile solution for safe power isolation in industrial and building technology. With a rated current of 40 A and a protection rating of IP65, it is ideal for use in demanding environments, including outdoor areas. The switch is pre-assembled in a robust polycarbonate housing that ensures maximum durability and protection against environmental influences.Technical detailsRated current (Ie): 40 A (AC-23A)Operating power:11 kW at 230 V (AC-3)15 kW at 400 V (AC-3)Number of poles: 3Protection class: IP65Material: PolycarbonateConnection cross-section: max. 1.5 - 2.5 mm²Dimensions: 116 x 176 x 136 mmStandards: VDE 0660, IEC/EN 60947-1/-3/-5-1, IEC/EN 60204-1Temperature range: -25°C to +70°CPossible applicationsThis main switch is suitable as:Emergency shutdown switch: Reliable shutdown in an emergency.Repair switch: Safe working on systems.On/off switch: Control of lighting, motors or heaters.Load-break switch: For low, medium and high voltage, including transformers and reactive current compensation.Special featuresThe padlock prevents unauthorised switching on or off.The clearly visible switch position in red/yellow makes operation easier.Flexible installationThe housing has knockouts for cable glands that allow flexible cable routing. Screw contacts ensure simple and secure connection of the cables.Safety and standardsManufactured in accordance with the latest standards such as VDE 0660 and IEC/EN 60947, the switch fulfils the highest safety and reliability requirements. This product may only be installed by qualified personnel.Additional accessoriesComplete your installation with matching cable glands in grey or black, which are available in our shop.This main switch provides you with a reliable and versatile solution for your electrical systems.
%

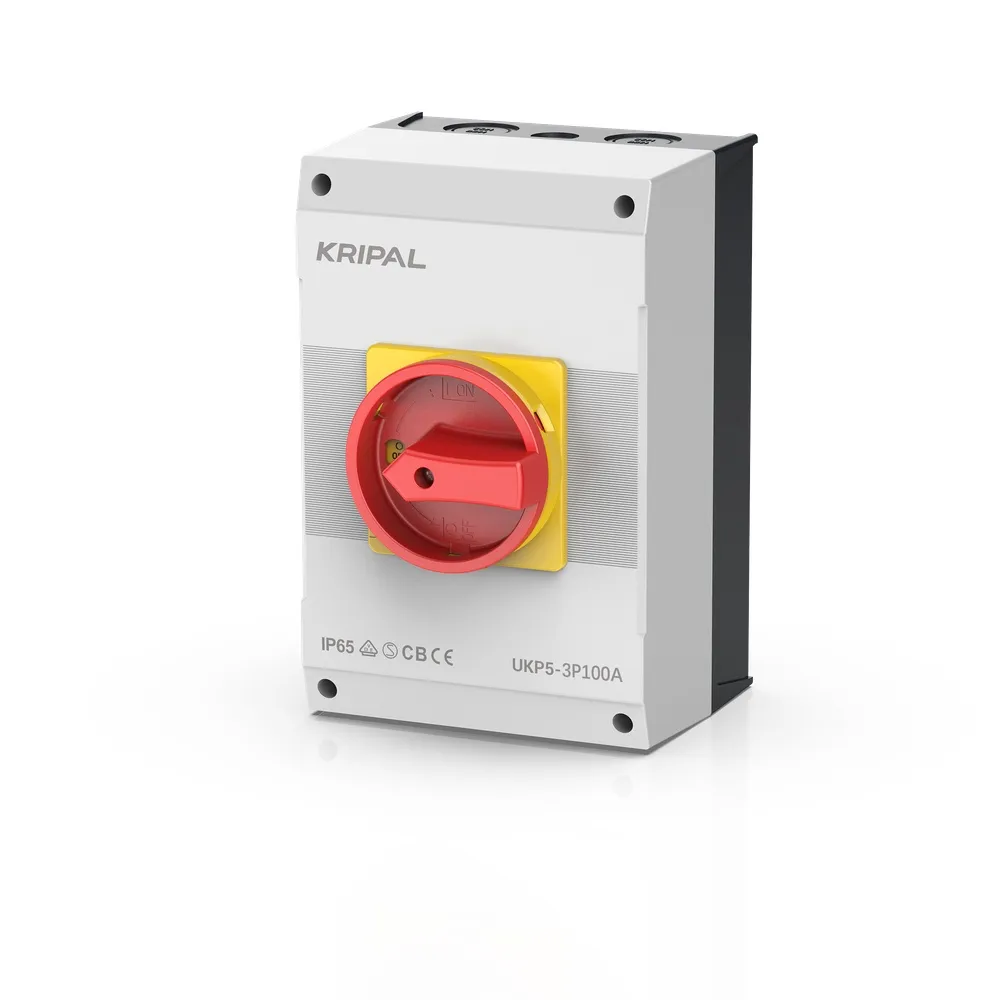

Main switch 100A 3-pole VDE
€59.90*
€64.80*
(7.56% saved)
This 100A 3-pole main switch in an enclosure is a versatile solution for safe power isolation in industrial and building technology. With a rated current of 100 A and a protection rating of IP65, it is ideal for use in demanding environments, including outdoor areas. The switch is pre-assembled in a robust polycarbonate housing that ensures maximum durability and protection against environmental influences.Technical detailsRated current (Ie): 100 A (AC-23A)Operating power:30 kW at 230 V (AC-3)37 kW at 400 V (AC-3)Number of poles: 3Protection class: IP65Material: PolycarbonateConnection cross-section: max. 1.5 - 2.5 mm²Dimensions: 160 x 240 x 166 mm ( W x H x D )Standards: VDE 0660, IEC/EN 60947-1/-3/-5-1, IEC/EN 60204-1Temperature range: -25°C to +70°CPossible applicationsThis main switch is suitable as:Emergency shutdown switch: Reliable shutdown in an emergency.Repair switch: Safe working on systems.On/off switch: Control of lighting, motors or heaters.Load-break switch: For low, medium and high voltage, including transformers and reactive current compensation.Special featuresThe padlock prevents unauthorised switching on or off.The clearly visible switch position in red/yellow makes operation easier.Flexible installationThe housing has knockouts for cable glands that allow flexible cable routing. Screw contacts ensure simple and secure connection of the cables.Safety and standardsManufactured in accordance with the latest standards such as VDE 0660 and IEC/EN 60947, the switch fulfils the highest safety and reliability requirements. This product may only be installed by qualified personnel.Additional accessoriesComplete your installation with matching cable glands in grey or black, which are available in our shop.This main switch provides you with a reliable and versatile solution for your electrical systems.
5% discount for orders over €5000
Subscribe to the newsletter to receive the latest discount codes.Free shipping to Germany
for orders over €500
Free shipping to Austria, Belgium and Netherlands
for orders over €1000
3-Pole Main Switch – Heavy-Duty 3-Phase Disconnect Switches for Safe Power Isolation in Industrial, Commercial & Professional Installations
The 3-pole main switch (also known as 3-pole disconnect switch or 3P load break switch) is the professional choice for reliable all-pole isolation of three-phase 400V systems. Designed to safely switch L1, L2, and L3 simultaneously, it meets strict IEC/EN 60947-3 and VDE standards. Ideal for electrical contractors, construction companies, renovation projects, industrial facilities, research labs, and van conversions.
What is a 3-Pole Main Switch and Why Choose 3-Pole?
A 3-pole main switch provides complete disconnection of the three live phases (L1, L2, L3) in a three-phase network while leaving the neutral (N) uninterrupted. It is the most common and cost-effective solution for TN networks in Germany and across Europe. Popular variants include 16A 3-pole main switch, 32A 3-pole main switch, and 63A 3-pole main switch – perfect for a wide range of professional applications.
Key Benefits of 3-Pole Main Switches for Professionals
- Full Compliance & Safety: Certified according to IEC/EN 60947-3, VDE 0660 and machinery directive – visible ON/OFF position and optional padlockable handle.
- Rugged Construction: IP65 surface-mounted versions in robust polycarbonate enclosures with cable glands for dust and water protection.
- Versatile Use: Functions as main switch, repair switch, emergency stop (when approved), or control switch in panels and machines.
- Cable & System Protection: Enables safe isolation of high-quality power cables (NYY-J, H07RN-F, etc.), preventing dangerous voltage during maintenance and protecting expensive cabling in 400V installations.
Applications: Where 3-Pole Main Switches Are Essential
3-pole main switches are widely used wherever safe, all-pole disconnection of three-phase power is required:
- Industrial & Machinery: Main isolator for motors, drives, production lines, and test benches – prevents dangerous run-on during servicing.
- Electrical Contractors & Installers: In main distribution boards, sub-distribution panels, and control cabinets for fast and safe isolation.
- Construction & Renovation Companies: Perfect for site distribution boards and temporary power supplies on building sites (IP65 rating withstands harsh conditions).
- Research Centers & Laboratories: Reliable isolation for experimental setups and test equipment.
- Van Conversion & Campervan Builds: Safe disconnection of the 400V shore power (CEE connection) to protect onboard electrics and cabling during maintenance or storage.
- Commercial & Industrial Facilities: Workshops, warehouses, and production halls for central power isolation.
When paired with high-quality cables and flexible cords, a 3-pole main switch significantly increases the overall safety and longevity of your electrical installation.
Comparison Table: Popular 3-Pole Main Switches
| Rated Current | AC-3 Power (400V) | Typical Applications | Enclosure / Mounting |
|---|---|---|---|
| 16 A | approx. 4 – 7.5 kW | Small machines, lighting, control circuits, campervan shore power | IP65 surface or DIN-rail |
| 25 – 32 A | approx. 11 – 15 kW | Medium motors, workshops, construction power distributors | IP65 / DIN-rail |
| 40 – 63 A | approx. 15 – 22 kW | Industrial plants, large distribution boards, renovation projects | IP65 lockable enclosure |
| 80 – 100 A | approx. 30 – 37 kW | Heavy industrial installations, commercial buildings | DIN-rail or enclosure |
Frequently Asked Questions (FAQ) – 3-Pole Main Switches
What is the difference between a 3-pole and a 4-pole main switch?
A 3-pole main switch disconnects only the three phases (L1, L2, L3). A 4-pole version also switches the neutral conductor (N) and is typically used in TT networks or when complete galvanic isolation is required.
Which 3-pole main switch should I choose – 16A, 32A or 63A?
Choose based on load: 16A for smaller consumers and campervans, 32A for medium machinery and site power, 63A and above for larger industrial equipment and distribution panels. Always check the AC-3 rating at 400V.
What does the wiring diagram of a 3-pole main switch look like?
The three phases are routed from input terminals (1/L1, 3/L2, 5/L3) to output terminals (2/T1, 4/T2, 6/T3). The neutral and protective earth (PE) are usually looped through. Detailed diagrams are provided in the product datasheets.
Can a 3-pole main switch be used as an emergency stop?
Yes – many models with a red handle and yellow surround are approved for emergency stop (E-stop) and repair switch functions according to the Machinery Directive.
Why is a 3-pole main switch recommended for van conversions?
It allows safe isolation of the entire 400V shore power supply (CEE plug), protecting the onboard cabling and electrical system during maintenance or when the vehicle is not in use.
Are these 3-pole main switches VDE certified and suitable for outdoor use?
All switches we offer are VDE-tested. IP65 enclosure versions are dust-tight and protected against water jets, making them suitable for outdoor and industrial environments (operating temperature typically –25 °C to +70 °C).
Where are 3-pole main switches typically installed?
Common locations include main distribution boards, sub-distribution panels, machine control panels, control cabinets, and surface-mounted enclosures with cable glands. Installation must always be carried out by a qualified electrician.
