H07RN-F Rubber Cable: Ultimate Buyer’s Guide & H07RNF Comparison

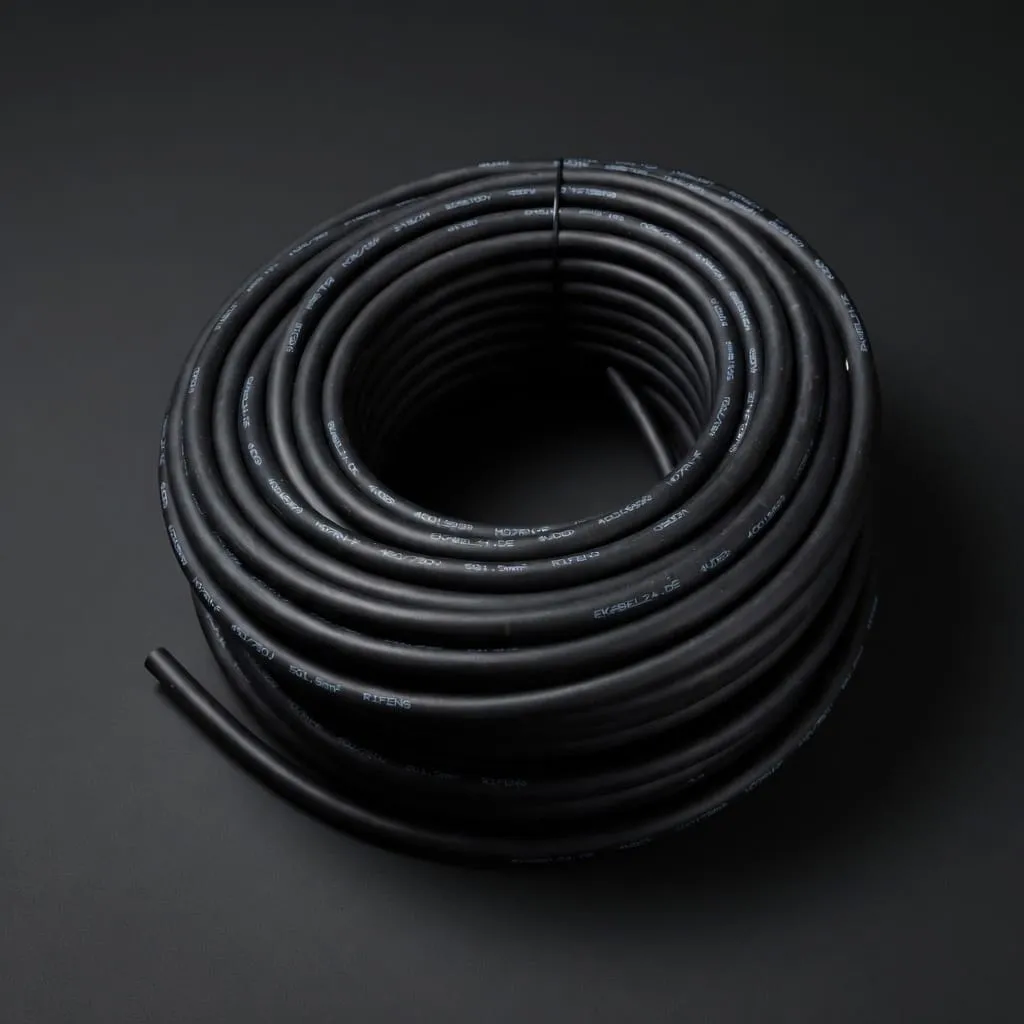

The H07RN-F (also written as H07RNF) is a heavy-duty, highly flexible rubber hose cable designed for demanding applications in outdoor environments, construction sites, and industrial settings. It offers excellent mechanical strength, oil resistance, UV resistance, and weatherproof performance.
In this comprehensive pillar article, you will learn everything you need to know: the exact meaning of the designation, technical specifications, typical applications, comparisons with similar cable types, and what to consider when buying.
Browse all H07RN-F Rubber Cables
What Does H07RN-F Mean? – Decoding the Cable Designation
The harmonized European designation H07RN-F reveals all key properties at a glance:
- H = Harmonized European cable (EN 50525-2-21 / VDE 0282)
- 07 = Rated voltage 450/750 V
- R = EPR rubber insulation
- N = Neoprene (Polychloroprene) outer sheath
- -F = Fine-stranded flexible copper conductors (Class 5)
H07RNF is exactly the same cable — only written without hyphens. It is the heavy-duty version of rubber hose cables (compared to the lighter H05RN-F).
Technical Specifications
| Property | Value / Description | Standard |
|---|---|---|
| Rated Voltage | 450/750 V | EN 50525-2-21 |
| Conductor | Fine-stranded copper, Class 5 | VDE 0295 |
| Insulation | EPR rubber | EI4 |
| Sheath | Neoprene (CR) | EM2 – oil, UV & ozone resistant |
| Temperature Range (fixed) | -30 °C to +60 °C | – |
| Temperature Range (flexing) | -25 °C to +60 °C | – |
| Minimum Bending Radius | 4 × outer diameter | EN 50565-1 |
| Flame Retardant | Yes | IEC 60332-1-2 |
| CPR Class | Eca | EN 50575 |
Typical Applications of H07RN-F Rubber Cable
- Construction sites and temporary power supply
- Industrial machinery and power tools
- Agricultural equipment
- Extension cables for outdoor use
- Damp and wet environments
- Surface mounting on walls or machines
Important Notes: The cable is fully UV-resistant and excellent for outdoor use. Direct burial in soil without protection is not permitted.
Related products:
H07RN-F vs H07RNF and Comparison with Other Types
H07RN-F and H07RNF are identical — only the writing style differs.
| Cable Type | Rated Voltage | Sheath | Mechanical Strength | Typical Use | UV / Oil Resistance |
|---|---|---|---|---|---|
| H07RN-F | 450/750 V | Neoprene | Heavy | Industry, Construction, Outdoor | Excellent |
| H05RN-F | 300/500 V | Neoprene | Medium | Light tools | Good |
| H07VV-F / H05VV-F | 300/500 V or 450/750 V | PVC | Light to Medium | Indoor use | Limited |
| H07BQ-F | 450/750 V | PUR | Heavy | Highly flexible applications | Excellent |
Buyer’s Guide: How to Choose the Right H07RN-F
1. Number of Cores
- 3G… → Single-phase with earth
- 4G / 5G → Three-phase
- Multi-core with numbered cores
2. Cross-Section Selection (Popular Sizes)
Frequently Asked Questions (FAQ) about H07RN-F
What does H07RN-F exactly mean?
Harmonized heavy-duty rubber hose cable, 450/750 V, with EPR insulation and Neoprene sheath.
Is H07RN-F suitable for outdoor use?
Yes – fully UV-resistant, weatherproof, and approved for wet locations.
Can H07RN-F be buried directly in the ground?
No. It must be installed in protective conduits or protected installations only.
What is the current-carrying capacity?
Depends on cross-section, installation method, and ambient temperature (according to VDE 0298-4).
What is the difference between H07RN-F and H05RN-F?
H07RN-F has higher voltage rating (450/750 V) and is designed for heavier mechanical stress.
Is H07RN-F oil resistant?
Yes, the Neoprene sheath provides good resistance to oils and greases.
What color is the sheath?
Standard color is black.
Where can I buy H07RN-F cable?
As cut-to-length meterware at ekabel24.de/en.
Last updated: May 2026. All technical data based on current standards. For project planning, always consult the latest norms and a qualified electrician.
