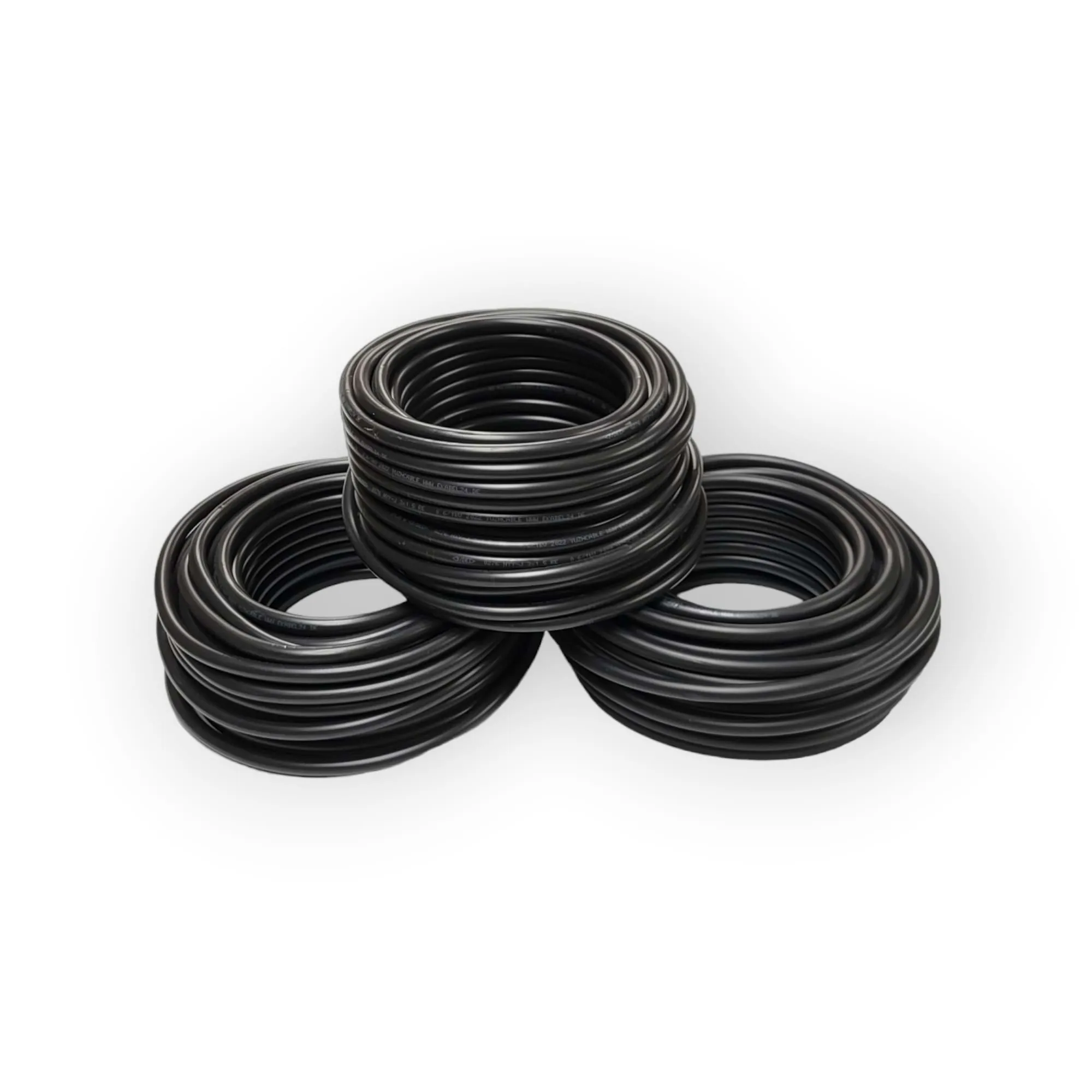

Underground cable NYY-J 1x16 mm² RE by the metre
By the metre! No cutting costs! Exchanges or returns are not possible for customised products. Max. 250m!
- By the metre ring NYY-J 1x16 RE PVC power cable according to DIN
- Conductor material: CU, bare
- Outer diameter: approx. 16 mm
- Conductor class: class 1 (solid)
- Number of cores: 1
- Core labelling: according to VDE 0293
- Conductor nominal cross-section: 16 mm²
- Sheath colour: black
- Flame retardancy: according to VDE 0482-332-1-2/IEC 60332-1
- Permissible operating temperature: at conductor 70°C
- Permissible external cable temperature in fixed installation: +70°C
- Permissible external cable temperature in motion: -5 - +70 °C
- Rated voltage: u0/u 0.6/1 kV
- Test voltage: 4 kV
