4-pole

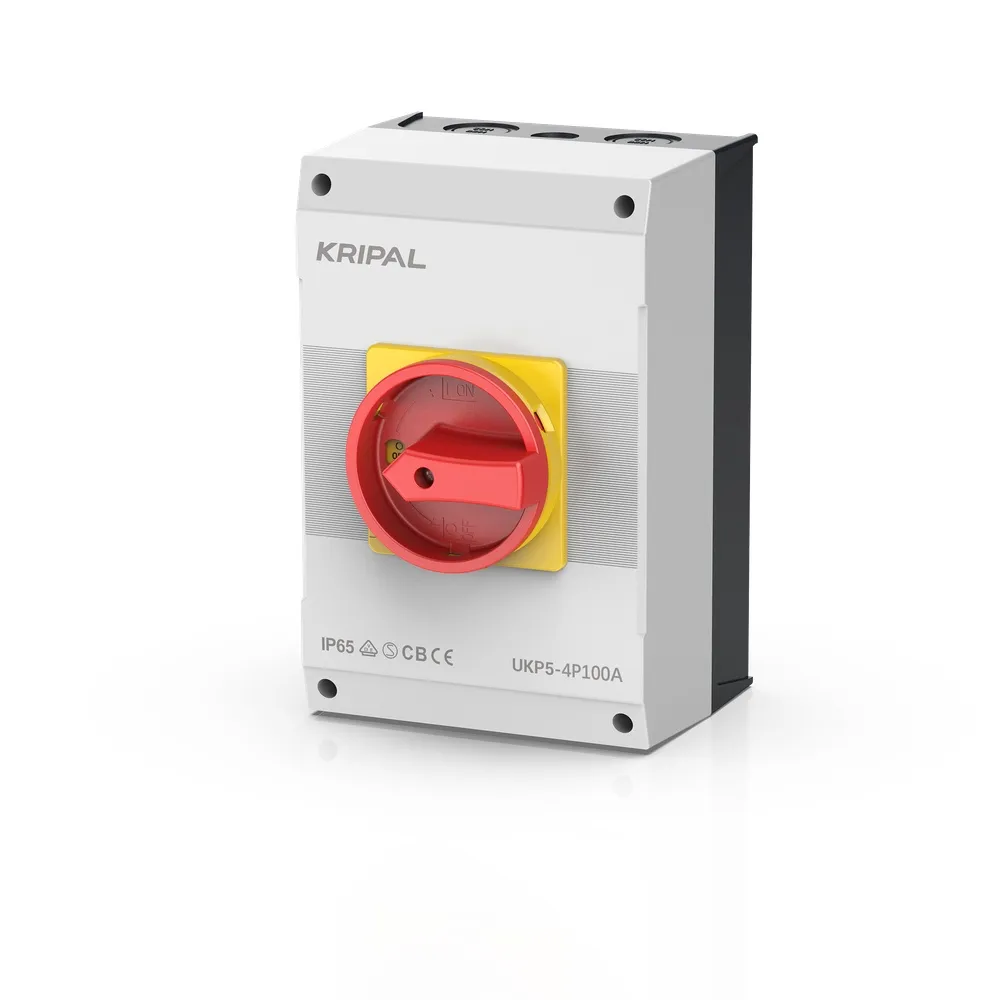

This 100A 4-pole main switch in an enclosure is a versatile solution for safe power isolation in industrial and building technology. With a rated current of 100 A and a protection rating of IP65, it is ideal for use in demanding environments, including outdoor areas. The switch is pre-assembled in a robust polycarbonate housing that ensures maximum durability and protection against environmental influences.Technical detailsRated current (Ie): 100 A (AC-23A)Operating power:30 kW at 230 V (AC-3)37 kW at 400 V (AC-3)Number of poles: 4Protection class: IP65Material: PolycarbonateConnection cross-section: max. 1.5 - 2.5 mm²Dimensions: 160 x 240 x 166 mm ( W x H x D )Standards: VDE 0660, IEC/EN 60947-1/-3/-5-1, IEC/EN 60204-1Temperature range: -25°C to +70°CPossible applicationsThis main switch is suitable as:Emergency shutdown switch: Reliable shutdown in an emergency.Repair switch: Safe working on systems.On/off switch: Control of lighting, motors or heaters.Load-break switch: For low, medium and high voltage, including transformers and reactive current compensation.Special featuresThe padlock prevents unauthorised switching on or off.The clearly visible switch position in red/yellow makes operation easier.Flexible installationThe housing has knockouts for cable glands that allow flexible cable routing. Screw contacts ensure simple and secure connection of the cables.Safety and standardsManufactured in accordance with the latest standards such as VDE 0660 and IEC/EN 60947, the switch fulfils the highest safety and reliability requirements. This product may only be installed by qualified personnel.Additional accessoriesComplete your installation with matching cable glands in grey or black, which are available in our shop.This main switch provides you with a reliable and versatile solution for your electrical systems.

This 16A 4-pole main switch in an enclosure is a versatile solution for safe power isolation in industrial and building technology. With a rated current of 16 A and a protection rating of IP65, it is ideal for use in demanding environments, including outdoor areas. The switch is pre-assembled in a robust polycarbonate housing that ensures maximum durability and protection against environmental influences.Technical detailsRated current (Ie): 16 A (AC-23A)Operating power:3.0 kW at 230 V (AC-3)4.0 kW at 400 V (AC-3)Number of poles: 4Protection class: IP65Material: PolycarbonateConnection cross-section: max. 1.5 - 2.5 mm²Dimensions: 80 x 101 x 101 mmStandards: VDE 0660, IEC/EN 60947-1/-3/-5-1, IEC/EN 60204-1Temperature range: -25°C to +70°CPossible applicationsThis main switch is suitable as:Emergency shutdown switch: Reliable shutdown in an emergency.Repair switch: Safe working on systems.On/off switch: Control of lighting, motors or heaters.Load-break switch: For low, medium and high voltage, including transformers and reactive current compensation.Special featuresThe padlock prevents unauthorised switching on or off.The clearly visible switch position in red/yellow makes operation easier.Flexible installationThe housing has knockouts for cable glands that allow flexible cable routing. Screw contacts ensure simple and secure connection of the cables.Safety and standardsManufactured in accordance with the latest standards such as VDE 0660 and IEC/EN 60947, the switch fulfils the highest safety and reliability requirements. This product may only be installed by qualified personnel.Additional accessoriesComplete your installation with matching cable glands in grey or black, which are available in our shop.This main switch provides you with a reliable and versatile solution for your electrical systems.

This 20A 4-pole main switch in an enclosure is a versatile solution for safe power isolation in industrial and building technology. With a rated current of 20A and a protection rating of IP65, it is ideal for use in demanding environments, including outdoor areas. The switch is pre-assembled in a robust polycarbonate housing that ensures maximum durability and protection against environmental influences.Technical detailsRated current (Ie): 32 A (AC-23A)Operating power:4 kW at 230 V (AC-3)5.5 kW at 400 V (AC-3)Number of poles: 4Protection class: IP65Material: PolycarbonateConnection cross-section: max. 1.5 - 2.5 mm²Dimensions: 101 x 126 x 121 mmStandards: VDE 0660, IEC/EN 60947-1/-3/-5-1, IEC/EN 60204-1Temperature range: -25°C to +70°CPossible applicationsThis main switch is suitable as:Emergency shutdown switch: Reliable shutdown in an emergency.Repair switch: Safe working on systems.On/off switch: Control of lighting, motors or heaters.Load-break switch: For low, medium and high voltage, including transformers and reactive current compensation.Special featuresThe padlock prevents unauthorised switching on or off.The clearly visible switch position in red/yellow makes operation easier.Flexible installationThe housing has knockouts for cable glands that allow flexible cable routing. Screw contacts ensure simple and secure connection of the cables.Safety and standardsManufactured in accordance with the latest standards such as VDE 0660 and IEC/EN 60947, the switch fulfils the highest safety and reliability requirements. This product may only be installed by qualified personnel.Additional accessoriesComplete your installation with matching cable glands in grey or black, which are available in our shop.This main switch provides you with a reliable and versatile solution for your electrical systems.

This 25A 4-pole main switch in an enclosure is a versatile solution for safe power isolation in industrial and building technology. With a rated current of 25A and a protection rating of IP65, it is ideal for use in demanding environments, including outdoor areas. The switch is pre-assembled in a robust polycarbonate housing that ensures maximum durability and protection against environmental influences.Technical detailsRated current (Ie): 25 A (AC-23A)Operating power:5.5 kW at 230 V (AC-3)7 kW at 400 V (AC-3)Number of poles: 4Protection class: IP65Material: PolycarbonateConnection cross-section: max. 1.5 - 2.5 mm²Dimensions: 101 x 126 x 121 mmStandards: VDE 0660, IEC/EN 60947-1/-3/-5-1, IEC/EN 60204-1Temperature range: -25°C to +70°CPossible applicationsThis main switch is suitable as:Emergency shutdown switch: Reliable shutdown in an emergency.Repair switch: Safe working on systems.On/off switch: Control of lighting, motors or heaters.Load-break switch: For low, medium and high voltage, including transformers and reactive current compensation.Special featuresThe padlock prevents unauthorised switching on or off.The clearly visible switch position in red/yellow makes operation easier.Flexible installationThe housing has knockouts for cable glands that allow flexible cable routing. Screw contacts ensure simple and secure connection of the cables.Safety and standardsManufactured in accordance with the latest standards such as VDE 0660 and IEC/EN 60947, the switch fulfils the highest safety and reliability requirements. This product may only be installed by qualified personnel.Additional accessoriesComplete your installation with matching cable glands in grey or black, which are available in our shop.This main switch provides you with a reliable and versatile solution for your electrical systems.

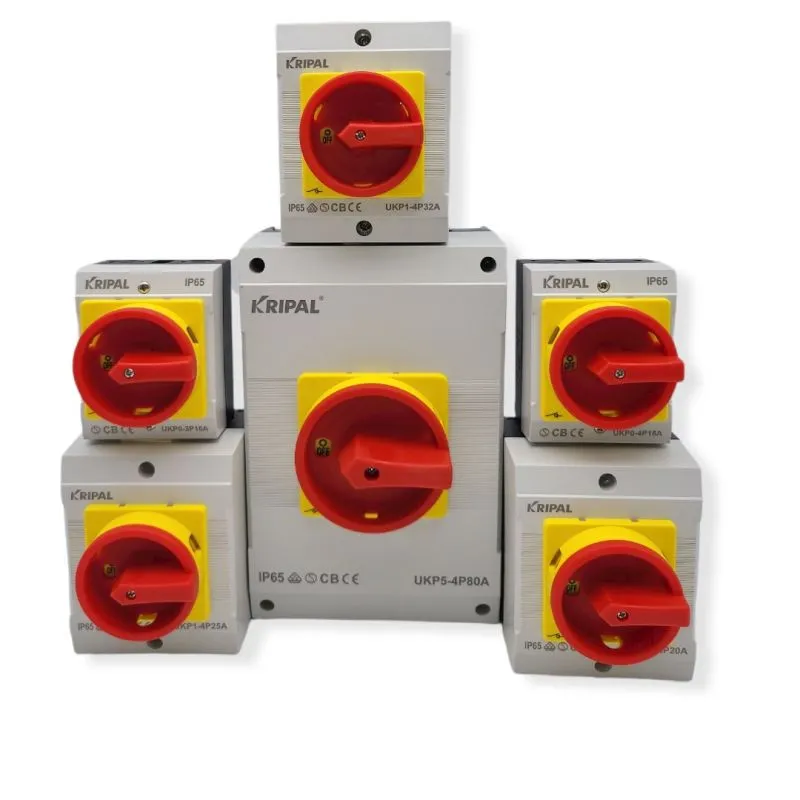

Main switch with housing, repair switch load-break switch emergency stop switch:Connection: 3-pole, 4-poleRated current: 16 A, 20A, 25A, 32A, 40A, 63A, 80A, 100AAmbient temperature: -5°C to +40°CHousing protection class IP 65Rated operating voltage: 230 - 440 VRated insulation voltage: 690 VVDE certification (from 20A) in accordance with DIN EN 60947-1, 60947-3, 60947-3 Correction 1. identification no. 40045826Product name Main switchEnclosure frame UKP0 UKP1 UKP3 UKP5Rated current 10A 16A 20A 20A 25A 32A 32A 40A 50A 63A 63A 80A 100ANumber of poles 3/4Rated insulation voltage (V) 690VRated operating current (A) 10 16 20 20 25 32 32 32 40 50 63 63 80 100AC-23A 10 16 20 20 25 32 32 40 50 63 63 80 100AC-3 8 10 16 16 20 25 25 32 40 50 50 63 63 80Nominal voltage (UE) 440VRated power control (KW) 3 4 5.5 5.5 7.5 11 11 15 18 22 22 30 37AC-23A 3 4 5.5 5.5 5.5 7.5 11 11 15 18 22 22 30 37AC-3 2.2 3 4 4 5.5 7.5 7.5 11 15 18.5 18.5 22 30Rated short-time withstand current (Icw) 320A 320A 320A 320A 500A 500A 500A 800A 800A 800A 800A 2000A 2000A 2000ACable connection (qmm) 1.5 2.5 2.5 2.5 4 6 6 10 10 16 16 25 35Screw torque (Nm) 0.8 0.8 0.8 0.8 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 2 2 2

This 32A 4-pole main switch in an enclosure is a versatile solution for safe power isolation in industrial and building technology. With a rated current of 32A and a protection rating of IP65, it is ideal for use in demanding environments, including outdoor areas. The switch is pre-assembled in a robust polycarbonate housing that ensures maximum durability and protection against environmental influences.Technical detailsRated current (Ie): 32 A (AC-23A)Operating power:7.5 kW at 230 V (AC-3)11 kW at 400 V (AC-3)Number of poles: 4Protection class: IP65Material: PolycarbonateConnection cross-section: max. 1.5 - 2.5 mm²Dimensions: 101 x 126 x 121 mmStandards: VDE 0660, IEC/EN 60947-1/-3/-5-1, IEC/EN 60204-1Temperature range: -25°C to +70°CPossible applicationsThis main switch is suitable as:Emergency shutdown switch: Reliable shutdown in an emergency.Repair switch: Safe working on systems.On/off switch: Control of lighting, motors or heaters.Load-break switch: For low, medium and high voltage, including transformers and reactive current compensation.Special featuresThe padlock prevents unauthorised switching on or off.The clearly visible switch position in red/yellow makes operation easier.Flexible installationThe housing has knockouts for cable glands that allow flexible cable routing. Screw contacts ensure simple and secure connection of the cables.Safety and standardsManufactured in accordance with the latest standards such as VDE 0660 and IEC/EN 60947, the switch fulfils the highest safety and reliability requirements. This product may only be installed by qualified personnel.Additional accessoriesComplete your installation with matching cable glands in grey or black, which are available in our shop.This main switch provides you with a reliable and versatile solution for your electrical systems.

This 40A 4-pole main switch in an enclosure is a versatile solution for safe power isolation in industrial and building technology. With a rated current of 40 A and a protection rating of IP65, it is ideal for use in demanding environments, including outdoor areas. The switch is pre-assembled in a robust polycarbonate housing that ensures maximum durability and protection against environmental influences.Technical detailsRated current (Ie): 40 A (AC-23A)Operating power:11 kW at 230 V (AC-3)15 kW at 400 V (AC-3)Number of poles: 4Protection class: IP65Material: PolycarbonateConnection cross-section: max. 1.5 - 2.5 mm²Dimensions: 116 x 176 x 136 mm ( W x H x D )Standards: VDE 0660, IEC/EN 60947-1/-3/-5-1, IEC/EN 60204-1Temperature range: -25°C to +70°CPossible applicationsThis main switch is suitable as:Emergency shutdown switch: Reliable shutdown in an emergency.Repair switch: Safe working on systems.On/off switch: Control of lighting, motors or heaters.Load-break switch: For low, medium and high voltage, including transformers and reactive current compensation.Special featuresThe padlock prevents unauthorised switching on or off.The clearly visible switch position in red/yellow makes operation easier.Flexible installationThe housing has knockouts for cable glands that allow flexible cable routing. Screw contacts ensure simple and secure connection of the cables.Safety and standardsManufactured in accordance with the latest standards such as VDE 0660 and IEC/EN 60947, the switch fulfils the highest safety and reliability requirements. This product may only be installed by qualified personnel.Additional accessoriesComplete your installation with matching cable glands in grey or black, which are available in our shop.This main switch provides you with a reliable and versatile solution for your electrical systems.

This 63A 4-pole main switch in an enclosure is a versatile solution for safe power isolation in industrial and building technology. With a rated current of 63 A and a protection rating of IP65, it is ideal for use in demanding environments, including outdoor areas. The switch is pre-assembled in a robust polycarbonate housing that ensures maximum durability and protection against environmental influences.Technical detailsRated current (Ie): 63 A (AC-23A)Operating power:18.5 kW at 230 V (AC-3)22 kW at 400 V (AC-3)Number of poles: 4Protection class: IP65Material: PolycarbonateConnection cross-section: max. 1.5 - 2.5 mm²Dimensions: 116 x 176 x 136 mm ( W x H x D )Standards: VDE 0660, IEC/EN 60947-1/-3/-5-1, IEC/EN 60204-1Temperature range: -25°C to +70°CPossible applicationsThis main switch is suitable as:Emergency shutdown switch: Reliable shutdown in an emergency.Repair switch: Safe working on systems.On/off switch: Control of lighting, motors or heaters.Load-break switch: For low, medium and high voltage, including transformers and reactive current compensation.Special featuresThe padlock prevents unauthorised switching on or off.The clearly visible switch position in red/yellow makes operation easier.Flexible installationThe housing has knockouts for cable glands that allow flexible cable routing. Screw contacts ensure simple and secure connection of the cables.Safety and standardsManufactured in accordance with the latest standards such as VDE 0660 and IEC/EN 60947, the switch fulfils the highest safety and reliability requirements. This product may only be installed by qualified personnel.Additional accessoriesComplete your installation with matching cable glands in grey or black, which are available in our shop.This main switch provides you with a reliable and versatile solution for your electrical systems.

This 80A 4-pole main switch in an enclosure is a versatile solution for safe power isolation in industrial and building technology. With a rated current of 80 A and a protection rating of IP65, it is ideal for use in demanding environments, including outdoor areas. The switch is pre-assembled in a robust polycarbonate housing that ensures maximum durability and protection against environmental influences.Technical detailsRated current (Ie): 80 A (AC-23A)Operating power:22 kW at 230 V (AC-3)30 kW at 400 V (AC-3)Number of poles: 4Protection class: IP65Material: PolycarbonateConnection cross-section: max. 1.5 - 2.5 mm²Dimensions: 160 x 240 x 166 mm ( W x H x D )Standards: VDE 0660, IEC/EN 60947-1/-3/-5-1, IEC/EN 60204-1Temperature range: -25°C to +70°CPossible applicationsThis main switch is suitable as:Emergency shutdown switch: Reliable shutdown in an emergency.Repair switch: Safe working on systems.On/off switch: Control of lighting, motors or heaters.Load-break switch: For low, medium and high voltage, including transformers and reactive current compensation.Special featuresThe padlock prevents unauthorised switching on or off.The clearly visible switch position in red/yellow makes operation easier.Flexible installationThe housing has knockouts for cable glands that allow flexible cable routing. Screw contacts ensure simple and secure connection of the cables.Safety and standardsManufactured in accordance with the latest standards such as VDE 0660 and IEC/EN 60947, the switch fulfils the highest safety and reliability requirements. This product may only be installed by qualified personnel.Additional accessoriesComplete your installation with matching cable glands in grey or black, which are available in our shop.This main switch provides you with a reliable and versatile solution for your electrical systems.

Main switch with housing, repair switch load-break switch emergency stop switch:Connection: 3-pole, 4-poleRated current: 16 A, 20A, 25A, 32A, 40A, 63A, 80A, 100AAmbient temperature: -5°C to +40°CHousing protection class IP 65Rated operating voltage: 230 - 440 VRated insulation voltage: 690 VVDE certification (from 20A) in accordance with DIN EN 60947-1, 60947-3, 60947-3 Correction 1. identification no. 40045826Product name Main switchEnclosure frame UKP0 UKP1 UKP3 UKP5Rated current 10A 16A 20A 20A 25A 32A 32A 40A 50A 63A 63A 80A 100ANumber of poles 3/4Rated insulation voltage (V) 690VRated operating current (A) 10 16 20 20 25 32 32 32 40 50 63 63 80 100AC-23A 10 16 20 20 25 32 32 40 50 63 63 80 100AC-3 8 10 16 16 20 25 25 32 40 50 50 63 63 80Nominal voltage (UE) 440VRated power control (KW) 3 4 5.5 5.5 7.5 11 11 15 18 22 22 30 37AC-23A 3 4 5.5 5.5 5.5 7.5 11 11 15 18 22 22 30 37AC-3 2.2 3 4 4 5.5 7.5 7.5 11 15 18.5 18.5 22 30Rated short-time withstand current (Icw) 320A 320A 320A 320A 500A 500A 500A 800A 800A 800A 800A 2000A 2000A 2000ACable connection (qmm) 1.5 2.5 2.5 2.5 4 6 6 10 10 16 16 25 35Screw torque (Nm) 0.8 0.8 0.8 0.8 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 2 2 2
