Main switch 32A 4-pole VDE
€17.90*
% €19.90* (10.05% saved)Available, delivery time: 1-3 days

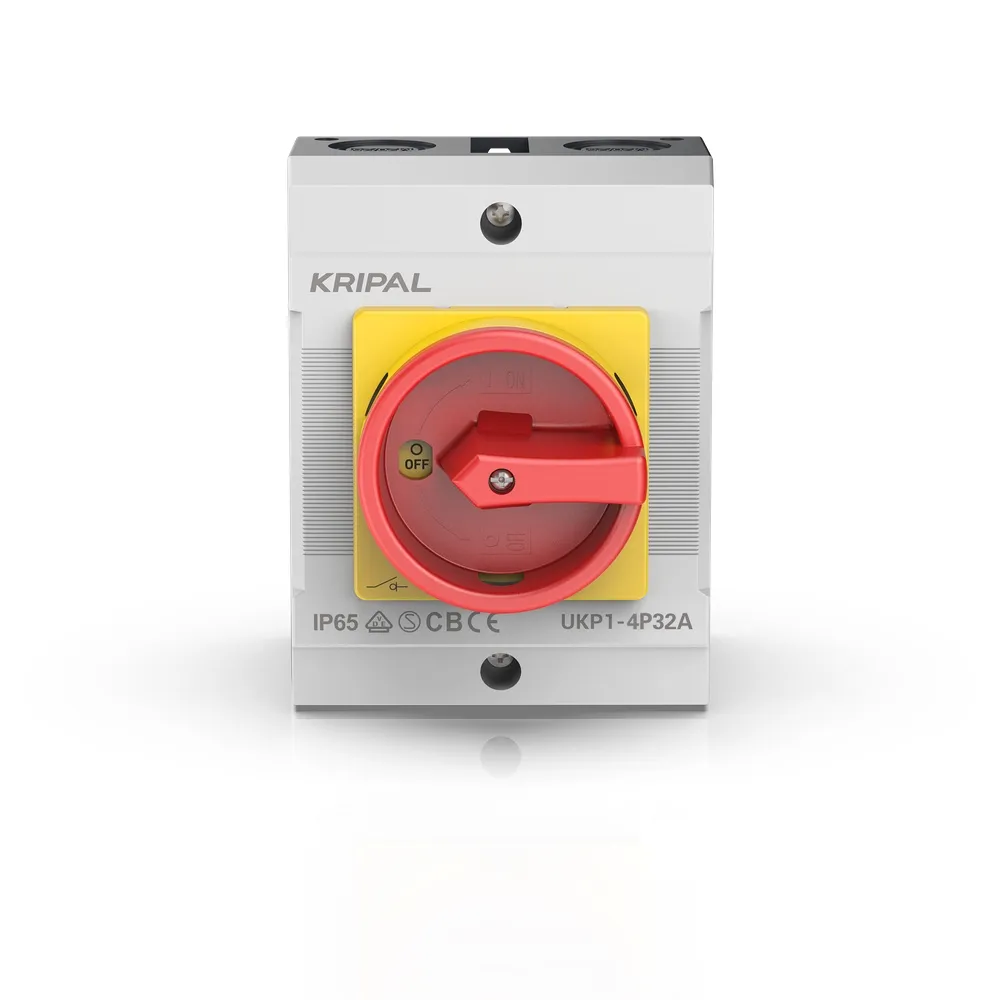

This 32A 4-pole main switch in an enclosure is a versatile solution for safe power isolation in industrial and building technology. With a rated current of 32A and a protection rating of IP65, it is ideal for use in demanding environments, including outdoor areas. The switch is pre-assembled in a robust polycarbonate housing that ensures maximum durability and protection against environmental influences.
Technical details
- Rated current (Ie): 32 A (AC-23A)
- Operating power:
- 7.5 kW at 230 V (AC-3)
- 11 kW at 400 V (AC-3)
- Number of poles: 4
- Protection class: IP65
- Material: Polycarbonate
- Connection cross-section: max. 1.5 - 2.5 mm²
- Dimensions: 101 x 126 x 121 mm
- Standards: VDE 0660, IEC/EN 60947-1/-3/-5-1, IEC/EN 60204-1
- Temperature range: -25°C to +70°C
Possible applications
This main switch is suitable as:
- Emergency shutdown switch: Reliable shutdown in an emergency.
- Repair switch: Safe working on systems.
- On/off switch: Control of lighting, motors or heaters.
- Load-break switch: For low, medium and high voltage, including transformers and reactive current compensation.
Special features
- The padlock prevents unauthorised switching on or off.
- The clearly visible switch position in red/yellow makes operation easier.
Flexible installation
The housing has knockouts for cable glands that allow flexible cable routing. Screw contacts ensure simple and secure connection of the cables.
Safety and standards
Manufactured in accordance with the latest standards such as VDE 0660 and IEC/EN 60947, the switch fulfils the highest safety and reliability requirements. This product may only be installed by qualified personnel.
Additional accessories
Complete your installation with matching cable glands in grey or black, which are available in our shop.
This main switch provides you with a reliable and versatile solution for your electrical systems.
| Polzahl: | 4-polig |
|---|---|
| Bemessungsstrom: | 32A |
WARN- UND SICHERHEITSHINWEISE:
Der Anschluss und die Installation eines elektrischen Geräts oder Bauteils, das nicht steckerfertig ist, dürfen ausschließlich von einer qualifizierten Elektrofachkraft vorgenommen werden. Bei Schäden ist das Kabel unverzüglich spannungsfrei zu schalten. Der Hersteller übernimmt keine Haftung für Schäden, die durch unsachgemäßen Gebrauch verursacht werden. Weitere Informationen zum Installationshinweis finden Sie hier.
Downloads
UKP DatenblattUKP VDE SEMKO
