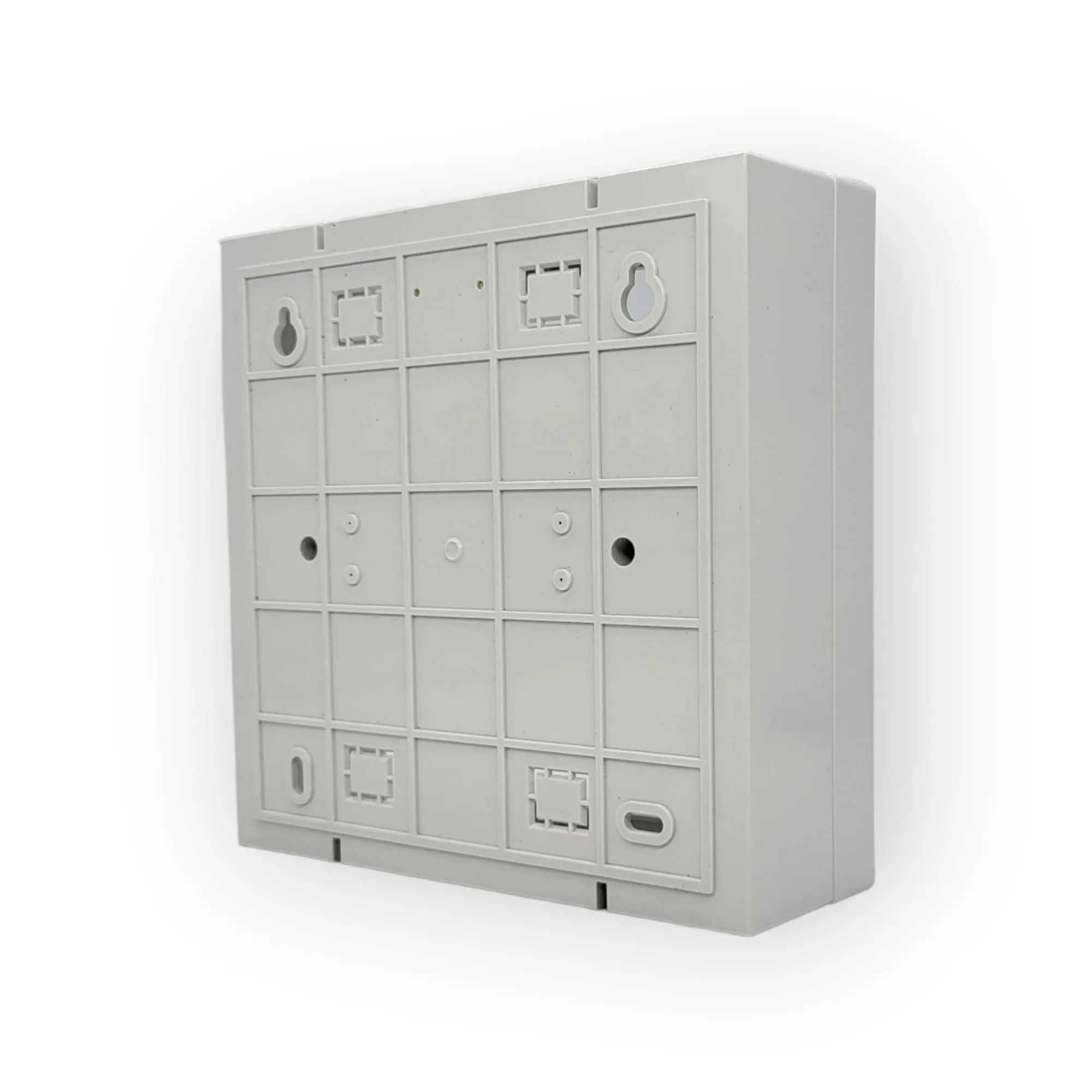

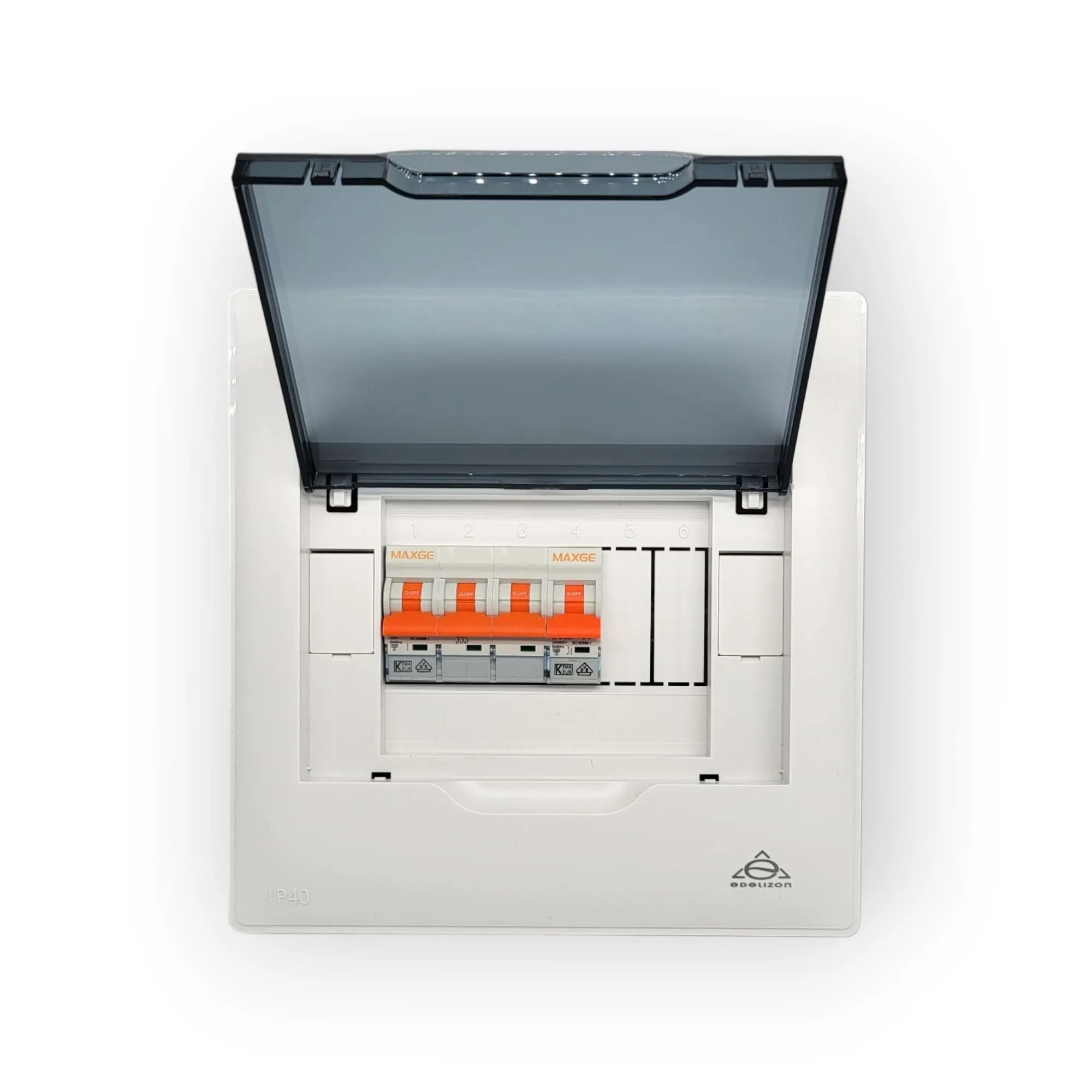

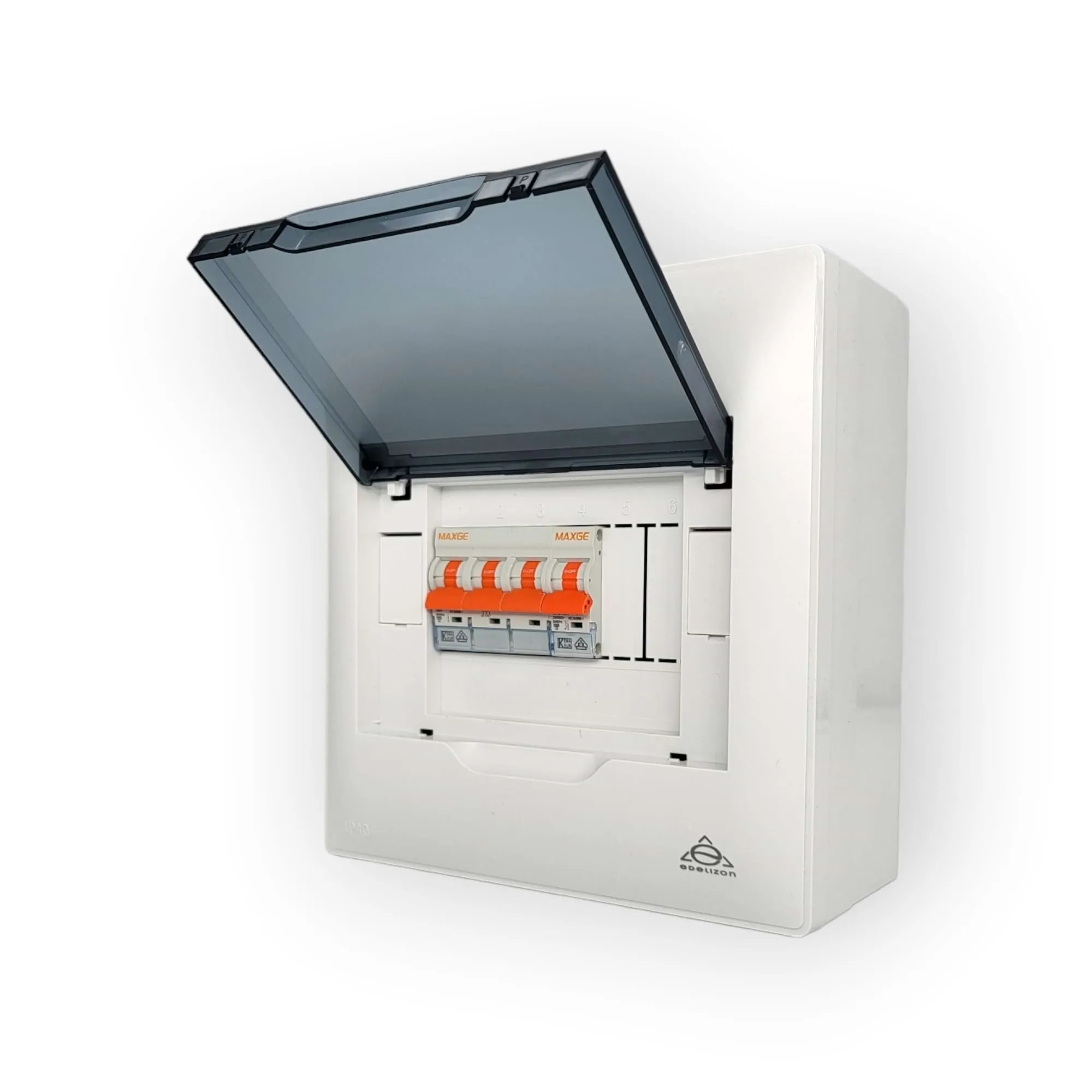

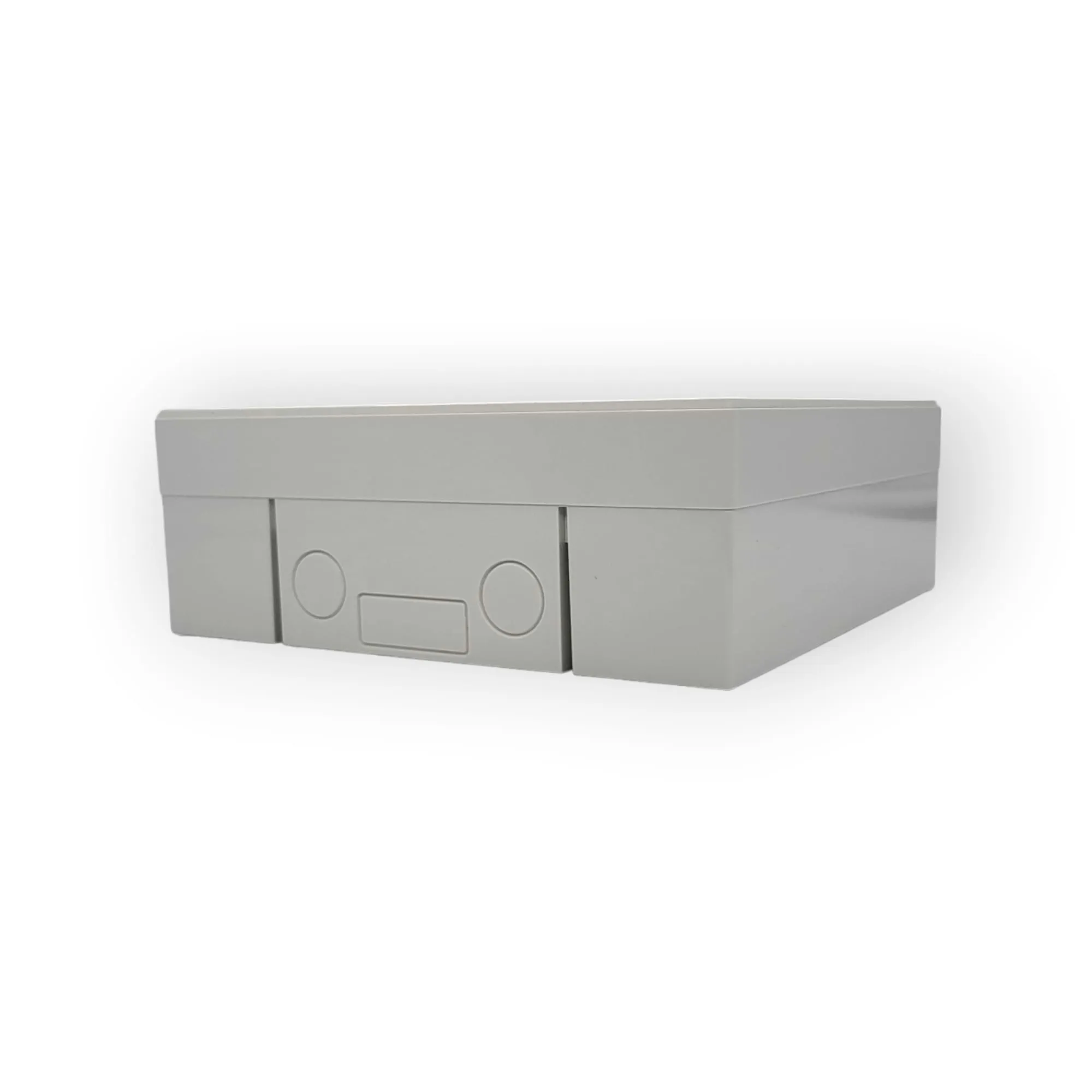

Fuse box 6 modules white surface-mounted

€5.83*

Available, delivery time: 1-3 days

Product number: DX10_M06S

Product information "Fuse box 6 modules white surface-mounted"

Impact-resistant, self-extinguishing ABS plastic.
Vertical alignment of housing and cover.
Quick and easy installation - pre-punched entries for cable entry from all sides. The presence of a special strip for fixing the base rail. The labelling tape is included with the product.

Model features:
Mounting type: Surface-mounted
Protection class: IP40
Material: ABS/polycarbonate
Colour: White/RAL 9001/9010/9016
Temperature resistant: -20°C/+80°C
Maximum operating voltage: AC 400V

Contents

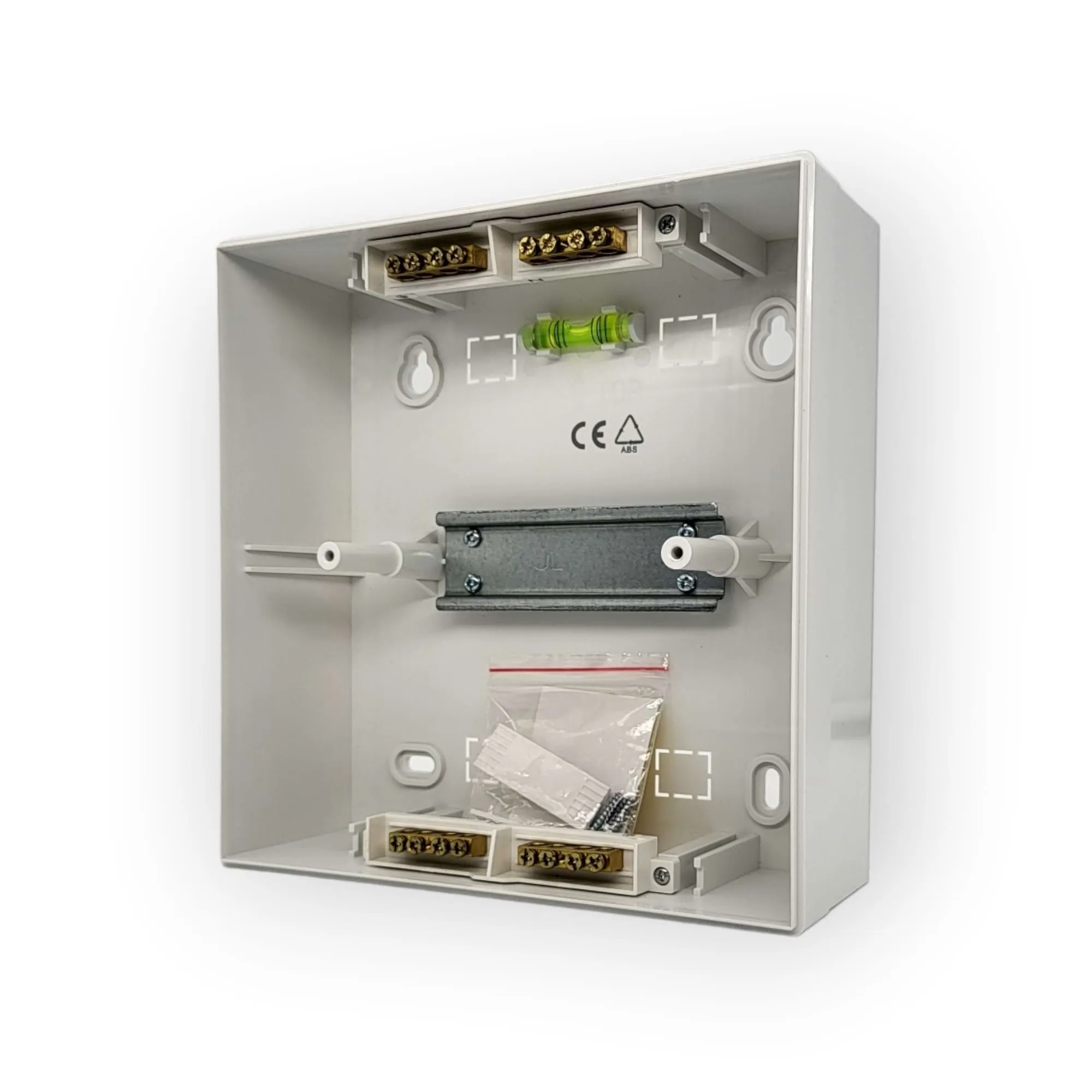

Surface-mounted distribution box
Top hat rail
4 PE/N terminals (depending on the model, the number of PE/N terminals and only 1 terminal holder varies)
screws
Marking tape
Size HxWxD: 205x200x82mm

WARN- UND SICHERHEITSHINWEISE:

Der Anschluss und die Installation eines elektrischen Geräts oder Bauteils, das nicht steckerfertig ist, dürfen ausschließlich von einer qualifizierten Elektrofachkraft vorgenommen werden. Bei Schäden ist das Kabel unverzüglich spannungsfrei zu schalten. Der Hersteller übernimmt keine Haftung für Schäden, die durch unsachgemäßen Gebrauch verursacht werden. Weitere Informationen zum Installationshinweis finden Sie hier.
