Fuse box 18 modules TÜV

€12.10*

Prices incl. VAT plus shipping costs

Available, delivery time: 1-3 days

Product number: SGDBi-S18
Product information "Fuse box 18 modules TÜV"
New fuse box! TÜV certification.

Mounting type: Surface-mounted
Protection class: IP30 after installation (tool protection and protection against foreign bodies > 2.5 mm)
Material: Base and cover: ABS, PC: Door
Colour: white RAL9003
Temperature resistant: -5°C / +40°C
Rated voltage: 240/400V In 100A

TÜV test report no.: 50131451 001
Standard (test basis): IEC62208:2011

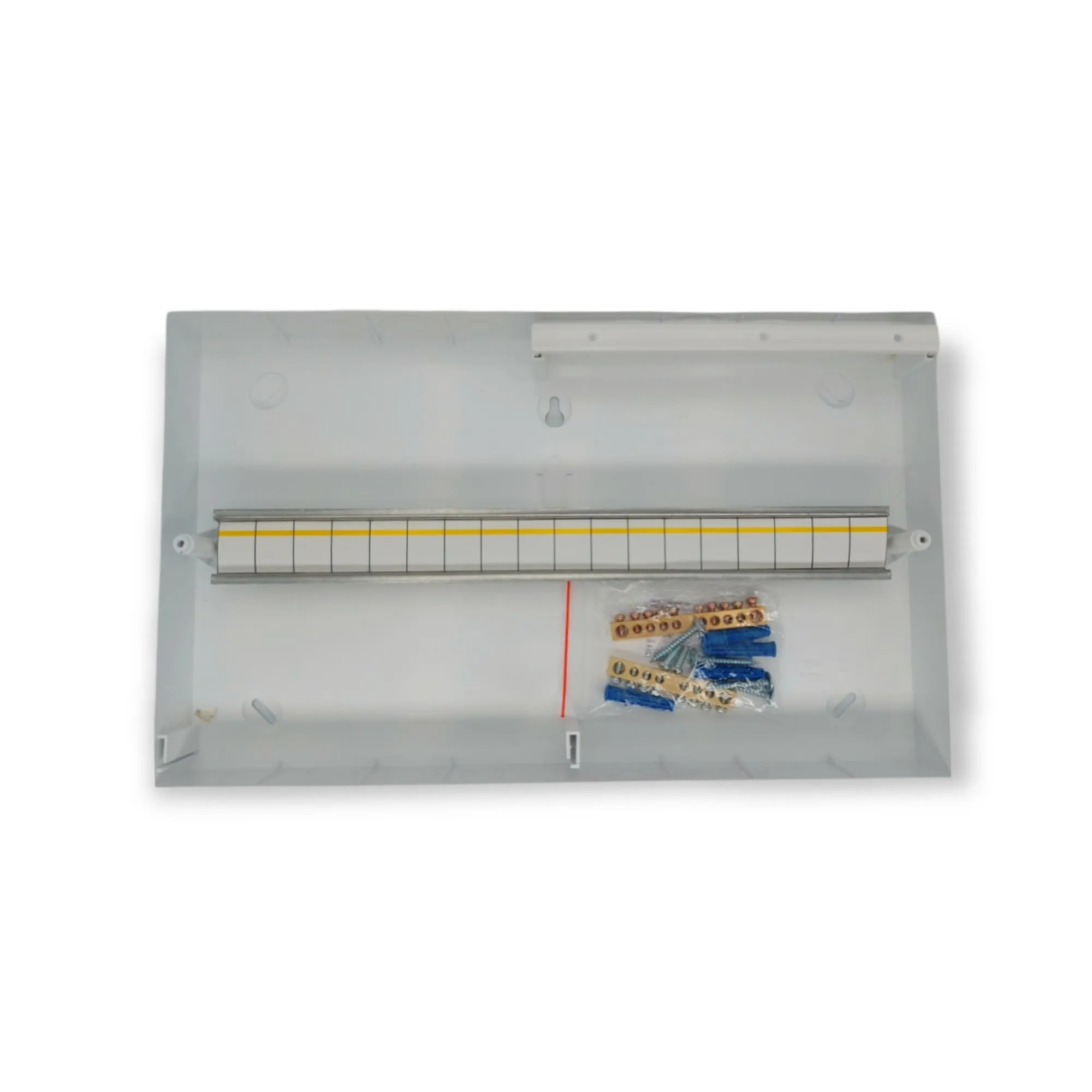

Contents:
- Surface-mounted distribution box
- Top-hat rail
- PE/N terminals and two terminal holders
- Marking tape

6 modules Dimensions (WxHxD): 194x204x102 mm
8 modules Dimensions (WxHxD): 228x204x102 mm
12 modules Dimensions (WxHxD): 300x204x102 mm

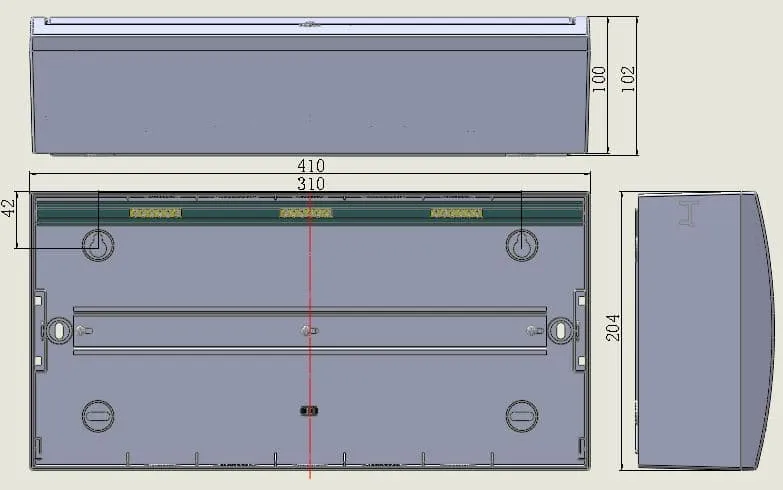

18 modules Dimensions (WxHxD): 410x204x102 mm
24 modules Dimensions (WxHxD): 300x294x109 mm
36 modules Dimensions (WxHxD): 410x294x109 mm

WARN- UND SICHERHEITSHINWEISE:

Der Anschluss und die Installation eines elektrischen Geräts oder Bauteils, das nicht steckerfertig ist, dürfen ausschließlich von einer qualifizierten Elektrofachkraft vorgenommen werden. Bei Schäden ist das Kabel unverzüglich spannungsfrei zu schalten. Der Hersteller übernimmt keine Haftung für Schäden, die durch unsachgemäßen Gebrauch verursacht werden. Weitere Informationen zum Installationshinweis finden Sie hier.
