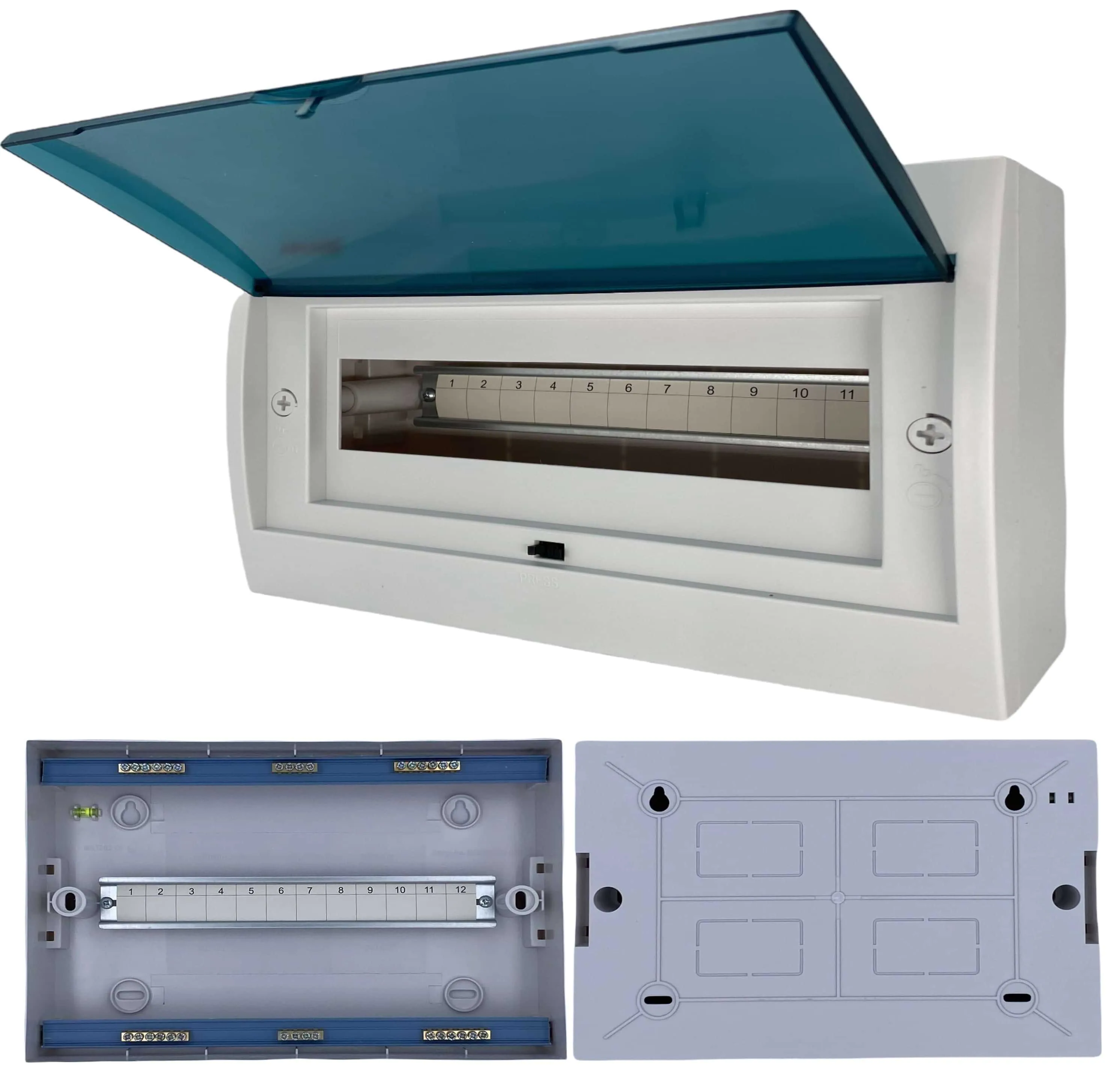

Fuse box 12 modules TÜV

€9.85*

Content: 1 Stück

Available, delivery time: 1-3 days

Product number: SGDBi-S12

Product information "Fuse box 12 modules TÜV"

New fuse box! TÜV certification.

Mounting type: Surface-mounted
Protection class: IP30 after installation (tool protection and protection against foreign bodies > 2.5 mm)
Material: Base and cover: ABS, PC: Door
Colour: white RAL9003
Temperature resistant: -5°C / +40°C
Rated voltage: 240/400V In 100A

TÜV test report no.: 50131451 001
Standard (test basis): IEC62208:2011

Contents:
- Surface-mounted distribution box
- Top-hat rail
- PE/N terminals and two terminal holders
- Marking tape

6 modules Dimensions (WxHxD): 194x204x102 mm
8 modules Dimensions (WxHxD): 228x204x102 mm

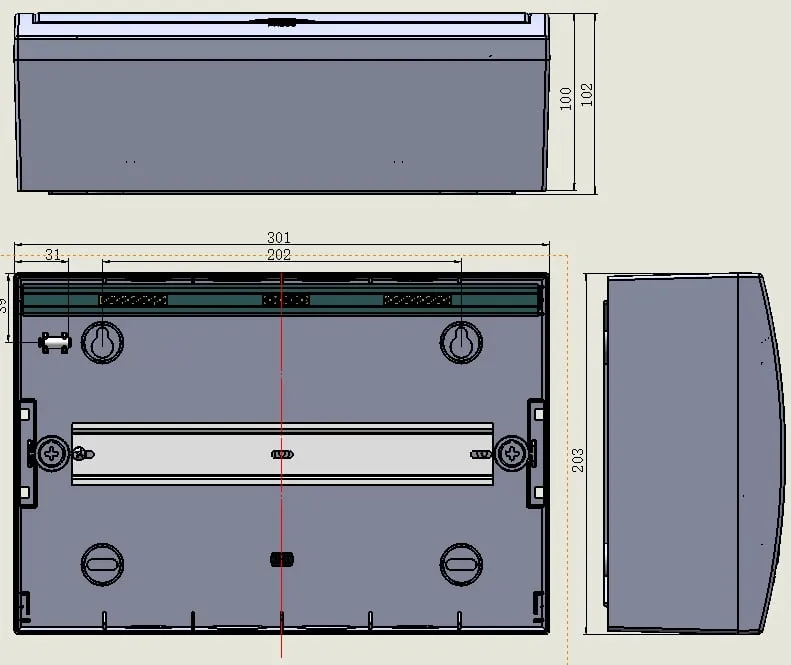

12 modules Dimensions (WxHxD): 300x204x102 mm
18 modules Dimensions (WxHxD): 410x204x102 mm
24 modules Dimensions (WxHxD): 300x294x109 mm
36 modules Dimensions (WxHxD): 410x294x109 mm
