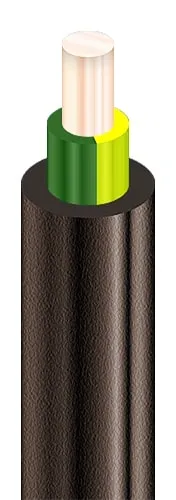

Underground Cable NYY-J 16 mm² – Robust PVC Power Cable for Direct Burial
Our NYY-J 16 mm² underground cables (also known as Erdkabel NYY-J) are heavy-duty PVC-insulated and sheathed power cables designed for fixed installation underground, outdoors, or in cable ducts. With bare copper conductors (solid RE or stranded RM), black PVC outer sheath, and full compliance with DIN VDE 0276-603, these cables offer reliable performance for high-current applications up to 0.6/1 kV.
Available as 1x16 mm² (single core) or 5x16 mm² (multi-core with green/yellow earth), sold by the metre or in convenient rings (10m–100m). Starting at just €2.62 per metre with volume discounts – perfect for B2B projects. Fast shipping across the EU and 0% VAT for business customers.
What is NYY-J Cable?
NYY-J is a standardized PVC power cable according to VDE norms:
- N: Copper conductor (norm-compliant)
- Y: PVC insulation
- Y: PVC outer sheath
- J: Includes green/yellow protective earth conductor (PE)
Unlike NYM-J (for indoor dry/wet areas), NYY-J features a thicker, more robust sheath for direct burial without additional mechanical protection (local regulations permitting).
Key Applications
- Direct underground installation for power supply to buildings, gardens, or outbuildings
- Outdoor fixed wiring in industrial plants and infrastructure
- Connection of pumps, lighting, or machinery in damp/wet environments
- Power distribution in cable ducts or conduits
- Suitable for fixed or limited movable installation
Comparison: NYY-J vs. NYM-J
| Feature | NYY-J (Underground) | NYM-J (Installation) |
|---|---|---|
| Sheath Thickness | Thicker PVC – robust for burial | Thinner – for indoor use |
| UV Resistance | Good (black sheath) | Limited (usually white/grey) |
| Direct Burial | Yes (without extra protection) | No – requires conduit |
| Moisture Resistance | Excellent for outdoor/underground | Suitable for damp indoors |
| Typical Use | Power supply lines outdoors | Building wiring indoors |
Technical Specifications (All Variants)
- Conductor: Bare copper (Class 1 solid RE or Class 2 stranded RM)
- Nominal Voltage: U0/U 0.6/1 kV
- Test Voltage: 4 kV
- Max. Conductor Temperature: +70°C
- Flame Retardant: IEC 60332-1 / VDE 0482-332-1-2
- Outer Sheath: Black PVC
- Standard: DIN VDE 0276 Part 603
Frequently Asked Questions (FAQ)
- Can NYY-J 16 mm² be buried directly in the ground?
- Yes – designed for direct burial (check local regulations for depth and sand bedding).
- What is the difference between RE (solid) and RM (stranded)?
- RE is solid for fixed installations (easier termination); RM is flexible stranded for limited movement.
- Is NYY-J suitable for outdoor use?
- Absolutely – black PVC sheath provides UV and moisture resistance.
- How deep should I bury the cable?
- Typically 60-80 cm for power cables (follow VDE/DIN guidelines or local codes).
- Do you cut to length?
- Yes – order by the metre for custom lengths.
- Are larger quantities available on drums?
- Contact us for quotes on full drums (500m+) with even better pricing.
B2B Benefits: Apply for a wholesale account for net prices, 0% VAT (EU), and priority shipping. Questions? Call our hotline or contact us!
