10m cable duct 60x60 White VDE
€48.80*
Available, delivery time: 2-4 Tage (Sperrgut)

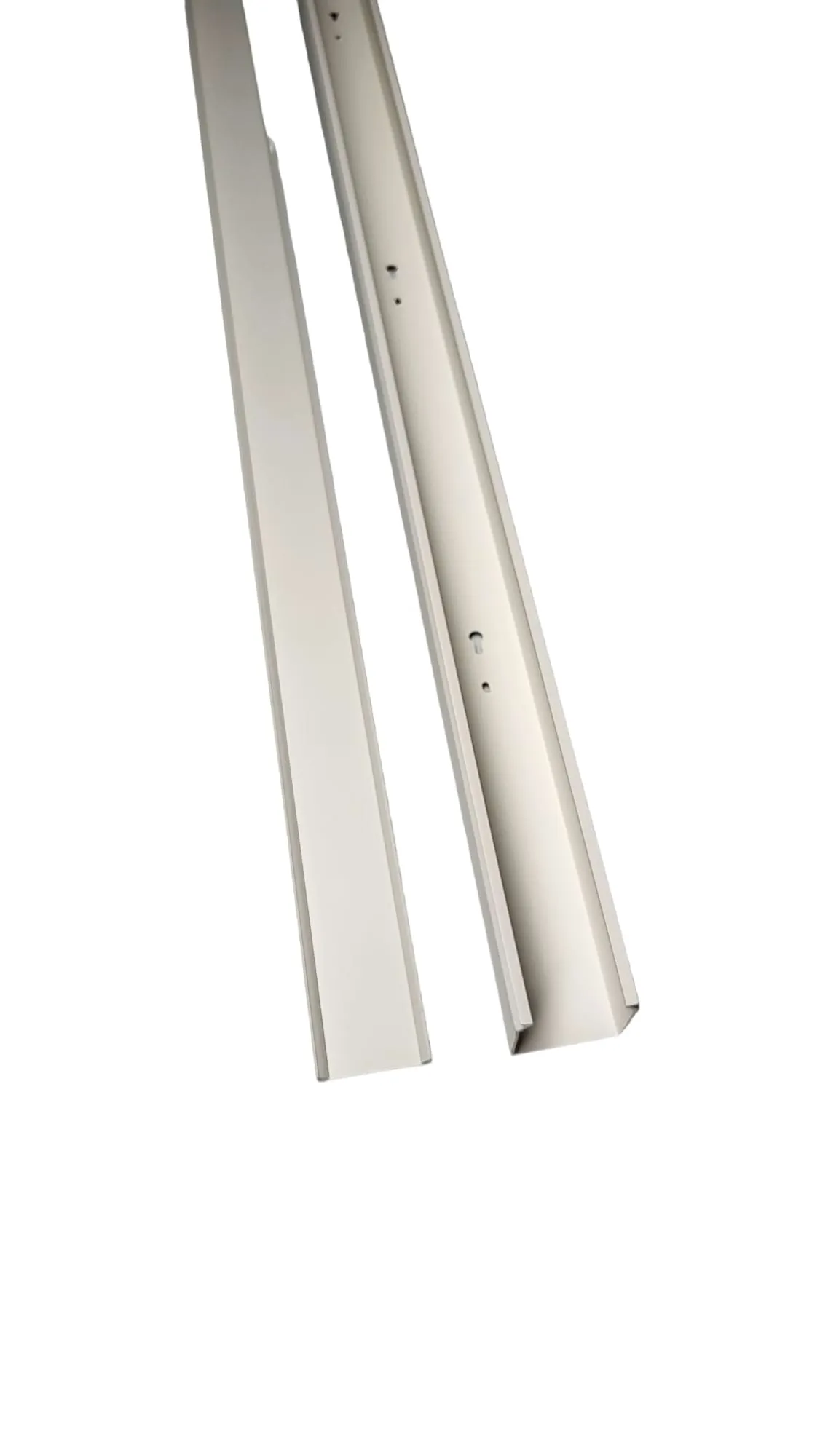

10 m cable duct 60x60 mm (5 pieces per 2 m)
Colour: White RAL 9016
With base perforation and cover
Protection class: IP40, flame-retardant, self-extinguishing
Cable clamps are not included
Certification: VDE, ID no. 40031254
DIN EN 50085-1 (VDE 0604-1):206-03; EN 50085-1:2005
DIN EN 50085-2-1 (VDE 0604 Part 2-1):2012-09; EN 50085-2-1:2006 + A1:2011
1 **Essential features**
PVC cable trunking and associated accessories are manufactured from PVC raw material of class M1 (non-combustible).
2 **UV light resistance**
After exposure to 300 W UV light for 28 days, PVC trunking and accessories showed no change in colour or appearance.
3 **Colours**
PVC cable trunking and accessories are available in the colour RAL 9016.
4 **Resistance to acid vapour**
PVC cable trunking and accessories were exposed to hydrochloric acid and sulphuric acid vapours for 3 hours. No change in surface or colour was observed after this period.
5 **Cold and heat resistance**
PVC cable trunking and accessories were subjected to thermal tests at temperatures of -40 °C and +60 °C for 72 hours. No cracks, swelling, flaking or deformation occurred.
6 **Fire resistance / burning behaviour**
The burning behaviour of PVC cable trunking and accessories was classified as VO in accordance with UL 94.
7 **Colourability**
The colourability of the samples was tested with water- and solvent-based dyes. It was found that the samples could be coated with both types of colours.
| Size: | 60x60 |
|---|
WARN- UND SICHERHEITSHINWEISE:
Der Anschluss und die Installation eines elektrischen Geräts oder Bauteils, das nicht steckerfertig ist, dürfen ausschließlich von einer qualifizierten Elektrofachkraft vorgenommen werden. Bei Schäden ist das Kabel unverzüglich spannungsfrei zu schalten. Der Hersteller übernimmt keine Haftung für Schäden, die durch unsachgemäßen Gebrauch verursacht werden. Weitere Informationen zum Installationshinweis finden Sie hier.
