Junction boxes

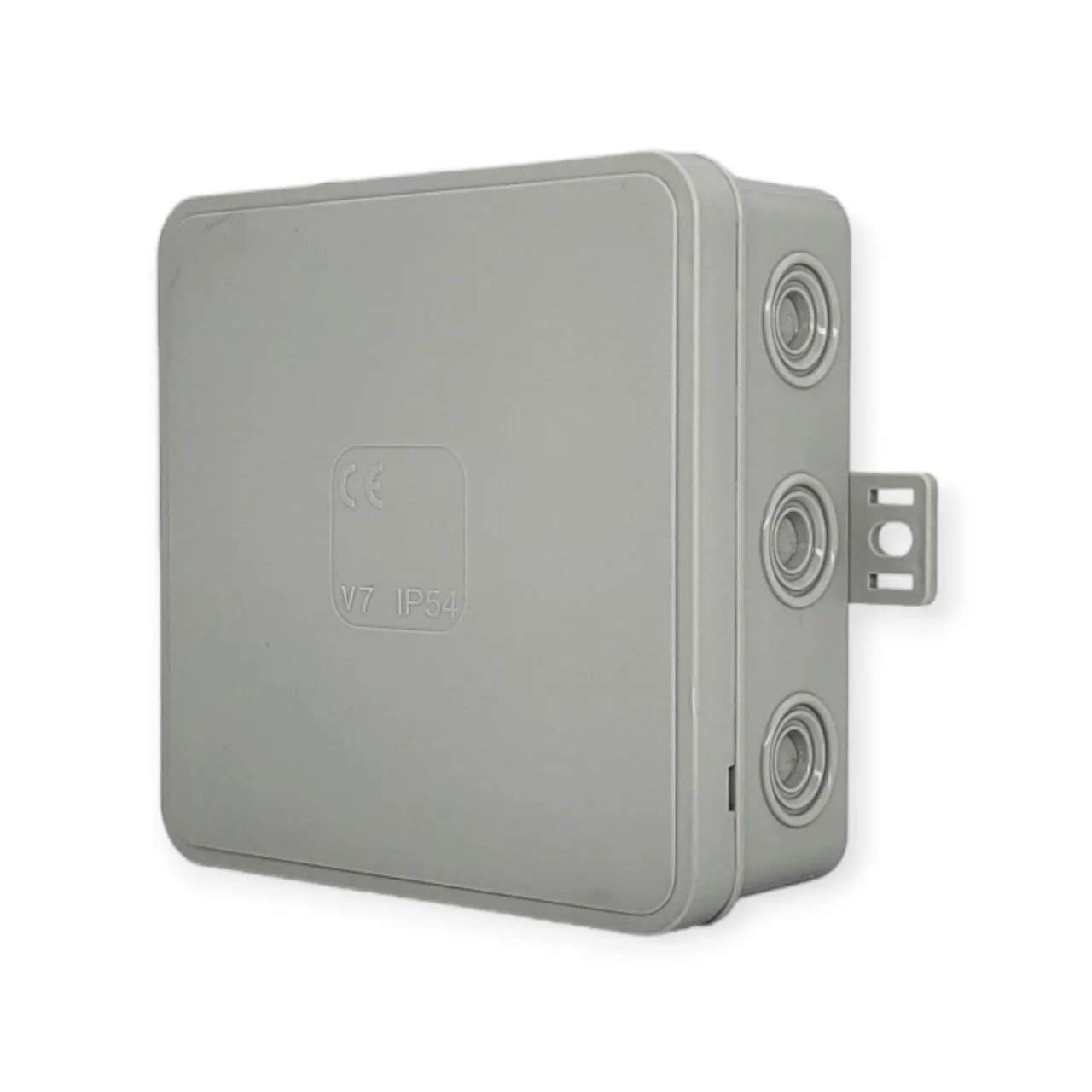

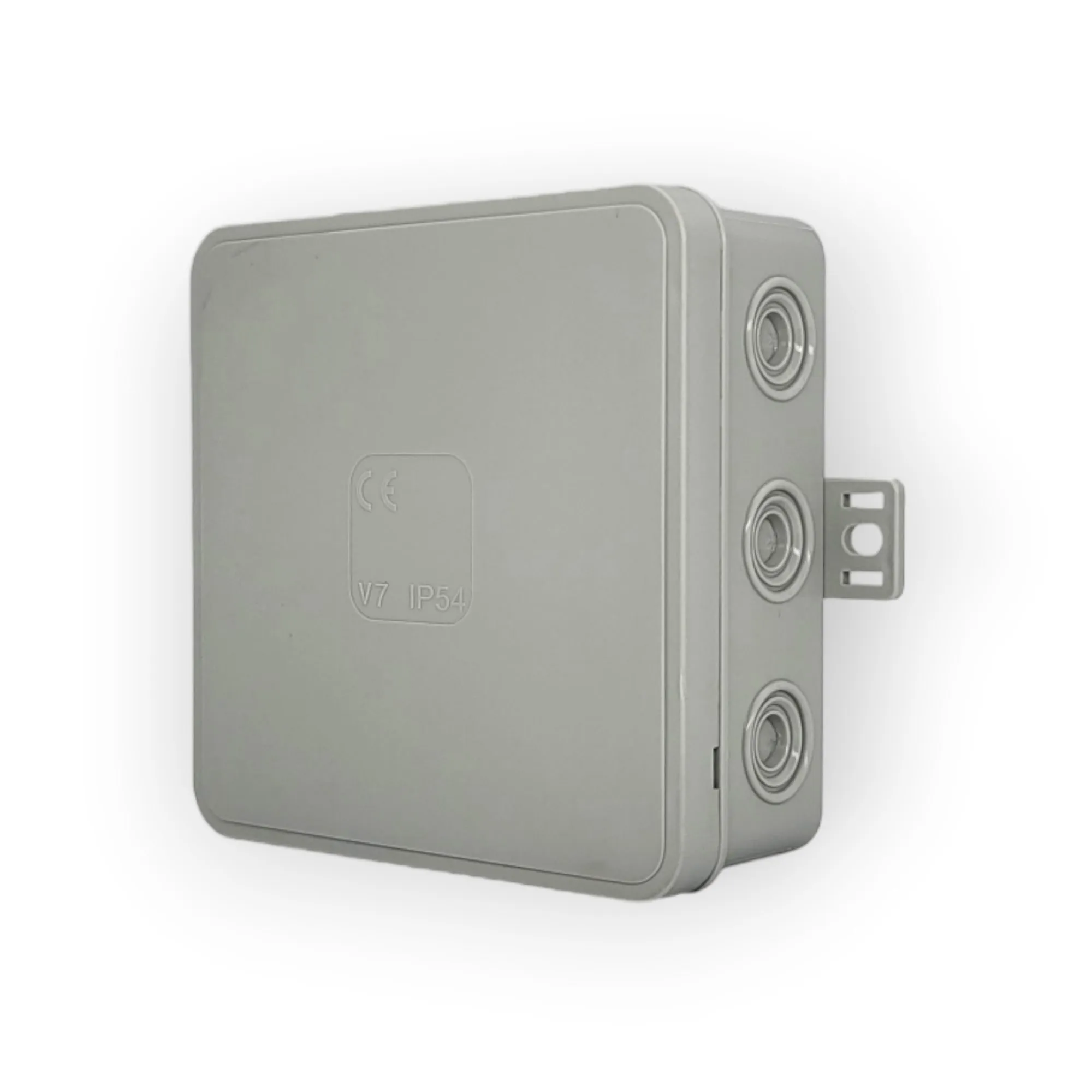

Junction box grey 100x100x41mm IP54

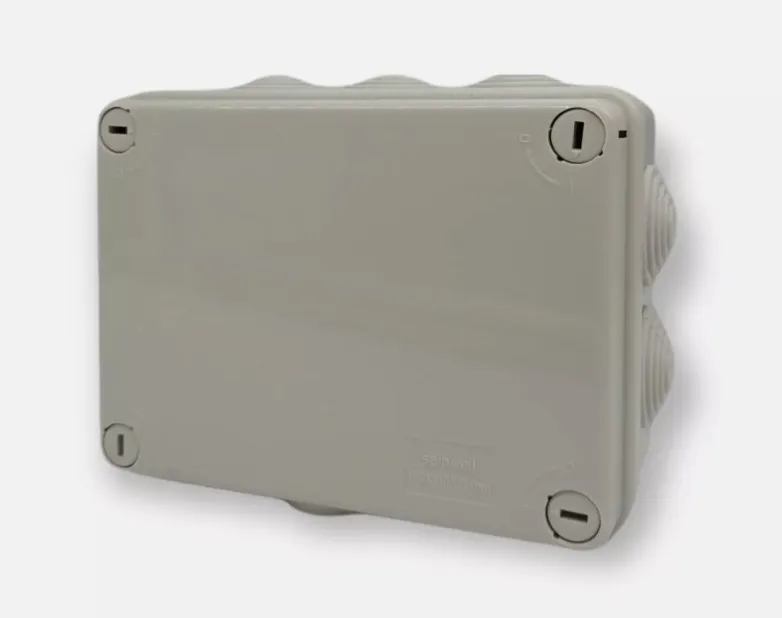

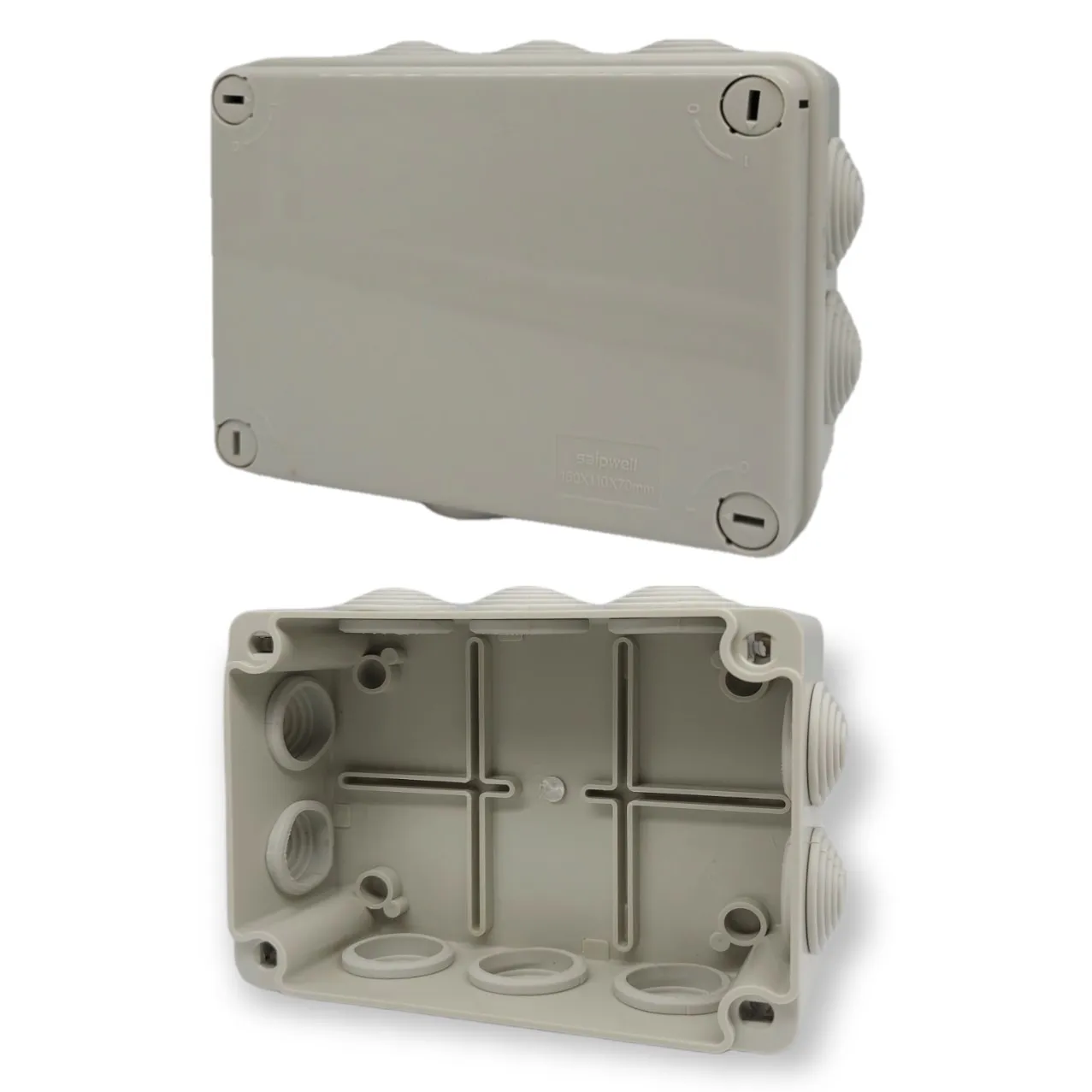

Surface-mounted junction box open installation 150x110x70Colour: Grey RAL7035Protection class: IP66

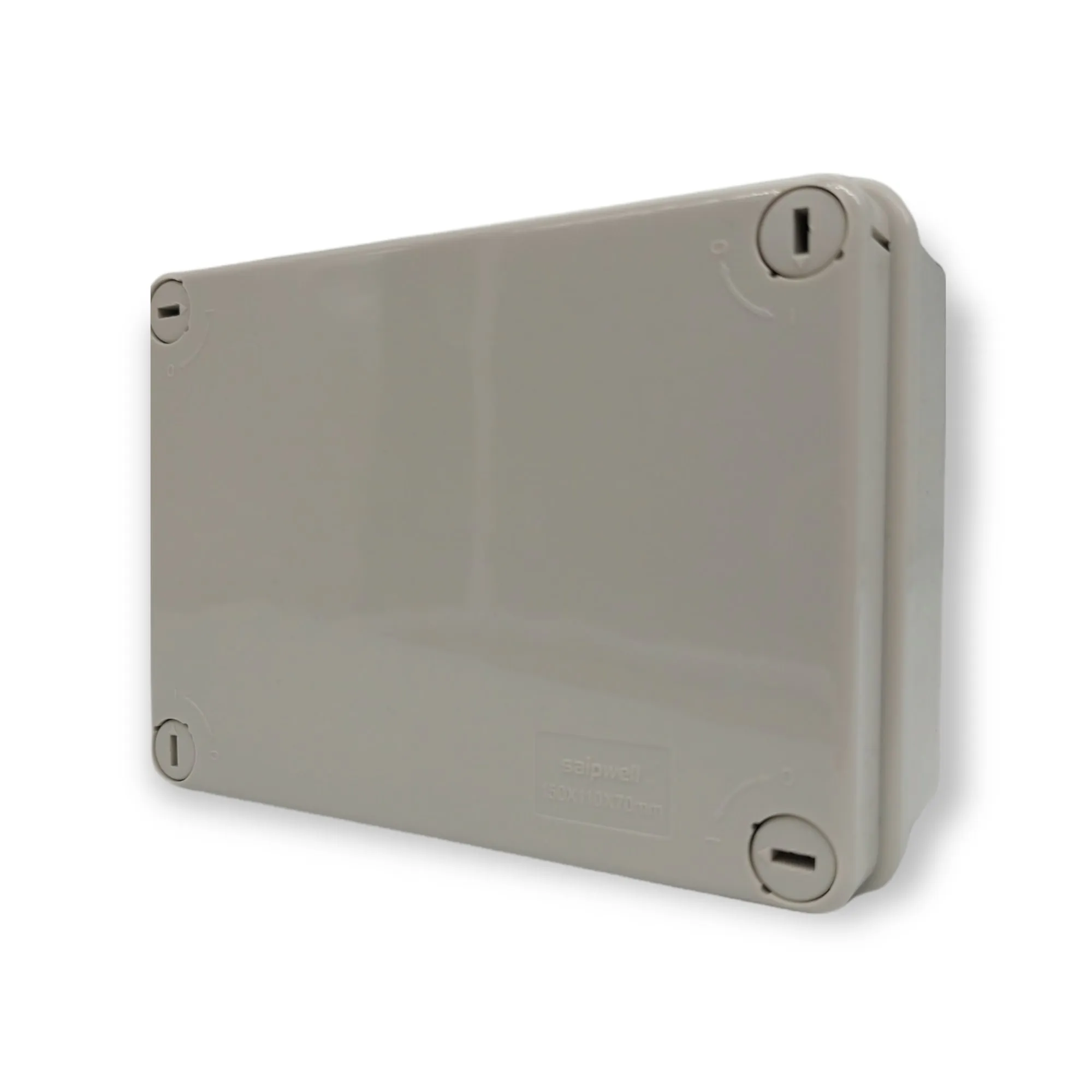

Surface-mounted junction box open installation 190x140x70 mm (smooth walls)Colour: Grey RAL7035Protection class: IP65

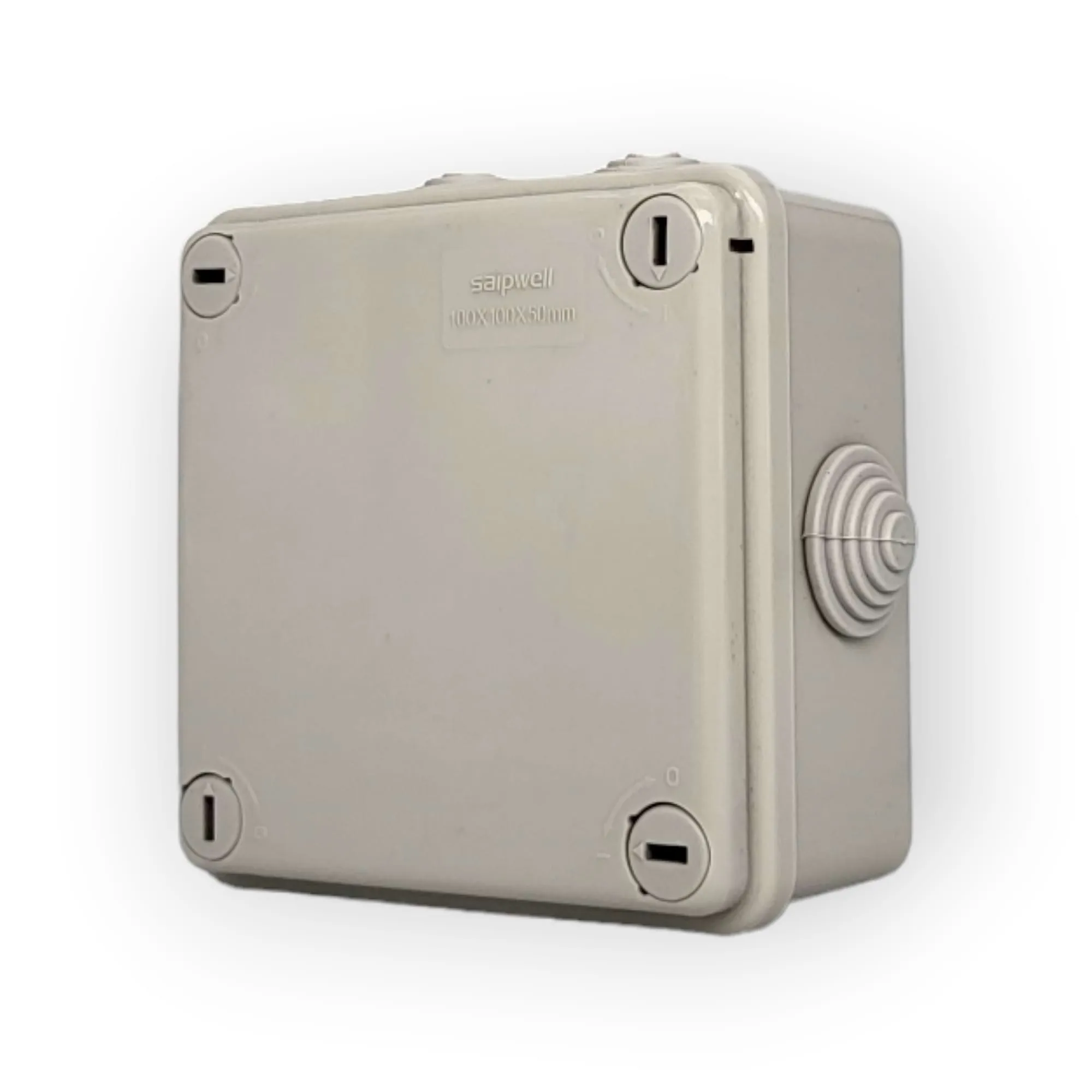

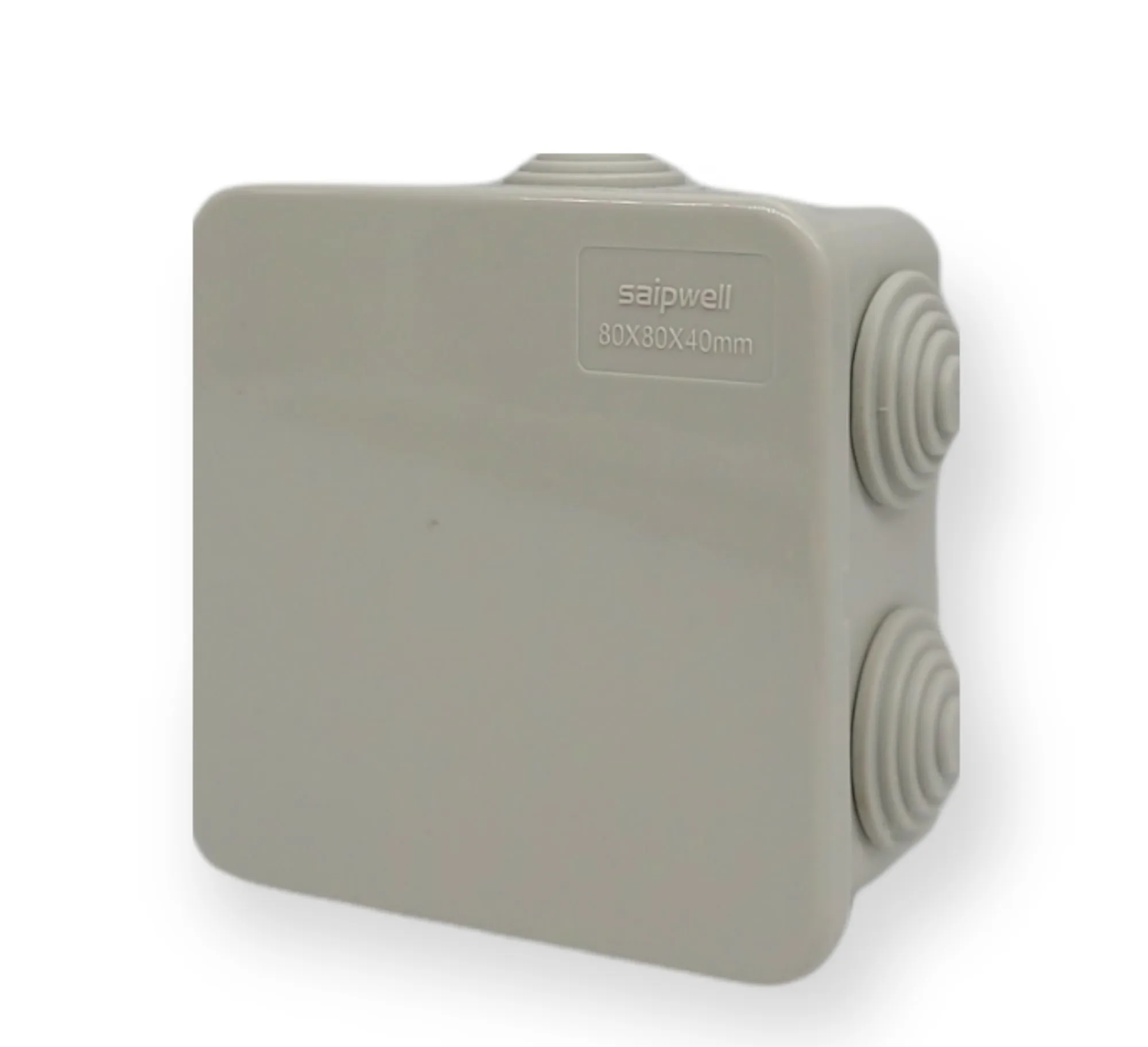

Junction box open actual installation 80x80x40 mm IP65 (RAL7035, 6 entry grommets)

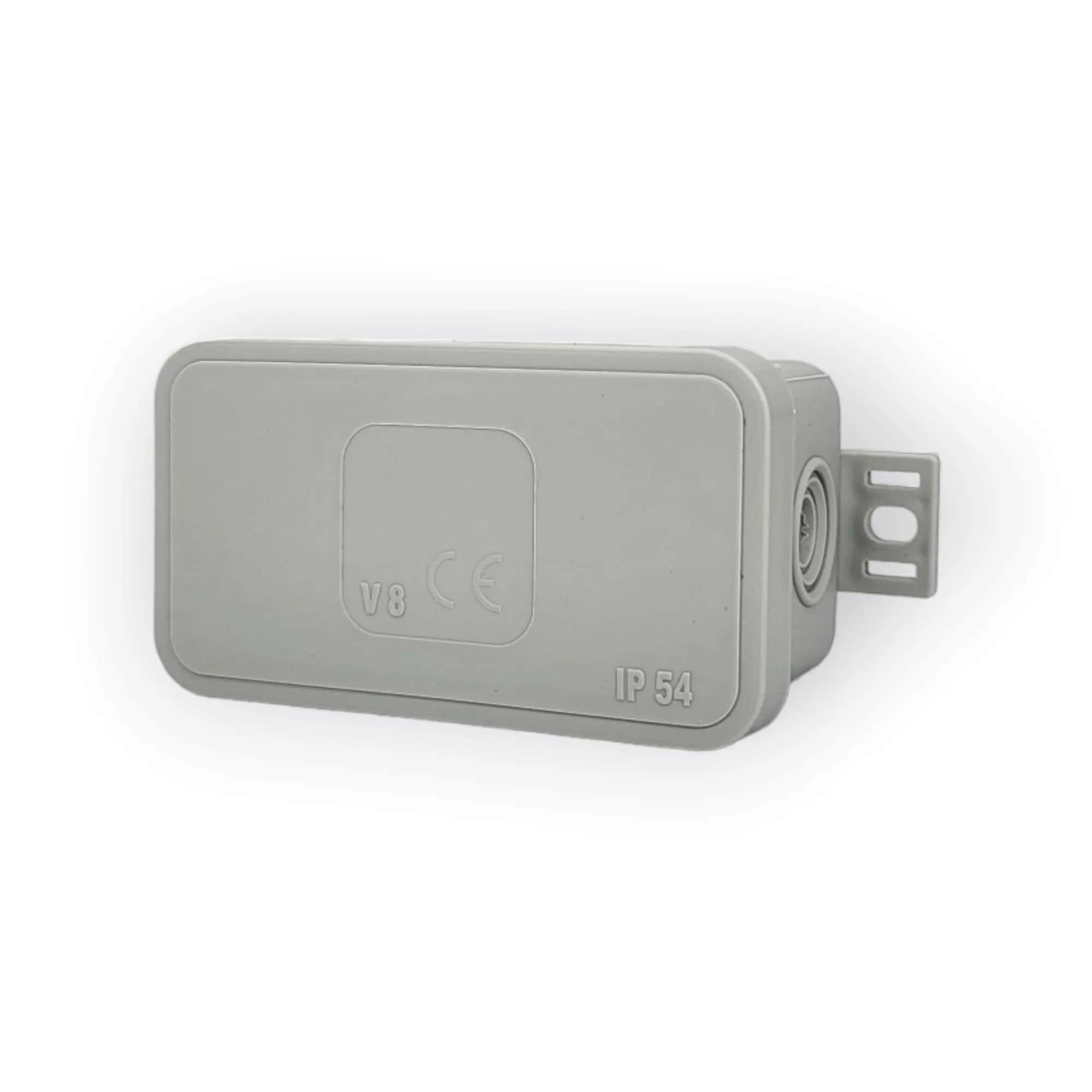

Junction box grey 80x45x41mm IP54

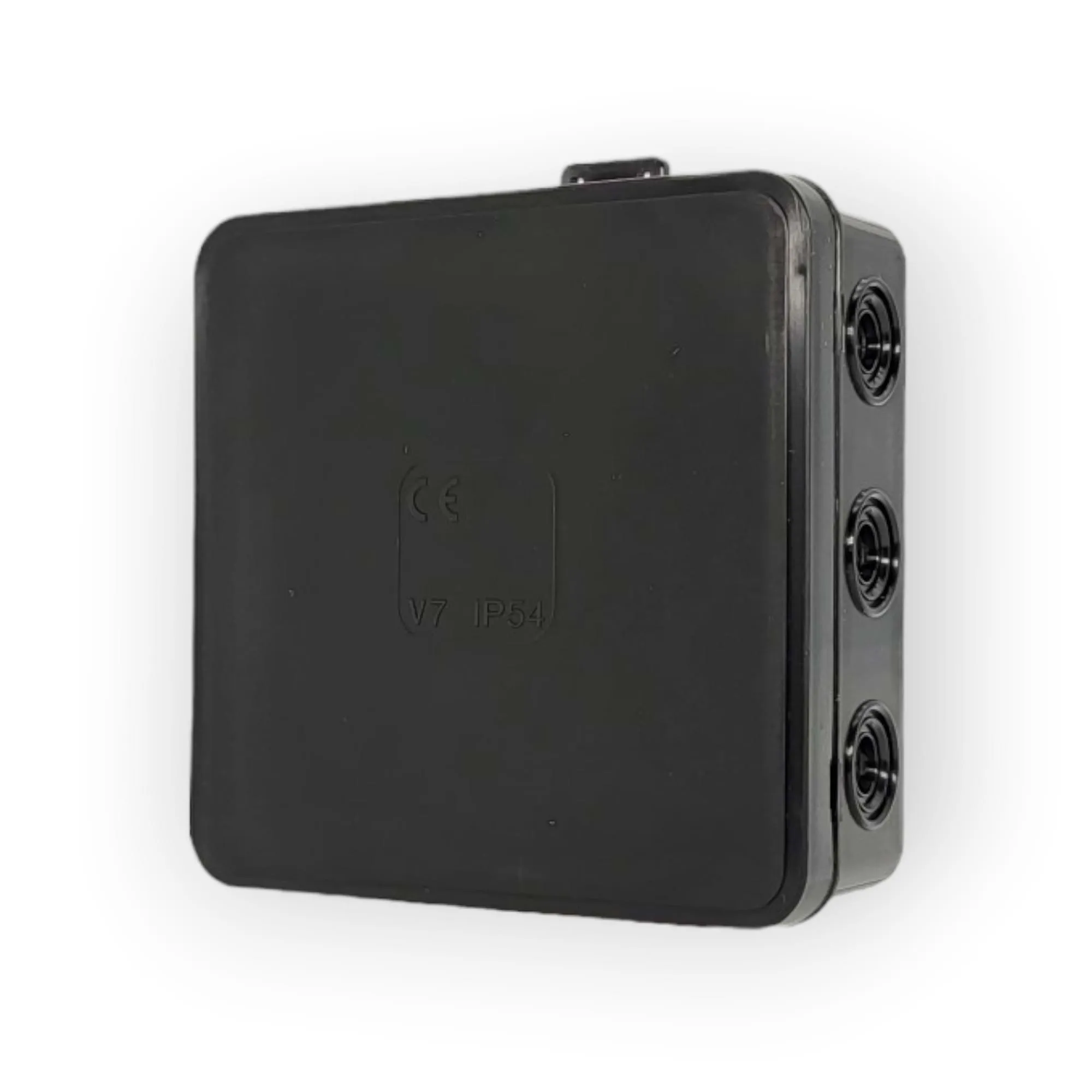

Junction box black 100x100x41mm IP54

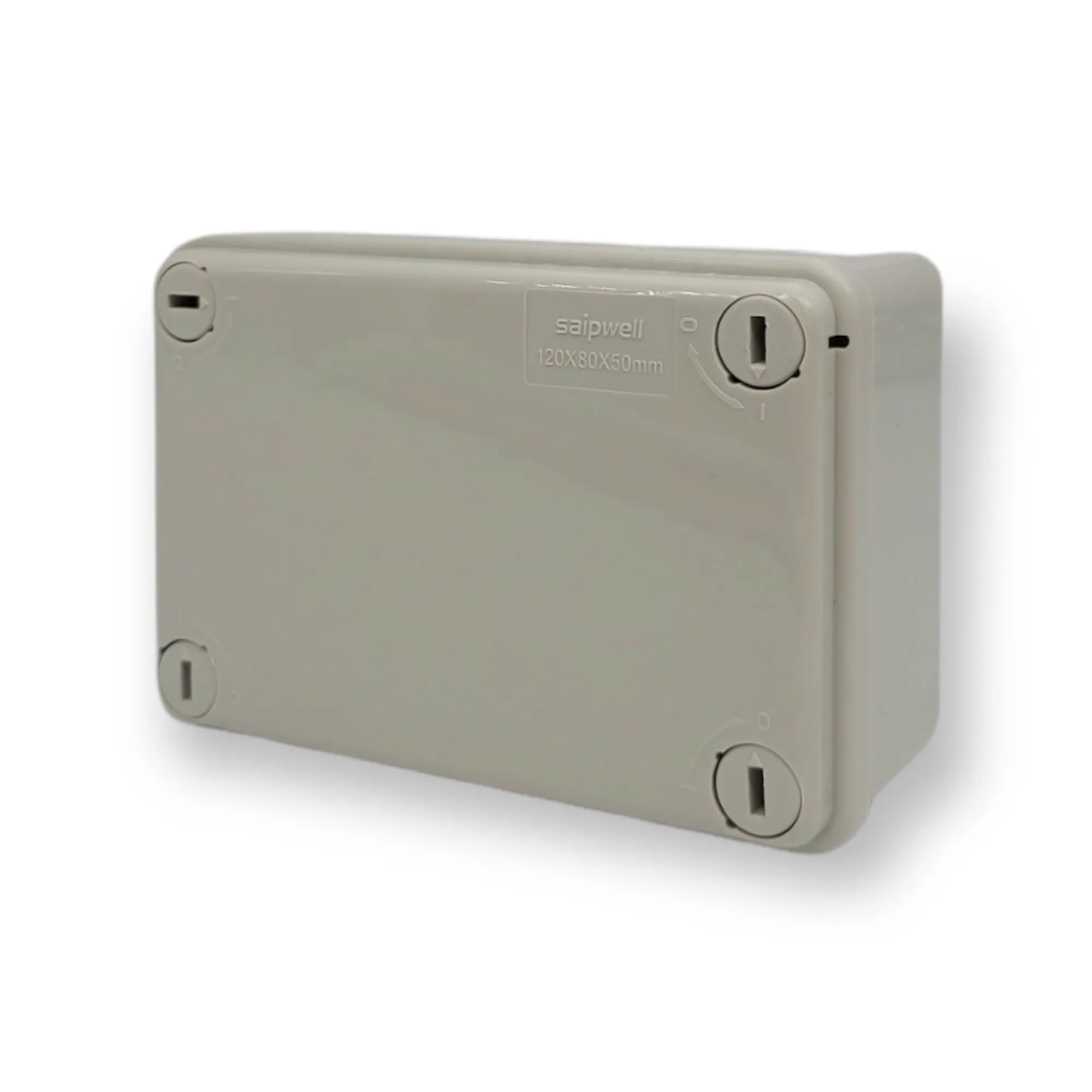

Surface-mounted junction box open installation 120x80x50 (smooth walls)Colour: Grey RAL7035Protection class: IP65

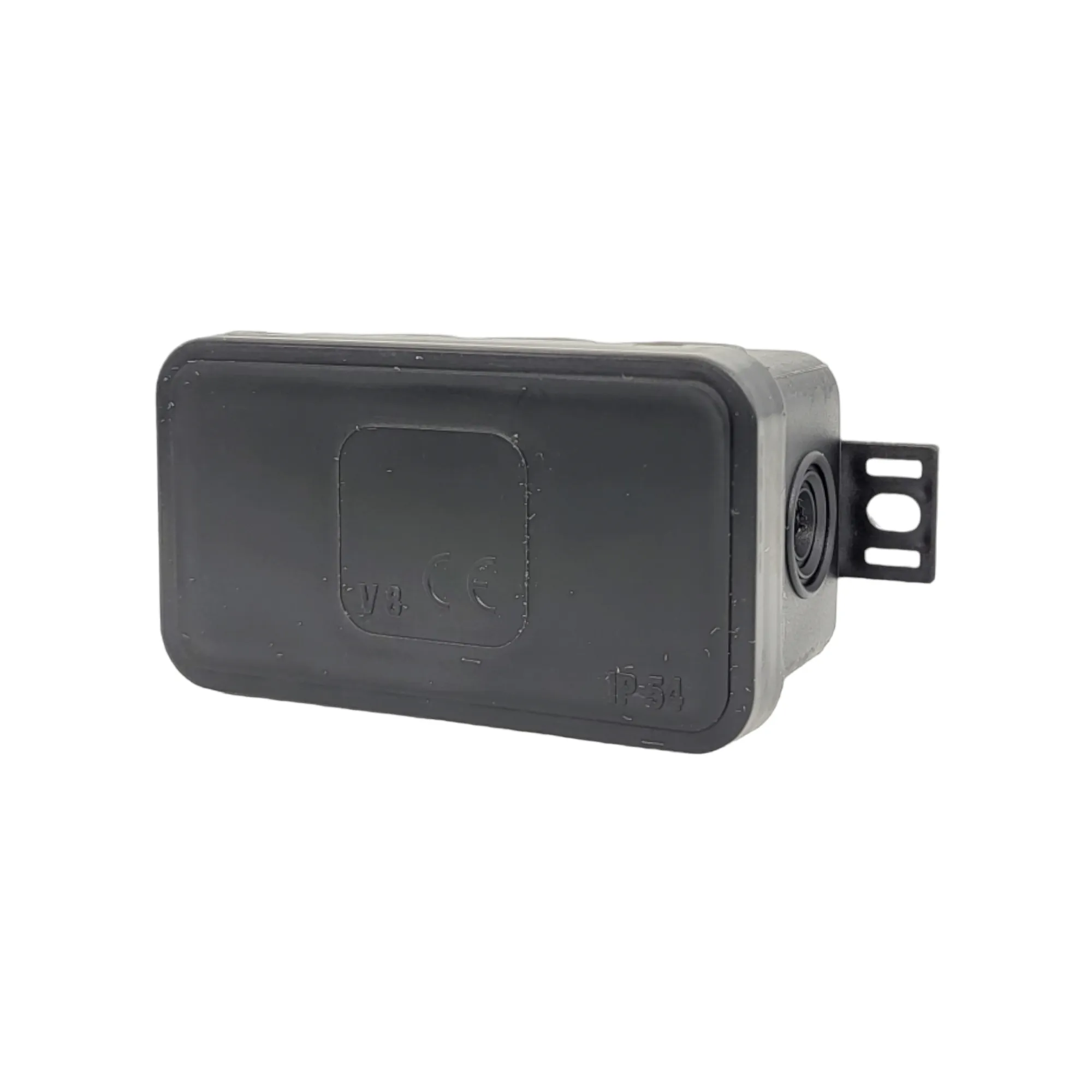

Junction box black 80x45x41mm IP54 IP54

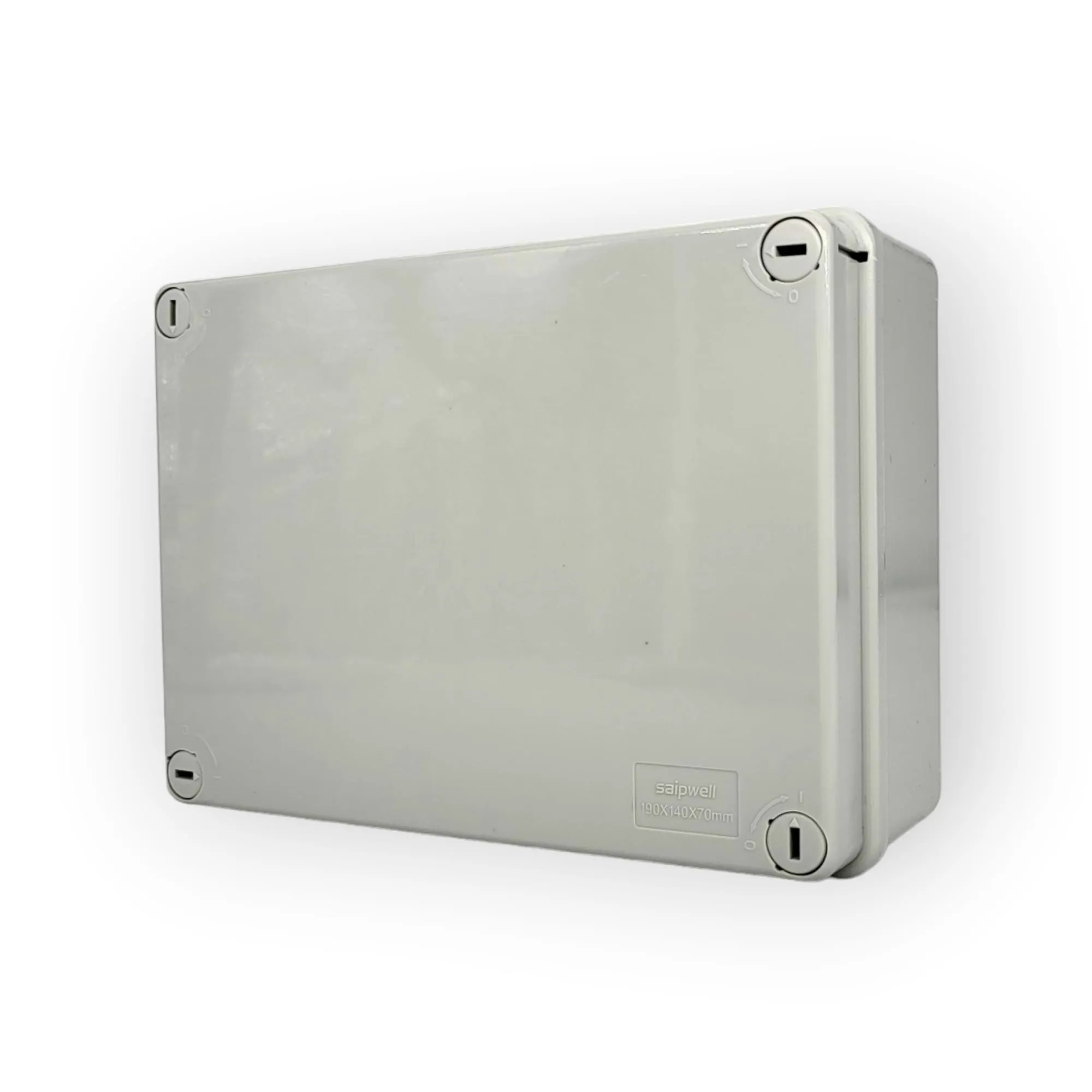

Surface-mounted junction box open installation 300x220x120 mmColour: Grey RAL7035Protection class: IP66

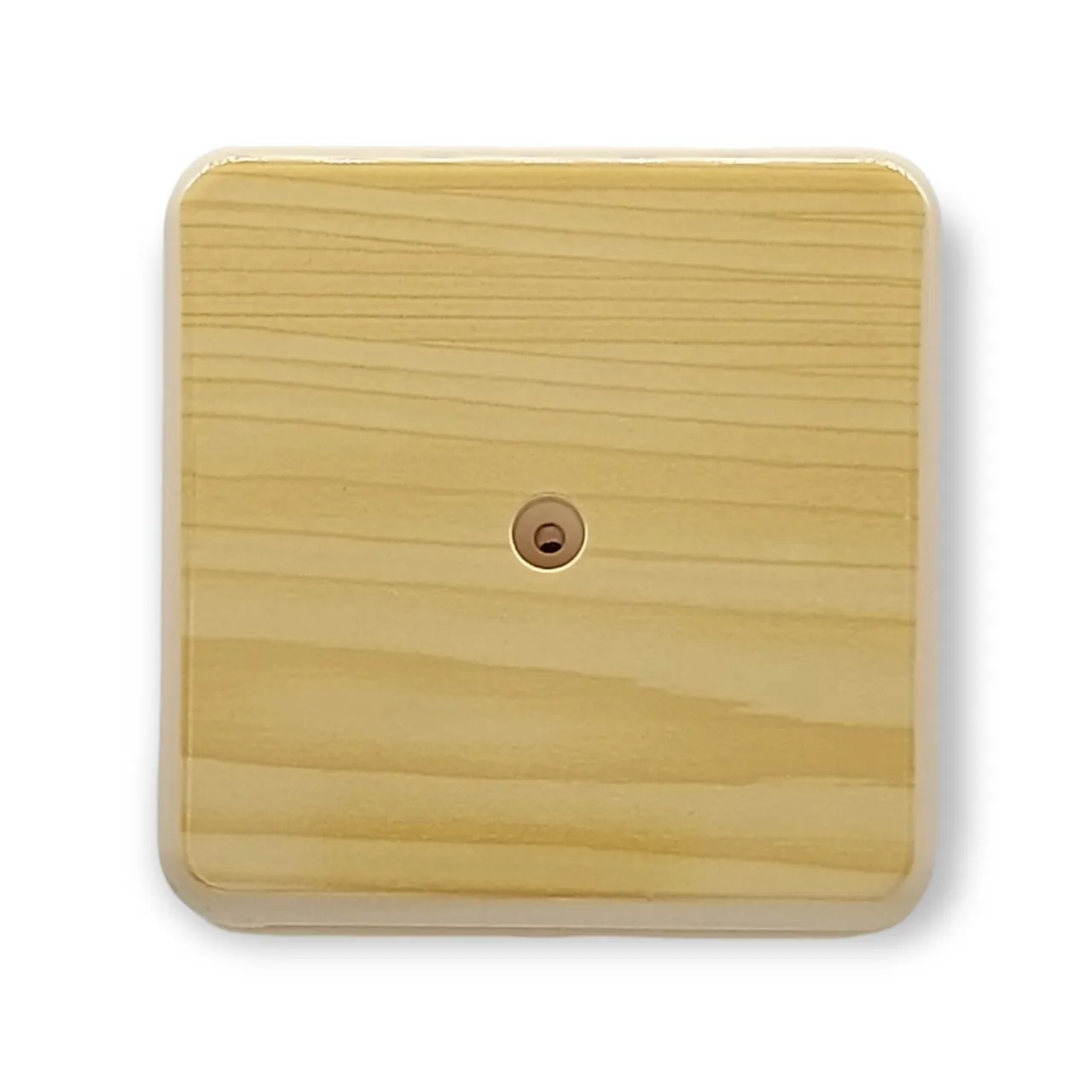

Description:These mounting boxes are designed for open installations and are used to distribute wires and cables as well as to conceal and provide additional protection for connection points. The boxes are used as part of an electrical trunking system consisting of cable ducts. The boxes are equipped with a terminal strip for convenient connection. The material is polystyrene and various colours such as white, ivory, light wood and pine are available. The degree of protection is IP20.Advantages:- Quick and easy installation- Connection of wires and cables laid open indoors or inside plastic cable ducts and pipes- Includes terminal block.Technical specifications:- Installation type: Surface mounting (open installation)- Colour: Pine- Width: 100.0 mm- Halogen-free: Yes- Height: 44.0 mm- Depth: 44.0 mm- Expandability: No- With cover: Yes- Number of connection terminals: 6- Length: 100.0 mm- Material: Polystyrene- Number of inputs: 0- Explosion-proof design: No- Fastening of the cover: Screw connection- Maximum cross-sectional area of the conductor: 6.0 mm²
