Sheathed cable NYM-J 16 mm²

Tip

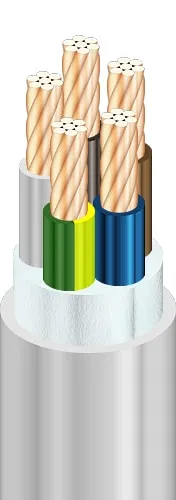

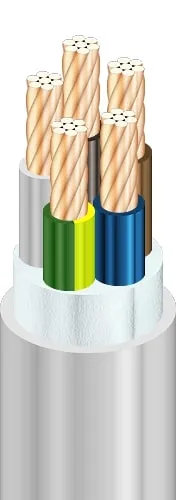

Sheathed cable NYM-J 5x16 mm² by the metre

Sheathed cable NYM-J 5x16 mm² by the metre to DIN VDE 0250 Part 204 - Conductor material: Cu, bare- Conductor class: Class 2(stranded) RM- Number of cores: 5 - Core labelling: according to VDE 0293 - Conductor nominal cross-section: 16 mm² - Sheath colour: grey (RAL 7035) - Flame resistance: in accordance with VDE 0482-332-1-2 - Permissible external cable temperature permanently installed: -40 - +70 °C - Permissible external cable temperature in motion: -5 - +70 °C - Rated voltage: U0/U 300/500 V - Test voltage: 2 kV

€11.54*

Sheathed cable NYM-J 1x16 mm² RM by the metre

Sheathed cable NYM-J 1x16 mm² RM by the metre to DIN VDE 0279 Part 603 - Conductor material: CU, bare - Outer diameter: approx. 9.3 mm- Conductor class: class 2 (stranded) - Number of cores: 1 - Core labelling: according to VDE 0293 - Conductor nominal cross-section: 16 mm² - Sheath colour: grey- Flame retardancy: according to VDE 0482-332-1-2/IEC 60332-1 - Permissible operating temperature: at conductor 70°C - Permissible external cable temperature in fixed installation: +70°C - Permissible external cable temperature in motion: -5 - +70 °C - Rated voltage: u0/u 0.6/1 kV - Test voltage: 4 kV

€2.37*

Sheathed cable NYM-J 1x16 mm² RE by the metre

Sheathed cable NYM-J 1x16 mm² RE by the metre to DIN VDE 0279 Part 603 - Conductor material: CU, bare - Outer diameter: approx. 9.3 mm- Conductor class: class 1 (solid) - Number of cores: 1 - Core labelling: according to VDE 0293 - Conductor nominal cross-section: 16 mm² - Sheath colour: grey- Flame retardancy: according to VDE 0482-332-1-2/IEC 60332-1 - Permissible operating temperature: at conductor 70°C - Permissible external cable temperature in fixed installation: +70°C - Permissible external cable temperature in motion: -5 - +70 °C - Rated voltage: u0/u 0.6/1 kV - Test voltage: 4 kV

€2.57*

NYM-J 5x16 mm² sheathed cable 20m RM

- 20m ring NYM-J 5x16 PVC installation cable to DIN VDE 0250 Part 204 - Outer diameter: approx. 24 mm- Conductor material: Cu, bare- Conductor class: Class 2 (stranded) - Number of cores: 5 - Core labelling: according to VDE 0293 - Conductor nominal cross-section: 16 mm² - Sheath colour: grey (RAL 7035) - Flame resistance: in accordance with VDE 0482-332-1-2 - Permissible external cable temperature permanently installed: -40 - +70 °C - Permissible external cable temperature in motion: -5 - +70 °C - Rated voltage: U0/U 300/500 V - Test voltage: 2 kV

Content: 20 Meter (€11.49* / 1 Meter)

€229.80*

NYM-J 5x16 mm² sheathed cable 10m

Ring: 10m

- 10m ring NYM-J 5x16 PVC installation cable to DIN VDE 0250 Part 204- Outer diameter: approx. 24 mm - Conductor material: Cu, bare- Conductor class: Class 1 (stranded) - Number of cores: 5 - Core labelling: according to VDE 0293 - Conductor nominal cross-section: 16 mm² - Sheath colour: grey (RAL 7035) - Flame resistance: in accordance with VDE 0482-332-1-2 - Permissible external cable temperature permanently installed: -40 - +70 °C - Permissible external cable temperature in motion: -5 - +70 °C - Rated voltage: U0/U 300/500 V - Test voltage: 2 kV

Content: 10 Meter (€11.89* / 1 Meter)

€118.90*

NYM-J 5x16 mm² sheathed cable 50m RM

- 50m ring NYM-J 5x16 PVC installation cable to DIN VDE 0250 Part 204- Outer diameter: approx. 24 mm - Conductor material: Cu, bare- Conductor class: Class 2 (stranded) RM- Number of cores: 5 - Core labelling: according to VDE 0293 - Conductor nominal cross-section: 16 mm² - Sheath colour: grey (RAL 7035) - Flame resistance: in accordance with VDE 0482-332-1-2 - Permissible external cable temperature permanently installed: -40 - +70 °C - Permissible external cable temperature in motion: -5 - +70 °C - Rated voltage: U0/U 300/500 V- Test voltage: 2 kVAttention! Forwarding agent dispatch. Delivery time 3-5 days. Please ensure that your telephone number and email address are correct. A delivery date will be agreed when the appointment is made by telephone.

Content: 50 Meter (€11.72* / 1 Meter)

€585.90*

Sheathed cable NYM-J 1x16 mm² 100m RE

- 100m ring NYM-J 1x16 PVC RE power cable to DIN VDE 0279 Part 603 - Conductor material: CU, bare - Outer diameter: approx. 9.4 mm- Conductor class: class 1 (solid) - Number of cores: 1 - Core labelling: according to VDE 0293 - Conductor nominal cross-section: 16 mm² - Sheath colour: grey- Flame retardancy: according to VDE 0482-332-1-2/IEC 60332-1 - Permissible operating temperature: at conductor 70°C - Permissible external cable temperature in fixed installation: +70°C - Permissible external cable temperature in motion: -5 - +70 °C - Rated voltage: u0/u 0.6/1 kV - Test voltage: 4 kV

Content: 100 Meter (€2.35* / 1 Meter)

€235.12*

Sheathed cable NYM-J 1x16 mm² 100m RM

- 100m ring NYM-J 1x16 PVC power cable according to DIN VDE 0279 part 603 - Conductor material: CU, bare - Outer diameter: approx. 9.3 mm- Conductor class: class 1 (stranded) - Number of cores: 1 - Core labelling: in accordance with VDE 0293 - Conductor nominal cross-section: 16 mm² - sheath colour: grey- flame retardancy: to VDE 0482-332-1-2/IEC 60332-1 - permissible operating temperature: on conductor 70°C - permissible external cable temperature, fixed: +70 °c - permissible external cable temperature, moving: -5 - +70 °c - rated voltage: u0/u 0.6/1 kV - test voltage: 4 kV

Content: 100 Meter (€2.55* / 1 Meter)

€254.80*

Hier ist eine alternative Formulierung:

NYM-J Mantelleitung 16 mm² – Günstige Preise und schneller Versand bei Ekabel24.de

NYM-J Mantelleitung – Diese Leitung eignet sich ideal für die Installation über, auf, in und unter Putz in trockenen, feuchten und nassen Umgebungen. Sie ist ebenso für die Verlegung in Mauerwerk und Beton geeignet, außer in gerütteltem oder gestampftem Beton. Im Außenbereich kann das Kabel ebenfalls verwendet werden, solange es vor direkter Sonneneinstrahlung geschützt ist – die Verlegung im Erdreich ist nicht zulässig.

Das "N" in der Typenbezeichnung weist auf ein genormtes Kabel hin. NYM-J Mantelleitung 16 mm² – Top-Preise und schnelle Lieferung bei Ekabel24.de.
