Network cable

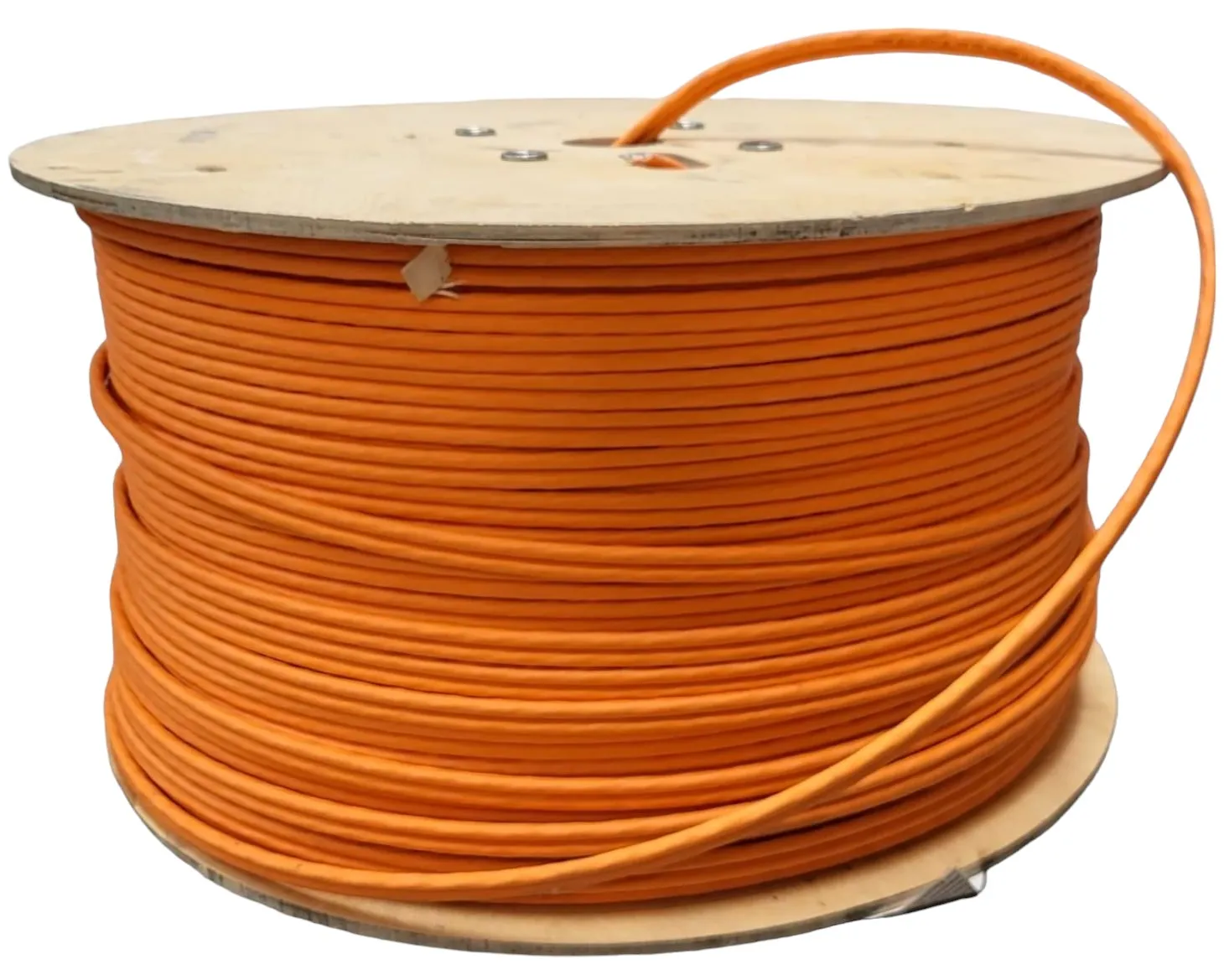

Faber® DL 1000 Cat.7 STP 4X2XAWG23 PIMF FRNC reel from 10 metresCPR performance class according to EN 50575By the metre! No cutting costs! Exchanges or returns are not possible for customised products. DcaSpecification/standard ISO/IEC 11801, EN 50173, EN 55022, EN 50288-4-1, EN 50167, EN 50169Conductor material Cu, bareCore insulation Cellular PEShield via stranding Cu braid, tinnedShield over stranding element FoilSheath material halogen-free polymer HM2Sheath colour orange RAL 2004Flame resistance VDE 0482-332-1-2/IEC 60332-1-2Smoke density DIN EN 61034/IEC 61034Halogen-free DIN EN 50267/IEC 60754Permissible external cable temperature, permanently installed, °C -20 - +70 °CPermissible external cable temperature, in motion, °C 0 - 50 °CBending radius, fixed 4 x ØBending radius, moving 8 x ØCharacteristic impedance 100 OhmCoupling resistance 5 Ohm/kmShortening factor (NVP value) 0.78 v/cCategory 7+Separation class (EN 50174-2) dCore identification Colour IEC 60708Conductor diameter 0.56 mmConductor resistance 75 Ohm/kmOuter diameter approx. 7.50 mmCombustion energy (fire load) 0.19 kWh/mTensile strength (laying) 98 NCopper number (de) 32Metal base Cu (de) 100 EUR/100 kgNet weight per 1000 52 kgUnit of measurement metreConductor diameter, mm 0.56 mmGOST/EAC yesCable shape (cross-section) roundSheath material halogen-free polymerHalogen-free yesOil resistant noColour orangeConductor class Class 1 = solidCore insulation cellular PE

Faber® DL 1000 STP Duplex Cat.7 2X4X2XAWG23 PIMF FRNC reel from 10 metresBy the metre! No cutting costs! Exchanges or returns are not possible for customised products. CPR performance class according to EN 50575 DcaSpecification/standard ISO/IEC 11801, EN 50173, EN 55022, EN 50288-4-1, EN 50167, EN 50169Conductor material Cu, bareCore insulation Cellular PEShield via stranding Cu braid, tinnedShield over stranding element FoilSheath material halogen-free polymer HM2Sheath colour orange RAL 2004Flame resistance VDE 0482-332-1-2/IEC 60332-1-2Smoke density DIN EN 61034/IEC 61034Halogen-free DIN EN 50267/IEC 60754Permissible external cable temperature, permanently installed, °C -20 - +70 °CPermissible external cable temperature, in motion, °C 0 - 50 °CBending radius, fixed 4 x ØBending radius, moving 8 x ØCharacteristic impedance 100 OhmCoupling resistance 5 Ohm/kmShortening factor (NVP value) 0.78 v/cCategory 7+Separation class (EN 50174-2) dCore identification Colour IEC 60708Conductor diameter 0.56 mmConductor resistance 75 Ohm/kmCable width approx. 15.2 mmCable height approx. 7.5 mmCombustion energy (fire load) 0.39 kWh/mTensile strength (laying) 196 NCopper number (de) 64Metal base Cu (de) 100 EUR/100 kgNet weight per 1000 104 kgUnit of measurement metreConductor diameter, mm 0.56 mmGOST/EAC yesSheath material halogen-free polymerCable shape (cross-section) twinHalogen-free yesOil-resistant noColour orangeConductor class Class 1 = solidCore insulation cellular PE

Faber® DL 1000 Cat.7 STP 4X2XAWG23 PIMF FRNC reelSpecification/standard: IEC 61156-5, EN 50173-1Conductor material: Cu, bareCore insulation: Cellular PEShield over stranding element: FoilShield over stranding: Cu braid, tinnedSheath material: PolyethyleneSheath colour: blackUV-resistant: yesPermissible external cable temperature, permanently installed: -30 - +60 °CPermissible external cable temperature, in motion: 0 - 50 °CMin. bending radius, fixed installation: 4 x ØBending radius, moving: 8 x ØCharacteristic impedance: 100 OhmShortening factor (NVP value): 0.78 v/cCategory: 7+Conductor diameter: 0.56 mmConductor resistance: 75 Ohm/kmOuter diameter approx.: 7.70 mmTensile strength (laying): 110 NCopper count (de): 36Metal base Cu (de): 100 EUR/100 kgNet weight per 1000: 49 kgUnit of measurement: metreCan be buried: yesCable shape (cross-section): roundHalogen-free: noOil-resistant: noConductor class: Class 1 = solidNote: By the metre! No cutting costs! Customised products cannot be exchanged or returned.

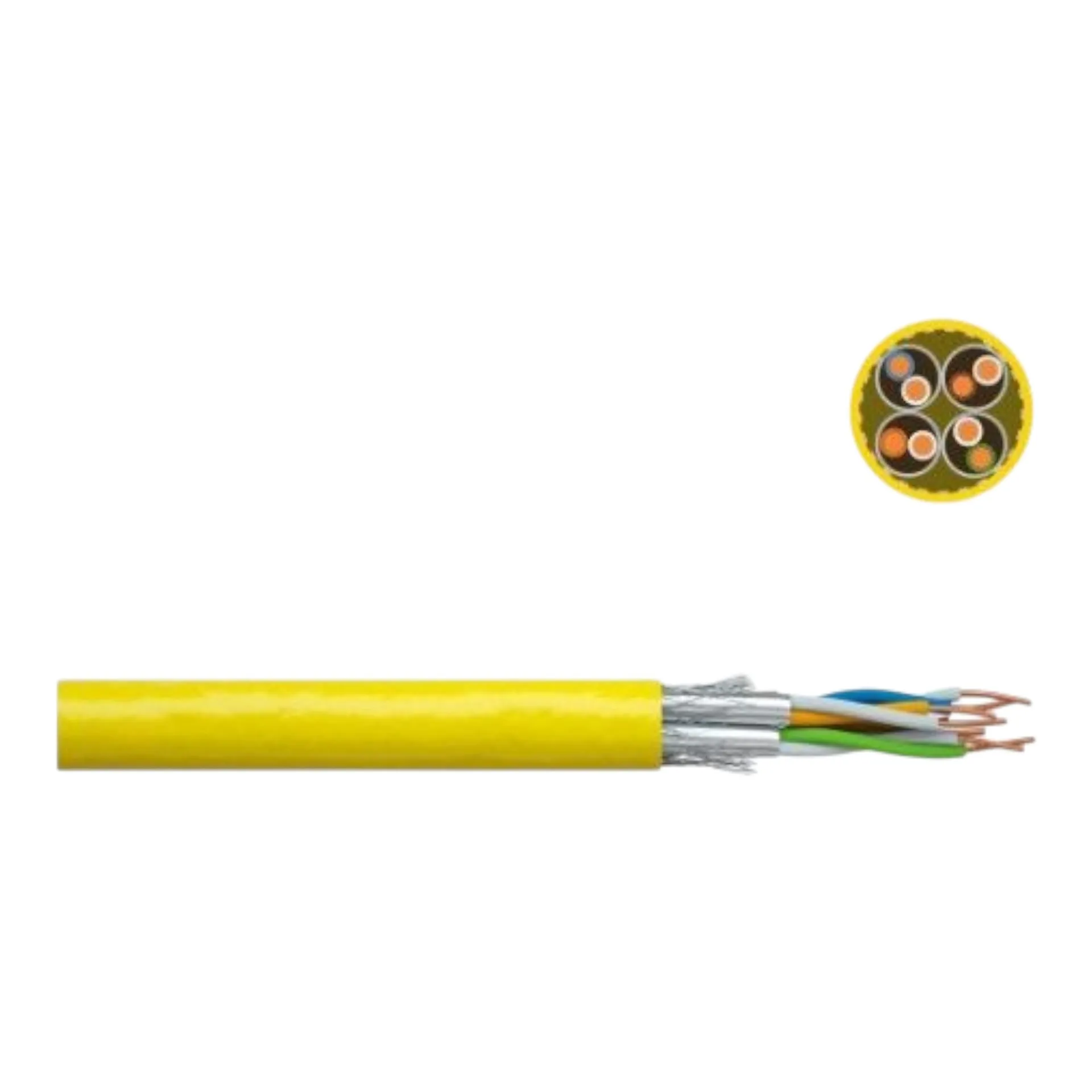

Cat.7ᴀ / STPCat.7ᴀ data cable STP 4x2xAWG23 foam skin, halogen-free, yellow - sold by the metreFor connecting IT system units in the tertiary range close to the workplace (up to 1200 MHz). Excellent EMC properties due to foil and tinned copper braiding. Sold by the metre, no cutting costs.Brief descriptionHigh-performance, halogen-free Cat.7ᴀ data cable with foam-skin core insulation and 30% shielding coverage (foil + tinned copper braiding). Suitable for network and building technology in the tertiary sector and for connections between floor distributors and workstations. Complies with EN 55022 EMC requirements; tinned braiding ensures a secure transition to shielded plugs. CPR / EN 50575Dca s1 d1 a1 StandardsIEC 61156-5, EN 50173-1 Conductor materialCu, bare Conductor classClass 1 - solid Core insulationFoam skin Core labellingColour according to IEC 60708 Shield (stranding element)Foil Shield (stranding)Copper braid, tinned (30 % coverage) Sheath materialHalogen-free special compound / polymer Sheath colourYellow Halogen-freeyes Flame retardancyVDE 0482-332-1-2 / IEC 60332-1-2 Smoke densityDIN EN 61034 / IEC 61034 Category / MHz7ᴀ - up to 1200 MHz NVP (shortening factor)0.76 v/c Outer diameterapprox. 7.50 mm Conductor diameter0.57 mm Insulation resistance5000 MΩ-km Min. bending radius (fixed)8 × Ø Bending radius (moving)4 × Ø Perm. temp. fixed installation-30 - +60 °C Perm. temp. in motion0 - +50 °C Tensile strength (installation)110 N Net weight / 1000 m65 kg Copper content (en)36 Metal base Cu (en)100 EUR / 100 kg Combustion energy (fire load)0.14 kWh/m Oil resistantno Shape (cross-section)round Note: By the metre! No cutting costs! Customised products cannot be exchanged or returned.Area of application & additional informationFor connecting IT system units in the workplace area (tertiary area), such as between floor distributors and the workplace. Complies with the requirements of EN 55022 and the guidelines of the European postal administration with regard to radio interference (EMC). The tinned braided shield provides an interference-free transition to shielded data plugs.

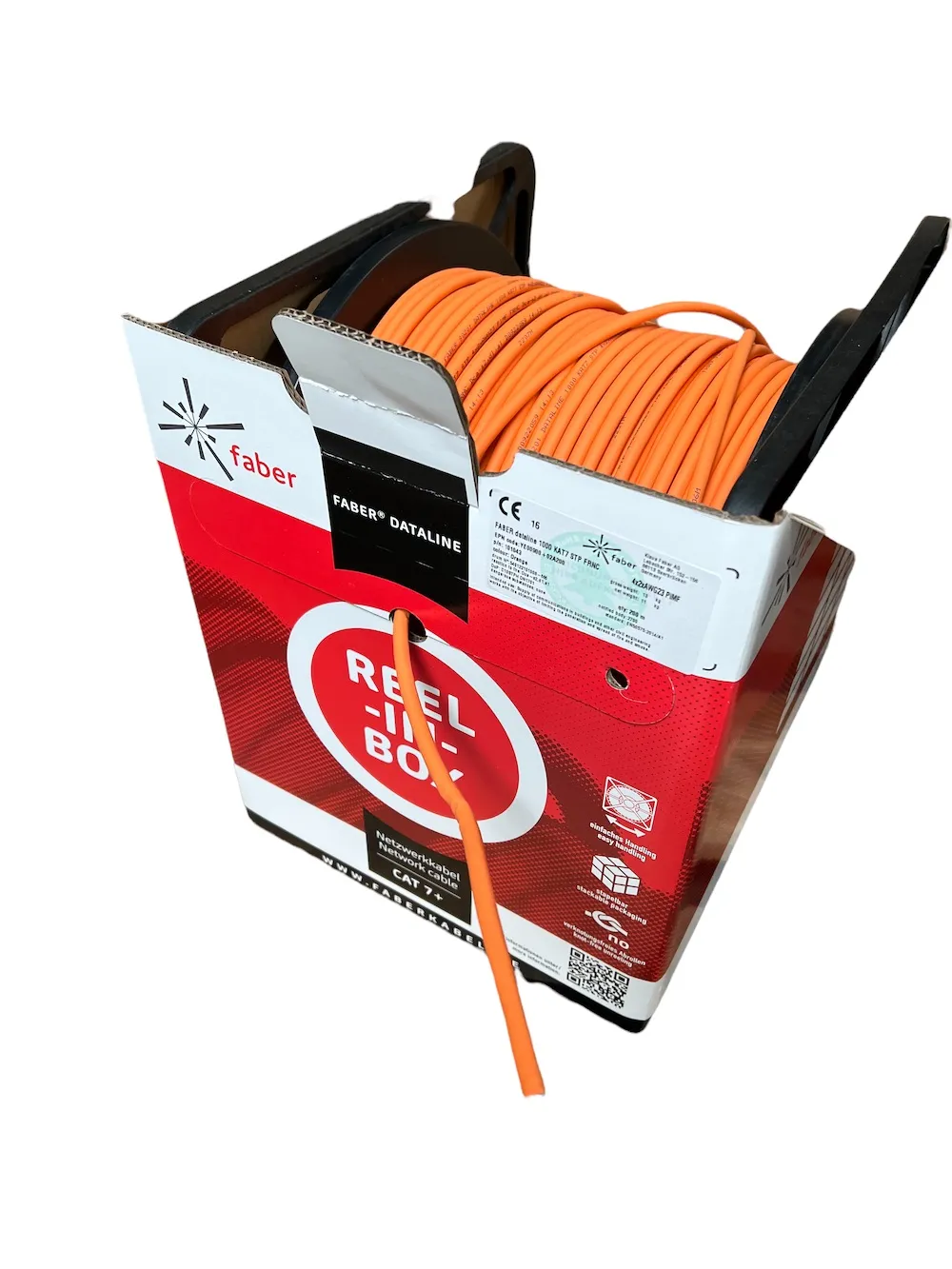

Faber® DL 1000 Cat.7 STP 4X2XAWG23 PIMF FRNC BOX 200M unwind boxCPR performance class according to EN 50575DcaSpecification/standard ISO/IEC 11801, EN 50173, EN 55022, EN 50288-4-1, EN 50167, EN 50169Conductor material Cu, bareCore insulation Cellular PEShield via stranding Cu braid, tinnedShield via stranding element FoilSheath material halogen-free polymer HM2Sheath colour orange RAL 2004Flame resistance VDE 0482-332-1-2/IEC 60332-1-2Smoke density DIN EN 61034/IEC 61034Halogen-free DIN EN 50267/IEC 60754Permissible external cable temperature, permanently installed, °C -20 - +70 °CPermissible external cable temperature, in motion, °C 0 - 50 °CBending radius, fixed 4 x ØBending radius, moving 8 x ØCharacteristic impedance 100 OhmCoupling resistance 5 Ohm/kmShortening factor (NVP value) 0.78 v/cCategory 7+Separation class (EN 50174-2) dCore identification Colour IEC 60708Conductor diameter 0.56 mmConductor resistance 75 Ohm/kmOuter diameter approx. 7.50 mmCombustion energy (fire load) 0.19 kWh/mTensile strength (laying) 98 NCopper number (de) 32Metal base Cu (de) 100 EUR/100 kgNet weight per 1000 52 kgUnit of measurement metreConductor diameter, mm 0.56 mmGOST/EAC yesCable shape (cross-section) roundSheath material halogen-free polymerHalogen-free yesOil-resistant noColour orangeConductor class Class 1 = solidCore insulation cellular PE

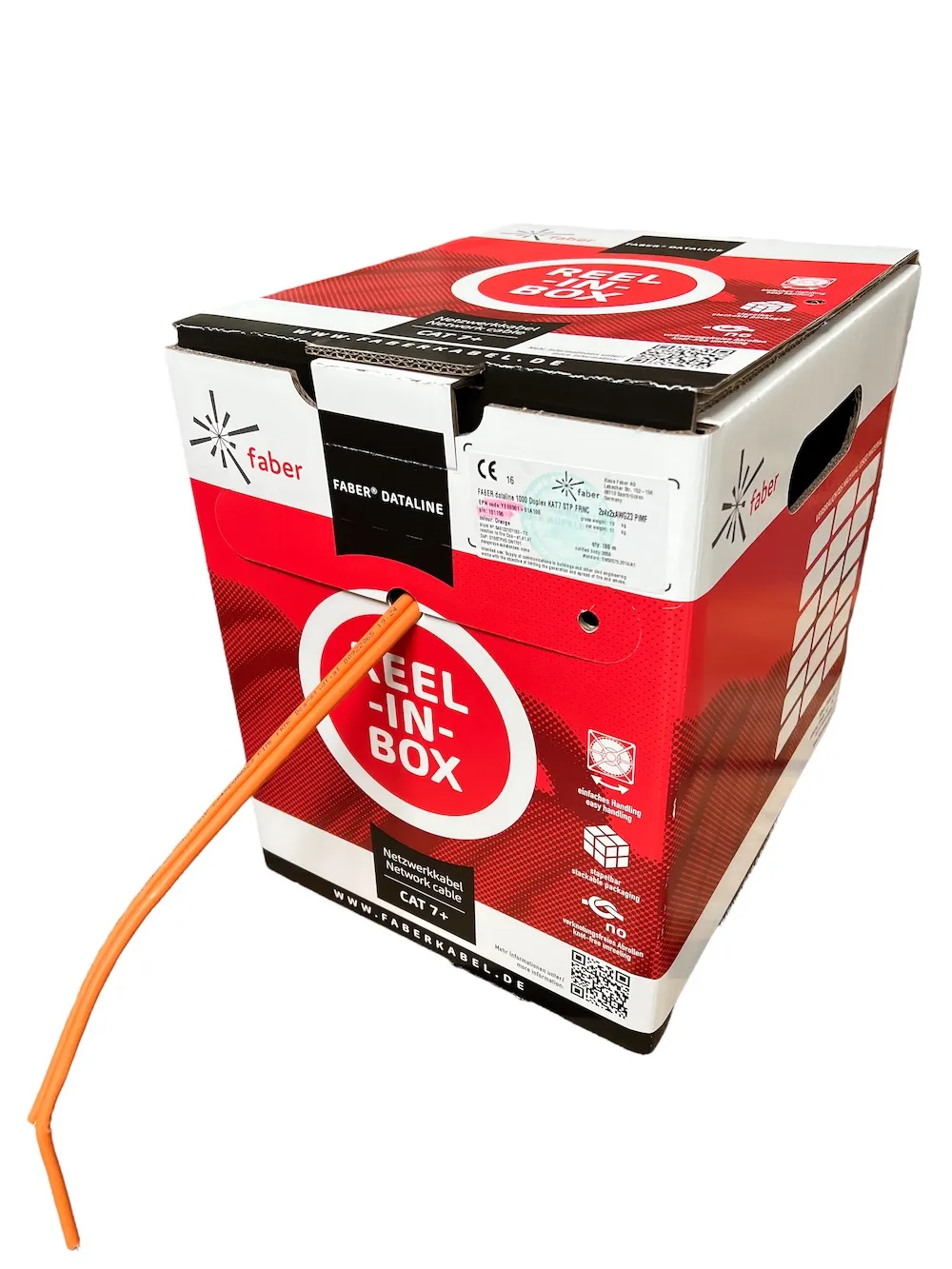

Faber® DL 1000 STP Duplex Cat.7 2X4X2XAWG23 PIMF FRNC BOX 100M CPR performance class according to EN 50575Dca Specification/standardISO/IEC 11801, EN 50173, EN 55022, EN 50288-4-1, EN 50167, EN 50169 Conductor materialCu, bare Core insulationCellular PE Shield via strandingCu braiding, tinned Shield over stranding elementFoil Sheath materialhalogen-free polymer HM2 Sheath colourorange RAL 2004 Flame retardancyVDE 0482-332-1-2/IEC 60332-1-2 Smoke densityDIN EN 61034/IEC 61034 Halogen-freeDIN EN 50267/IEC 60754 Permissible external cable temperature, permanently installed, °C-20 - +70 °C Permissible external cable temperature, in motion, °C0 - 50 °C Bending radius, fixed installation4 x Ø Bending radius, moving8 x Ø Characteristic impedance100 Ohm Coupling resistance5 Ohm/km Shortening factor (NVP value)0.78 v/c Category7+ Isolation class (EN 50174-2)d Core labellingColour IEC 60708 Conductor diameter0.56 mm Conductor resistance75 Ohm/km Conductor width approx.15.2 mm Cable height approx.7.5 mm Combustion energy (fire load)0.39 kWh/m Tensile strength (installation)196 N Copper number (de)64 Metal base Cu (de)100 EUR/100 kg Net weight per 1000104 kg Unit of measurementmetre Conductor diameter, mm0.56 mm GOST/EACyes Sheath materialhalogen-free polymer Cable shape (cross-section)twin Halogen-freeyes Oil resistantno colourorange colour Conductor classClass 1 = solid Core insulationcellular PE
