Cable reel

The Cable Reel H07RN-F 3G2.5 25m is a robust cable reel with a 25 metre long, flexible power cable. Ideal for construction sites, workshops and the garden. With a handy housing and an integrated handle, it is easy to transport. The 3x2.5 marking means that the cable consists of three cores, each with a cross-section of 2.5 square millimetres. Ideal for medium current loads.

The Cable Reel H07RN-F 3x1.5 50m is a robust cable reel with a 50 metre long, flexible power cable. Ideal for construction sites, workshops and the garden. With a handy housing and an integrated handle, it is easy to transport. The 3x1.5 marking means that the cable consists of three cores, each with a cross-section of 1.5 square millimetres. Ideal for medium current loads.

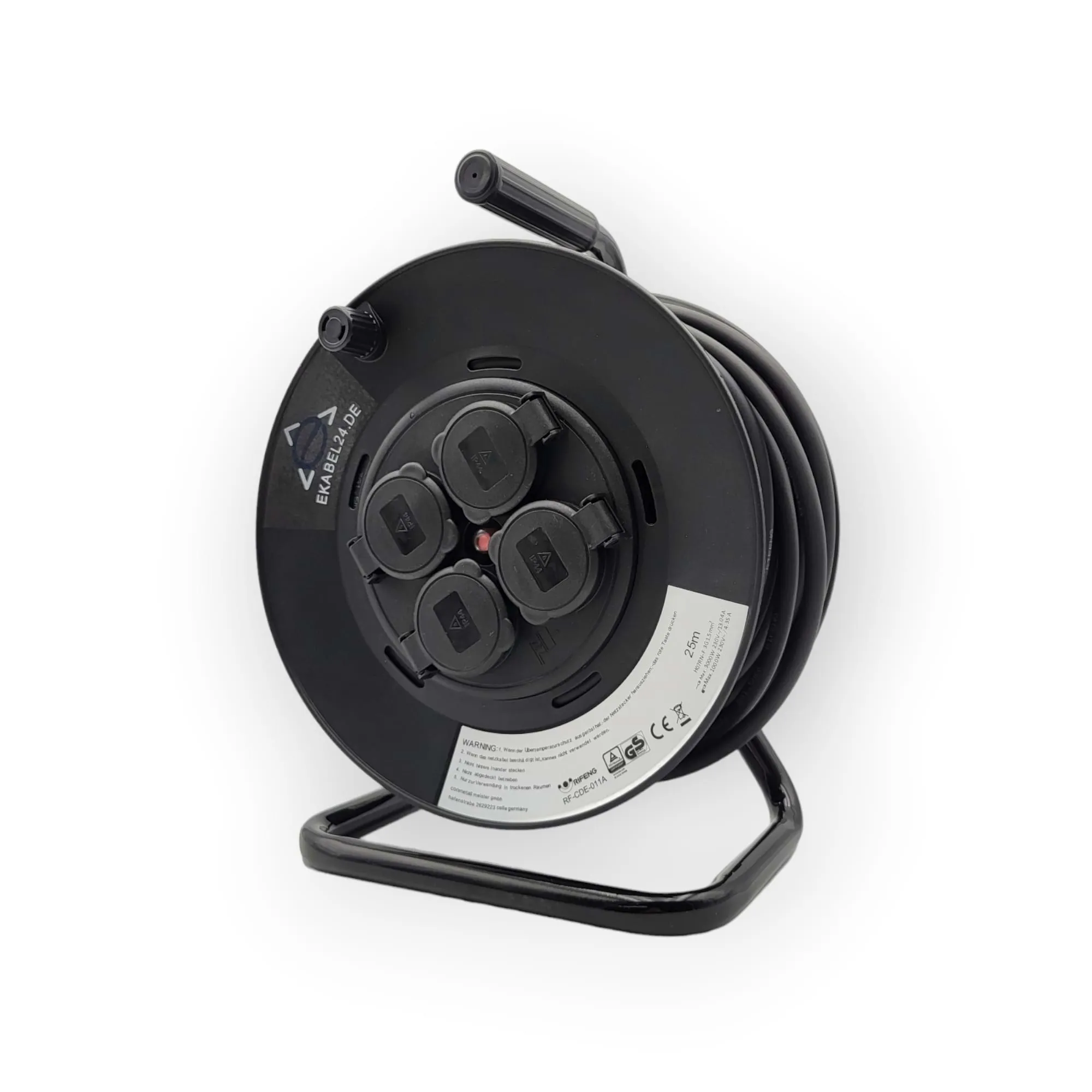

Cable reel with 4 splash-proof sockets and sealing caps, type H07RN-F 3G1.5, cable length 25 metres.The Cable Reel H07RN-F 3G1.5 25m is a robust cable reel with a 25 metre long, flexible power cable. Ideal for construction sites, workshops and the garden. With a handy housing and an integrated handle, it is easy to transport. The 3x1.5 marking means that the cable consists of three cores, each with a cross-section of 1.5 square millimetres. Ideal for medium current loads.

The Cable Reel H07RN-F 3G2.5 30m is a robust cable reel with a 30 metre long, flexible power cable. Ideal for construction sites, workshops and the garden. With a handy housing and an integrated handle, it is easy to transport. The 3x2.5 marking means that the cable consists of three cores, each with a cross-section of 2.5 square millimetres. Ideal for medium current loads.

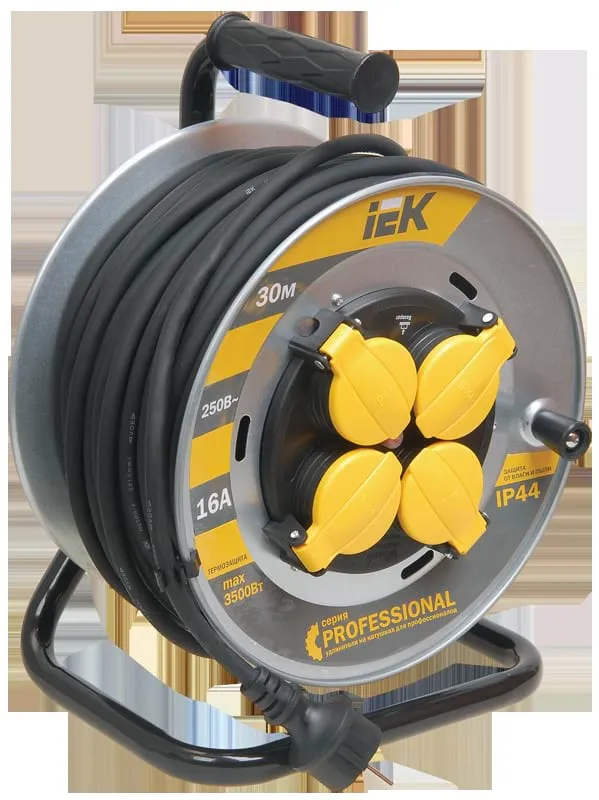

With an extension cable on a reel, electrical appliances can be conveniently connected up to 30 metres away from a stationary socket. Indispensable on the building site, in the garden, in small businesses, in leisure parks, in industry and in everyday life.The thermal relay protects against exceeding the maximum permissible connected load.The insulating rubberised handle ensures safe and comfortable operation.The closed frame is made of tubular steel.All extension cables have a moulded plug in the same colour as the cable.All the necessary technical information for operating extension cables on the reel is printed on the front of the case and on the sticker.Technical characteristicsRated voltage: 230VRated current: 16AConductor cross-section: 1.5 mm²Max. Load power with unwound cable: 3500 WMax. Load power with spiral cable: 1750 WProtection class - IP: IP44Cable length: 30 mNumber of sockets according to European standard: 4Number of sockets with earthing contact: 4Number of cores: 3Equipped with cable or wire: ORS/H05RR-F (rubber-insulated)Housing material: Sheet steel/ABS plasticTotal number of sockets: 4Climate variant: U1Weight: 4.4 kgProtection class against electric shock: IBasic product data:IEK brand portable cable reel with overheating protection (hereinafter referred to as the portable power cord) is used to connect remote electrical loads to a single-phase power supply with a voltage of 230 V and a frequency of 50 Hz.The portable power cable fulfils the requirements of the technical regulations LVD 2014/35/EU, RoHS 2011/65/EU, (EU) 2015/863.Scope of application of the portable power cable: temporary power supply in buildings (portable power cable with IP20 protection) and outdoors (portable power cable with IP44 protection) of portable, mobile electrical appliances and electrical installations.Safety precautions:Portable power cords from the INDUSTRIAL, INDUSTRIAL PLUS and PROFESSIONAL series fulfil Class I in accordance with IEC 61140.Portable power cables from the GARDEN series fulfil Class II. Regularly check the electrical connections and the integrity of the flexible cable.During operation, the portable power cord must be installed away from the chemically active environment, flammable and highly flammable objects.When operating the portable power cord in sub-zero temperatures, the cable should be unwound and wound onto the reel indoors when the air temperature is positive.When using a portable power cord with an uncoiled cable, keep the cable away from sharp and cutting objects that may damage it.Prohibited:To operate a portable power cord with mechanical damage to the housing and flexible cord. To disassemble the product.To connect loads that exceed the permissible total power to the portable power cord. To connect the portable power cord to a damaged socket.Caution:Avoid bending and impact loads on the cable when operating the portable power cord in sub-zero temperatures.The portable power cord has a built-in thermal switch, which is controlled by the "Return" button and protects the flexible cord from overheating if the permissible load is exceeded.If the portable power cord is disconnected (the thermal switch trips) when the allowable heating temperature of the flexible cord is exceeded, the following actions should be taken:- After 1-2 minutes (the time required for the thermal bimetal to cool down), press the red "Return" button on the front of the portable power cord housing;- If the thermal switch is switched off again after pressing the "Return" button, this is necessary to reduce the total power of the connected load.

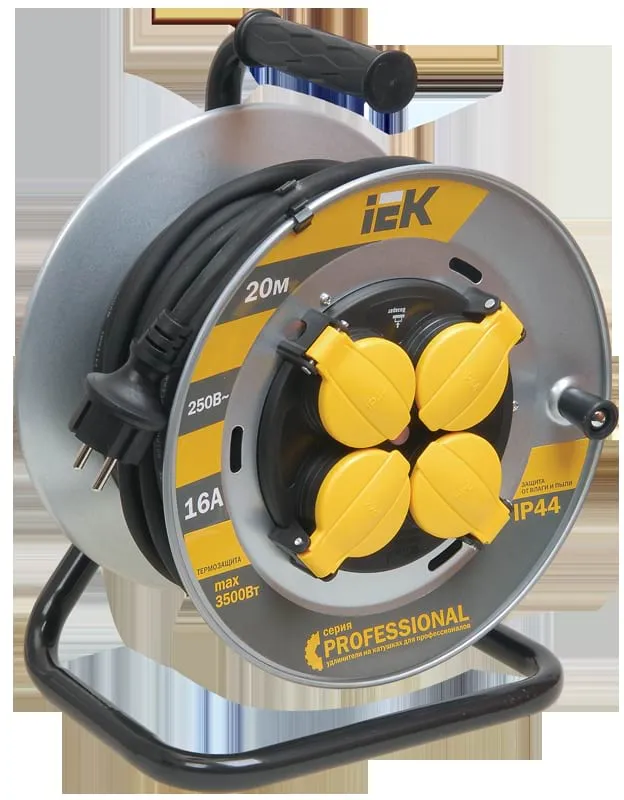

With an extension cable on a reel, electrical appliances can be conveniently connected up to 20 metres away from a stationary socket. Indispensable on the building site, in the garden, in small businesses, in leisure parks, in industry and in everyday life.The thermal relay protects against exceeding the maximum permissible connected load.The insulating rubberised handle ensures safe and comfortable operation.The closed frame is made of tubular steel.All extension cables have a moulded plug in the same colour as the cable.All the necessary technical information for operating extension cables on the reel is printed on the front of the case and on the sticker.Technical characteristicsRated voltage: 230VRated current: 16AConductor cross-section: 1.5 mm²Max. Load power with unwound cable: 3500 WMax. Load power with spiral cable: 1750 WProtection class - IP: IP44Cable length: 20 mNumber of sockets according to European standard: 4Number of sockets with earthing contact: 4Number of cores: 3Equipped with cable or wire: ORS/H05RR-F (rubber-insulated)Housing material: Sheet steel/ABS plasticTotal number of sockets: 4Climate variant: U1Weight: 4.4 kgProtection class against electric shock: IBasic product data:IEK brand portable cable reel with overheating protection (hereinafter referred to as the portable power cord) is used to connect remote electrical loads to a single-phase power supply with a voltage of 230 V and a frequency of 50 Hz.The portable power cable fulfils the requirements of the technical regulations LVD 2014/35/EU, RoHS 2011/65/EU, (EU) 2015/863.Scope of application of the portable power cable: temporary power supply in buildings (portable power cable with IP20 protection) and outdoors (portable power cable with IP44 protection) of portable, mobile electrical appliances and electrical installations.Safety precautions:Portable power cords from the INDUSTRIAL, INDUSTRIAL PLUS and PROFESSIONAL series fulfil Class I in accordance with IEC 61140.Portable power cables from the GARDEN series fulfil Class II. Regularly check the electrical connections and the integrity of the flexible cable.During operation, the portable power cord must be installed away from the chemically active environment, flammable and highly flammable objects.When operating the portable power cord in sub-zero temperatures, the cable should be unwound and wound onto the reel indoors when the air temperature is positive.When using a portable power cord with an uncoiled cable, keep the cable away from sharp and cutting objects that may damage it.Prohibited:To operate a portable power cord with mechanical damage to the housing and flexible cord. To disassemble the product.To connect loads that exceed the permissible total power to the portable power cord. To connect the portable power cord to a damaged socket.Caution:Avoid bending and impact loads on the cable when operating the portable power cord in sub-zero temperatures.The portable power cord has a built-in thermal switch, which is controlled by the "Return" button and protects the flexible cord from overheating if the permissible load is exceeded.If the portable power cord is disconnected (the thermal switch trips) when the allowable heating temperature of the flexible cord is exceeded, the following actions should be taken:- After 1-2 minutes (the time required for the thermal bimetal to cool down), press the red "Return" button on the front of the portable power cord housing;- If the thermal switch is switched off again after pressing the "Return" button, this is necessary to reduce the total power of the connected load.
