Welcome to our comprehensive guide on the Single Core Cable H07V-K 10 mm². Whether you're looking for a reliable single core flexible cable 10mm2 – here you'll find all the information on technical specifications, applications, advantages, and a detailed comparison. As experts in electrical cables at ekabel24.de, we share our knowledge to help you make the best choice. This pillar page helps you outperform the competition and make informed decisions.
What is a Single Core Cable H07V-K 10 mm²?
The Single Core Cable H07V-K 10 mm² is a flexible, fine-stranded single conductor (also known as 10mm2 stranded wire or flexible wire 10mm2), made from high-quality copper conductor and insulated with PVC. It is perfect for applications requiring flexibility and reliability, such as in switchgear, distribution boards, or machines. Compared to rigid cables, the H07V-K variant offers higher bendability, making installation easier.
Technical Specifications
Here is an overview of the most important data for the 10 mm2 cable:
| Property | Description |
|---|---|
| Conductor Material | Fine-stranded Copper (Class 5) |
| Insulation | PVC (Polyvinyl Chloride) |
| Rated Voltage | 450/750 V |
| Temperature Range | Max. +70°C at the Conductor |
| Standards | DIN EN 50525-2-31 (VDE 0285-525-2-31):2012-01; EN 50525-2-31:2011 |
| Cross-Section | 10 mm² |
| Outer Diameter (with Insulation) | Approx. 5.6 - 6.8 mm (depending on manufacturer) |
| Current Carrying Capacity | Up to 80 A (depending on installation method and environment) |
| Available Colors | Black, Green-Yellow, Blue, Brown, Red |
| Properties | Flame-retardant, self-extinguishing, halogen-free optional variants |
For detailed products: Check out our Single Core Cable H07V-K 10 mm² – starting from 1.58 €/meter.
Applications of the Single Core Cable H07V-K 10 mm²
The 10mm2 wire is versatile:
- Internal wiring of devices, switchgear, and distribution boards (e.g., meter cabinet).
- Protected installation in conduits, on/in/under plaster, or in installation channels.
- In lighting systems, machine tools, conveyor technology, and automation.
- Automotive sector, CNC machining centers, and PV systems (as battery cable 10mm2 or grounding cable 10mm2).
- For high current loads in dry rooms, such as power cable 10 sq mm.
Avoid use in damp environments without additional protection.
Advantages of the H07V-K 10 mm² in Comparison
Compared to smaller cross-sections (e.g., 6 mm²) or rigid cables (H07V-U), the 10mm2 single core cable offers higher current carrying capacity and flexibility. Here is a comparison:
| Cross-Section | Current Carrying Capacity (A) | Diameter (mm) | Flexibility | Typical Application |
|---|---|---|---|---|
| 6 mm² | Up to 60 A | 4.5-5.5 mm | High | Smaller Distributions |
| 10 mm² (H07V-K) | Up to 80 A | 5.6-6.8 mm | Very High | Switchgear, Machines |
| 16 mm² | Up to 100 A | 6.5-7.5 mm | High | High Loads |
Advantages: High flexibility reduces breakage risk, flame-retardant for safety, cost-effective at ekabel24.de.
Buyer's Guide: How to Choose the Right 10mm2 Cable
Consider the following:
- Current Requirement: Ideal for up to 80 A.
- Color: Blue for neutral conductor, green-yellow for ground, black/brown for phase.

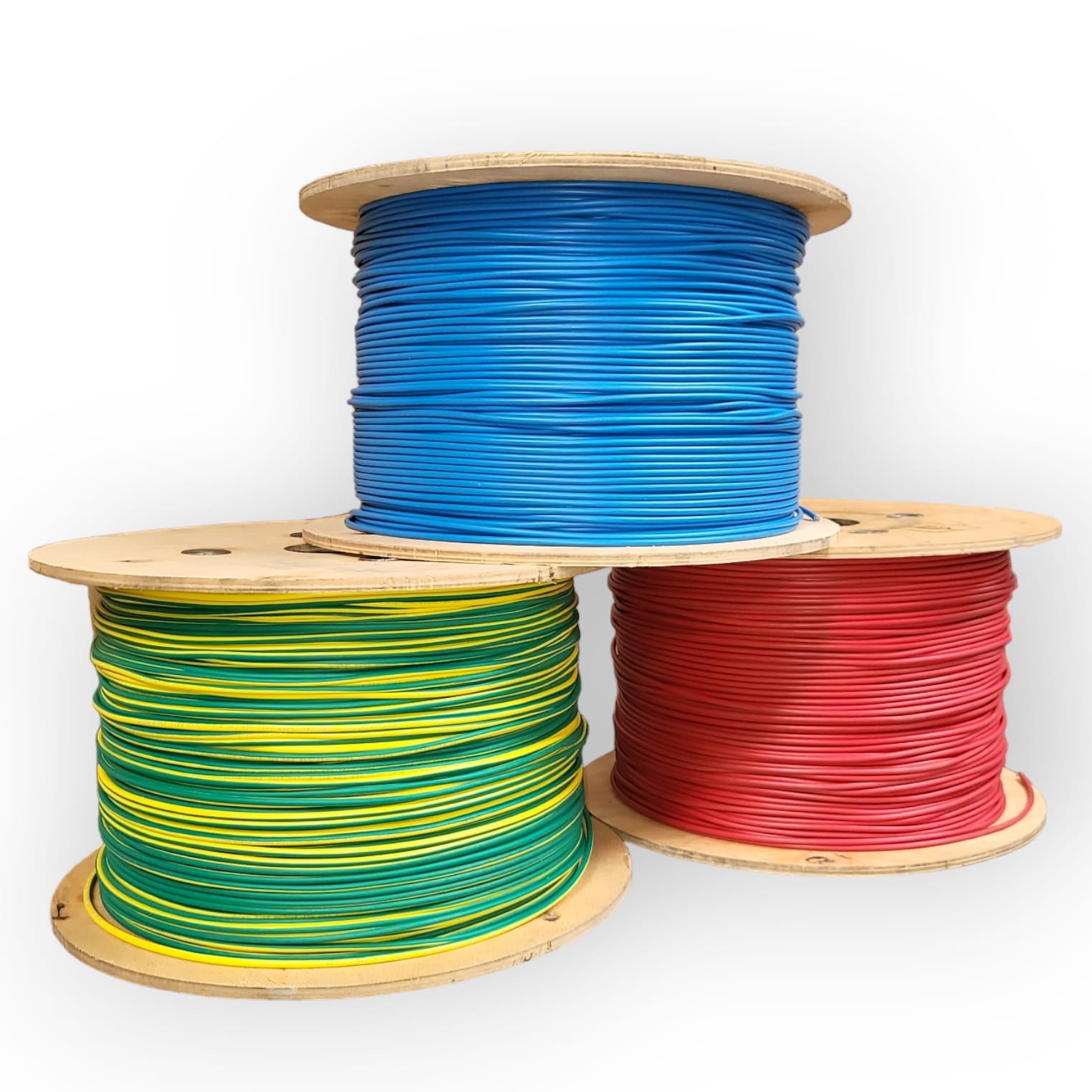

- Length: Available as cut-to-length, 100m ring, or 500m drum.
- Installation: Use ferrules for secure connections. Observe VDE standards.
- Price: Starting from 1.58 €/m – Buy now.
Tip: For 10mm2 cable diameter with insulation, measure approx. 6 mm.
FAQ on the Single Core Cable H07V-K 10 mm²
- What is the diameter of a 10mm2 cable with insulation?
- The outer diameter is approximately 5.6-6.8 mm, depending on the manufacturer.
- What is the current carrying capacity of a 10mm2 cable?
- Up to 80 A in open installation, but check the installation method.
- Is the H07V-K 10mm2 halogen-free?
- Not standard, but variants are available. Ours is flame-retardant.
- Can I use 10mm2 cable for PV systems?
- Yes, as grounding cable or battery cable, as long as it is protected.
- How does H07V-K differ from H07V-U?
- H07V-K is flexible (fine-stranded), H07V-U is rigid (solid).
- Where can I buy Single Core Cable H07V-K 10 mm²?
- At ekabel24.de – Order here.
- What does 10 sq mm cable cost?
- Starting from 1.58 € per meter, with discounts for bulk buyers.
- Is 10mm2 cable suitable for meter cabinets?
- Yes, ideal for wiring in distribution boards and switchgear.
Do you have further questions? Contact us at +49 221 - 42306965.
Conclusion: The Single Core Cable H07V-K 10 mm² is a top choice for professional electrical installations. Order now at ekabel24.de and benefit from fast shipping and B2B discounts.
Important Note on Price Accuracy:
All prices mentioned in this post (e.g., starting from 1.58 €/meter for the Single Core Cable H07V-K 10 mm²) are current as of the publication date of this article on January 30, 2026. Prices may change due to fluctuations in raw materials, exchange rates, supply chain developments, or promotions. We therefore recommend checking the exact current price and availability directly on the product page: Single Core Cable H07V-K 10 mm² at ekabel24.de. This way, you always get the binding, up-to-date price including any discounts for bulk buyers or B2B customers.
