Motion detector

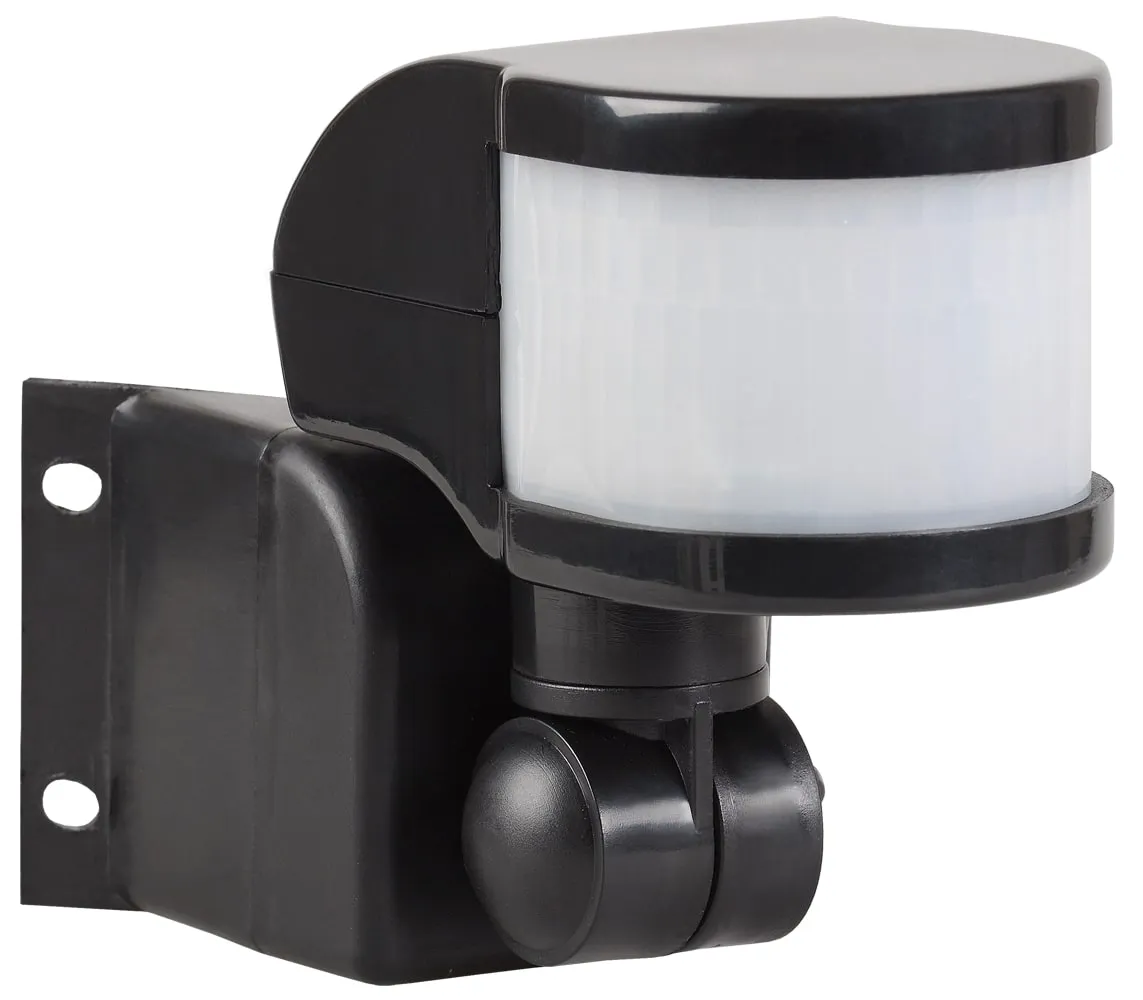

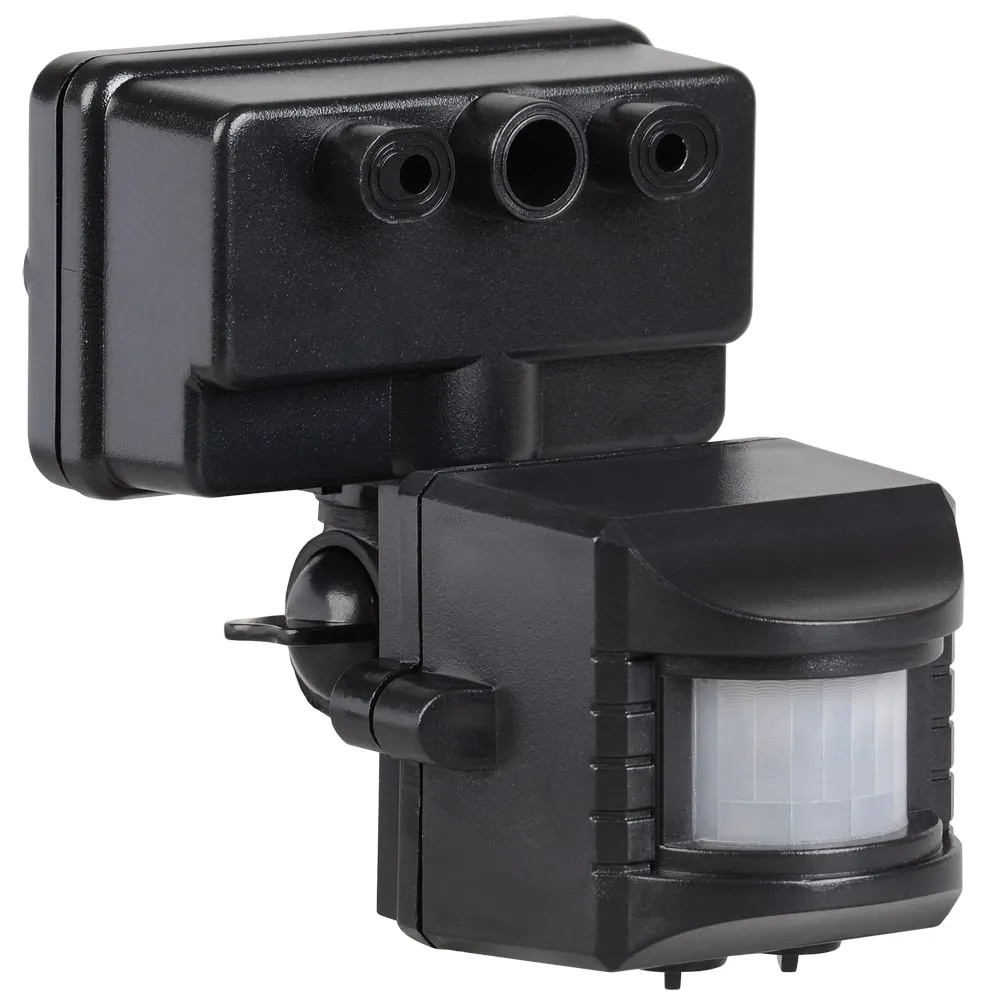

Welcome to the use of the infrared motion detector.This product uses high-sensitivity detectors, integrated circuits and SMD. It combines automatic, practical, safe, energy-saving and convenient functions. It uses human infrared radiation as a signal source. When a living creature enters the detection field, the load/light is started immediately. It can distinguish day and night automatically. It is easy to install and its use is wide-ranging.DD017, DD018B, DD012, DD019, DD009, DD008, DD010:Voltage: 220-240V AC 50HzRated load: 1100W incandescent lampRated load: 300W LED and energy-saving lamps Ambient light: 3 - 2000 LUX (adjustable)Switch-off delay: min. 10 sec. - max. 7 min.Working field: (DD017 - 120°, DD018B - 270°, DD012 - 180°, DD019 - 120°, DD009 - 180°, DD008 - 180°, DD010 - 180°)Motion detection up to 12.0mAmbient temperature: -20° C to +40° CHumidity: <93% (non-condensing)Installation height: 1.82m to 2.5mIndoor installation protection class IP44Power consumption during operation: 0.45W DD013 white 180° Voltage: 220-240V AC 50HzNominal load: 1200W incandescent lampNominal load: 300W LED and energy-saving lamps Ambient light: 3 - 2000 LUX (adjustable)Switch-off delay: min. 10 sec. - max. 15 min.Working field: 180°Motion detection up to 12.0mAmbient temperature: -20° C to +40° CHumidity: <93% (non-condensing)Installation height: 1.82m to 2.5mIndoor installation protection class IP65Power consumption during operation: 0.45W

The body of the sensor is made of flame-retardant plastic (polycarbonate) and an electromechanical relay is used as the load switching element.Technical characteristicsMaximum switching capacity 1200 WMaximum load power for incandescent lamps 1200 WMaximum load power for luminous non-starting lamps 300VA _Optimum installation height 2.2...4 mMaximum transmission distance per side 6 mMaximum transmission distance on the front 6 mSensor range ≤ 6 mMaximum switch-on time 15±2 minMin. switch-on time 10±3 secIllumination threshold 3...2000 luxHorizontal detection angle 360 °Vertical detection angle 120 °Nominal voltage 230 VFrequency 50 HertzCross-section of the connected conductors 0.75...1.5 mm²Maximum power on 0.45 WThreshold regulation by senses NoIR sensitivity of the object NoMotion detection speed 0.6...1.5 m in sSetting the light threshold YesRange adjustment NoTemperature -25...45 °CDepth 43.0 mmOD 88mm _Constant light control YesHVAC or air conditioning NoForce shutdown NoAnimal reaction zone NoSlip protection NoNetworkable NoStep monitoring NoShunt switch NoSuitable for wireless transmission NoRemote control NoWith signalling device NoFunction for determining the optimum brightness value NoDimming function with dimming mechanism NoTransparent NoSupplements the control input NoAlarm functions No

Welcome to use the infrared motion detector, this product uses high-sensitivity detectors, integrated circuits and SMD. It combines automatic, practical, safe, energy-saving and convenient functions. It uses human infrared radiation as a signal source. When a living creature enters the detection field, the load/light will be started immediately. It can distinguish day and night automatically. It is easy to install and its use is wide-ranging.DD017, DD018B, DD012, DD019, DD009, DD008, DD010:Voltage: 220-240V AC 50HzRated load: 1100W incandescent lampRated load: 300W LED and energy-saving lamps Ambient light: 3 - 2000 LUX (adjustable)Switch-off delay: min. 10 sec. - max. 7 min.Working field: (DD017 - 120°, DD018B - 270°, DD012 - 180°, DD019 - 120°, DD009 - 180°, DD008 - 180°, DD010 - 180°)Motion detection up to 12.0mAmbient temperature: -20° C to +40° CHumidity: <93% (non-condensing)Installation height: 1.82m to 2.5mIndoor installation protection class IP44Power consumption during operation: 0.45W DD013 white 180° Voltage: 220-240V AC 50HzNominal load: 1200W incandescent lampNominal load: 300W LED and energy-saving lamps Ambient light: 3 - 2000 LUX (adjustable)Switch-off delay: min. 10 sec. - max. 15 min.Working field: 180°Motion detection up to 12.0mAmbient temperature: -20° C to +40° CHumidity: <93% (non-condensing)Installation height: 1.82m to 2.5mIndoor installation protection class IP65Power consumption during operation: 0.45W

The body of the sensor is made of flame-retardant plastic (polycarbonate).An electromechanical relay is used as the load switching element.Technical characteristicsMaximum switching capacity 1100 WMaximum load power for incandescent lamps 1100 WMaximum load power for luminous, non-starting lamps 300VA _Optimum installation height 1.8...2.5 mMaximum transmission distance per side 12 mMaximum transmission distance on the front 12 mMaximum duty cycle 7±2 minMin. switch-on time 10±3 secIllumination threshold 3...2000 luxHorizontal detection angle 180 °Nominal voltage 230 VFrequency 50 HertzCross-section of the connected conductors 0.75...1.5 mm²Maximum power on 0.45 WThreshold regulation by senses YesIR sensitivity of the object YesSetting the light threshold YesRange adjustment NoTemperature -25...45 °CWidth 87.0 mmHeight 145.0 mmDepth 125.0 mm _Constant light control YesHVAC or air conditioning NoForce shutdown NoAnimal reaction zone NoAnti-slip protection NoNetworkable NoStep monitoring NoShunt switch NoSuitable for wireless transmission NoRemote control NoWith signalling device NoFunction for determining the optimum brightness value NoDimming function with dimming mechanism NoTransparent NoSupplements the control input NoAlarm functions NoMaximum object detection range 12 m

Welcome to the use of the infrared motion detector.This product uses high-sensitivity detectors, integrated circuits and SMD. It combines automatic, practical, safe, energy-saving and convenient functions. It uses human infrared radiation as a signal source. When a living creature enters the detection field, the load/light is started immediately. It can distinguish day and night automatically. It is easy to install and its use is wide-ranging.DD017, DD018B, DD012, DD019, DD009, DD008, DD010:Voltage: 220-240V AC 50HzRated load: 1100W incandescent lampRated load: 300W LED and energy-saving lamps Ambient light: 3 - 2000 LUX (adjustable)Switch-off delay: min. 10 sec. - max. 7 min.Working field: (DD017 - 120°, DD018B - 270°, DD012 - 180°, DD019 - 120°, DD009 - 180°, DD008 - 180°, DD010 - 180°)Motion detection up to 12.0mAmbient temperature: -20° C to +40° CHumidity: <93% (non-condensing)Installation height: 1.82m to 2.5mIndoor installation protection class IP44Power consumption during operation: 0.45W DD013 white 180° Voltage: 220-240V AC 50HzNominal load: 1200W incandescent lampRated load: 300W LED and energy-saving lamps Ambient light: 3 - 2000 LUX (adjustable)Switch-off delay: min. 10 sec. - max. 15 min.Working field: 180°Motion detection up to 12.0mAmbient temperature: -20° C to +40° CHumidity: <93% (non-condensing)Installation height: 1.82m to 2.5mIndoor installation protection class IP44Power consumption during operation: 0.45W

Welcome to use the infrared motion detector, this product uses high-sensitivity detectors, integrated circuits and SMD. It combines automatic, practical, safe, energy-saving and convenient functions. It uses human infrared radiation as a signal source. When a living creature enters the detection field, the load/light will be started immediately. It can distinguish day and night automatically. It is easy to install and its use is wide-ranging.DD017, DD018B, DD012, DD019, DD009, DD008, DD010:Voltage: 220-240V AC 50HzRated load: 1100W incandescent lampRated load: 300W LED and energy-saving lamps Ambient light: 3 - 2000 LUX (adjustable)Switch-off delay: min. 10 sec. - max. 7 min.Working field: (DD017 - 120°, DD018B - 270°, DD012 - 180°, DD019 - 120°, DD009 - 180°, DD008 - 180°, DD010 - 180°)Motion detection up to 12.0mAmbient temperature: -20° C to +40° CHumidity: <93% (non-condensing)Installation height: 1.82m to 2.5mIndoor installation protection class IP44Power consumption during operation: 0.45W DD013 white 180° Voltage: 220-240V AC 50HzNominal load: 1200W incandescent lampNominal load: 300W LED and energy-saving lamps Ambient light: 3 - 2000 LUX (adjustable)Switch-off delay: min. 10 sec. - max. 15 min.Working field: 180°Motion detection up to 12.0mAmbient temperature: -20° C to +40° CHumidity: <93% (non-condensing)Installation height: 1.82m to 2.5mIndoor installation protection class IP65Power consumption during operation: 0.45W

The body of the sensor is made of flame-retardant plastic (polycarbonate) and an electromechanical relay is used as the load switching element.Technical characteristicsMaximum switching capacity 1100 WMaximum load power for incandescent lamps 1100 WMaximum load power for luminous non-starting lamps 300VA _Optimum installation height 2.2...4 mMaximum transmission distance per side 6 mMaximum transmission distance on the front 6 mMaximum duty cycle 7±2 minMin. switch-on time 10±3 secIllumination threshold 3...2000 luxHorizontal detection angle 360 °Vertical detection angle 120 °Nominal voltage 230 VFrequency 50 HertzCross-section of the connected conductors 0.75...1.5 mm²Maximum power on 1.00 WThreshold regulation by senses YesIR sensitivity of the object YesLight threshold adjustment YesRange adjustment NoTemperature -25...45 °CDepth 58.8mm _OD 115mm _Constant light control YesHVAC or air conditioning NoForce shutdown NoAnimal reaction zone NoAnti-slip protection NoNetworkable NoStep monitoring NoShunt switch NoSuitable for wireless transmission NoRemote control NoWith signalling device YesFunction for determining the optimum brightness value NoDimming function with dimming mechanism NoTransparent NoSupplements the control input NoAlarm functions NoMaximum object detection range 6 m

Welcome to use the infrared motion detector, this product uses high-sensitivity detectors, integrated circuits and SMD. It combines automatic, practical, safe, energy-saving and convenient functions. It uses human infrared radiation as a signal source. When a living creature enters the detection field, the load/light will be started immediately. It can distinguish day and night automatically. It is easy to install and its use is wide-ranging.DD017, DD018B, DD012, DD019, DD009, DD008, DD010:Voltage: 220-240V AC 50HzRated load: 1100W incandescent lampRated load: 300W LED and energy-saving lamps Ambient light: 3 - 2000 LUX (adjustable)Switch-off delay: min. 10 sec. - max. 7 min.Working field: (DD017 - 120°, DD018B - 270°, DD012 - 180°, DD019 - 120°, DD009 - 180°, DD008 - 180°, DD010 - 180°)Motion detection up to 12.0mAmbient temperature: -20° C to +40° CHumidity: <93% (non-condensing)Installation height: 1.82m to 2.5mIndoor installation protection class IP44Power consumption during operation: 0.45W DD013 white 180° Voltage: 220-240V AC 50HzNominal load: 1200W incandescent lampNominal load: 300W LED and energy-saving lamps Ambient light: 3 - 2000 LUX (adjustable)Switch-off delay: min. 10 sec. - max. 15 min.Working field: 180°Motion detection up to 12.0mAmbient temperature: -20° C to +40° CHumidity: <93% (non-condensing)Installation height: 1.82m to 2.5mIndoor installation protection class IP65Power consumption during operation: 0.45W

Welcome to use the infrared motion detector, this product uses high-sensitivity detectors, integrated circuits and SMD. It combines automatic, practical, safe, energy-saving and convenient functions. It uses human infrared radiation as a signal source. When a living creature enters the detection field, the load/light will be started immediately. It can distinguish day and night automatically. It is easy to install and its use is wide-ranging.DD017, DD018B, DD012, DD019, DD009, DD008, DD010:Voltage: 220-240V AC 50HzRated load: 1100W incandescent lampRated load: 300W LED and energy-saving lamps Ambient light: 3 - 2000 LUX (adjustable)Switch-off delay: min. 10 sec. - max. 7 min.Working field: (DD017 - 120°, DD018B - 270°, DD012 - 180°, DD019 - 120°, DD009 - 180°, DD008 - 180°, DD010 - 180°)Motion detection up to 12.0mAmbient temperature: -20° C to +40° CHumidity: <93% (non-condensing)Installation height: 1.82m to 2.5mIndoor installation protection class IP44Power consumption during operation: 0.45W DD013 white 180° Voltage: 220-240V AC 50HzNominal load: 1200W incandescent lampNominal load: 300W LED and energy-saving lamps Ambient light: 3 - 2000 LUX (adjustable)Switch-off delay: min. 10 sec. - max. 15 min.Working field: 180°Motion detection up to 12.0mAmbient temperature: -20° C to +40° CHumidity: <93% (non-condensing)Installation height: 1.82m to 2.5mIndoor installation protection class IP65Power consumption during operation: 0.45W

Welcome to use the infrared motion detector, this product uses high-sensitivity detectors, integrated circuits and SMD. It combines automatic, practical, safe, energy-saving and convenient functions. It uses human infrared radiation as a signal source. When a living creature enters the detection field, the load/light will be started immediately. It can distinguish day and night automatically. It is easy to install and its use is wide-ranging.DD017, DD018B, DD012, DD019, DD009, DD008, DD010:Voltage: 220-240V AC 50HzRated load: 1100W incandescent lampRated load: 300W LED and energy-saving lamps Ambient light: 3 - 2000 LUX (adjustable)Switch-off delay: min. 10 sec. - max. 7 min.Working field: (DD017 - 120°, DD018B - 270°, DD012 - 180°, DD019 - 120°, DD009 - 180°, DD008 - 180°, DD010 - 180°)Motion detection up to 12.0mAmbient temperature: -20° C to +40° CHumidity: <93% (non-condensing)Installation height: 1.82m to 2.5mIndoor installation protection class IP44Power consumption during operation: 0.45W DD013 white 180° Voltage: 220-240V AC 50HzNominal load: 1200W incandescent lampNominal load: 300W LED and energy-saving lamps Ambient light: 3 - 2000 LUX (adjustable)Switch-off delay: min. 10 sec. - max. 15 min.Working field: 180°Motion detection up to 12.0mAmbient temperature: -20° C to +40° CHumidity: <93% (non-condensing)Installation height: 1.82m to 2.5mIndoor installation protection class IP65Power consumption during operation: 0.45W

Welcome to use the infrared motion detector, this product uses high-sensitivity detectors, integrated circuits and SMD. It combines automatic, practical, safe, energy-saving and convenient functions. It uses human infrared radiation as a signal source. When a living creature enters the detection field, the load/light will be started immediately. It can distinguish day and night automatically. It is easy to install and its use is wide-ranging.DD017, DD018B, DD012, DD019, DD009, DD008, DD010:Voltage: 220-240V AC 50HzRated load: 1100W incandescent lampRated load: 300W LED and energy-saving lamps Ambient light: 3 - 2000 LUX (adjustable)Switch-off delay: min. 10 sec. - max. 7 min.Working field: (DD017 - 120°, DD018B - 270°, DD012 - 180°, DD019 - 120°, DD009 - 180°, DD008 - 180°, DD010 - 180°)Motion detection up to 12.0mAmbient temperature: -20° C to +40° CHumidity: <93% (non-condensing)Installation height: 1.82m to 2.5mIndoor installation protection class IP44Power consumption during operation: 0.45W DD013 white 180° Voltage: 220-240V AC 50HzNominal load: 1200W incandescent lampNominal load: 300W LED and energy-saving lamps Ambient light: 3 - 2000 LUX (adjustable)Switch-off delay: min. 10 sec. - max. 15 min.Working field: 180°Motion detection up to 12.0mAmbient temperature: -20° C to +40° CHumidity: <93% (non-condensing)Installation height: 1.82m to 2.5mIndoor installation protection class IP65Power consumption during operation: 0.45W

The body of the sensor is made of flame-retardant plastic (polycarbonate).An electromechanical relay is used as the load switching element.Technical characteristicsMaximum switching capacity 1100 WMaximum load power for incandescent lamps 1100 WMaximum load power for luminous, non-starting lamps 300VA _Optimum installation height 1.8...2.5 mMaximum transmission distance per side 12 mMaximum transmission distance on the front 12 mMaximum duty cycle 7±2 minMin. switch-on time 10±3 secIllumination threshold 3...2000 luxHorizontal detection angle 180 °Nominal voltage 230 VFrequency 50 HertzCross-section of the connected conductors 0.75...1.5 mm²Maximum power on 0.45 WThreshold regulation by senses NoIR sensitivity of the object YesSetting the light threshold YesRange adjustment NoTemperature -25...45 °CWidth 72.0 mmHeight 82.0 mmDepth 122.0 mmConstant light control YesHVAC or air conditioning NoForce shutdown NoAnimal reaction zone NoAnti-slip protection NoNetworkable NoStep monitoring NoShunt switch NoSuitable for wireless transmission NoRemote control NoWith signalling device NoFunction for determining the optimum brightness value NoDimming function with dimming mechanism NoTransparent NoSupplements the control input NoAlarm functions NoMaximum object detection range 12 m
