Sheathed cable NYM-J 1.5 mm²

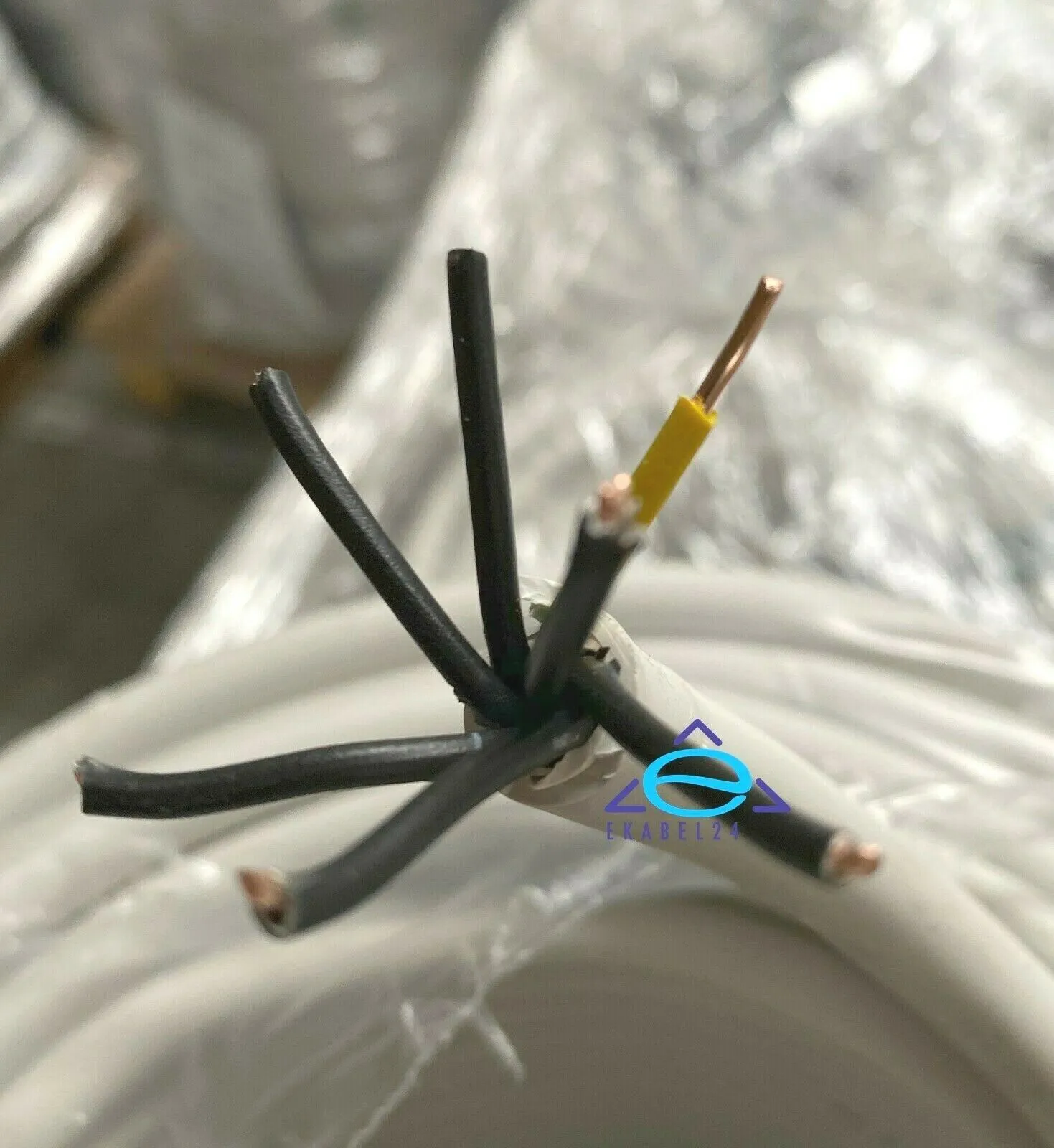

NYM-J 7x1.5 mm² sheathed cable by the metre

- NYM-J 7x1.5 PVC installation cable by the metre in accordance with DIN VDE 0250 Part 204- Outer diameter: approx. 11.5 mm - Conductor material: Cu, bare- Conductor class: Class 1 (solid) - Number of cores: 7 - Core labelling: according to VDE 0293 - Conductor nominal cross-section: 1.5 mm² - Sheath colour: grey (RAL 7035) - Flame retardancy: according to VDE 0482-332-1-2 - Permissible external cable temperature permanently installed: -40 - +70 °C - Permissible external cable temperature in motion: -5 - +70 °C - Rated voltage: U0/U 300/500 V - Test voltage: 2 kV

€1.74*

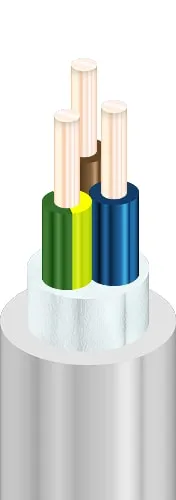

NYM-J 3x1.5 mm² sheathed cable 100m

- 100m ring NYM-J 3x1.5 PVC installation cable to DIN VDE 0250 Part 204- Outer diameter: approx. 12 mm - Conductor material: Cu, bare- Conductor class: Class 1 (solid) - Number of cores: 3- Core labelling: according to VDE 0293 - Conductor nominal cross-section: 1.5 mm² - Sheath colour: grey (RAL 7035) - Flame retardancy: according to VDE 0482-332-1-2 - Permissible external cable temperature permanently installed: -40 - +70 °C - Permissible external cable temperature in motion: -5 - +70 °C - Rated voltage: U0/U 300/500 V - Test voltage: 2 kV

Content: 100 Meter (€0.67* / 1 Meter)

€67.10*

NYM-J 3x1.5 mm² sheathed cable 50m

- 50m ring NYM-J 3x1.5 PVC installation cable to DIN VDE 0250 Part 204- Outer diameter: approx. 8 mm- Conductor material: Cu, bare- Conductor class: Class 1 (solid) - Number of cores: 3 - Core labelling: according to VDE 0293 - Conductor nominal cross-section: 1.5 mm² - Sheath colour: grey (RAL 7035) - Flame retardancy: according to VDE 0482-332-1-2 - Permissible external cable temperature permanently installed: -40 - +70 °C - Permissible external cable temperature in motion: -5 - +70 °C - Rated voltage: U0/U 300/500 V - Test voltage: 2 kV

Content: 50 Meter (€0.70* / 1 Meter)

€35.12*

Mantelleitung 25m, Klasse 1, NYM-J 5x4 mm²

NYM-J 5x1.5 mm² sheathed cable 25m

- 25m ring NYM-J 5x1.5 PVC installation cable to DIN VDE 0250 Part 204- Outer diameter: approx. 10 mm - Conductor material: Cu, bare- Conductor class: Class 1 (solid) - Number of cores: 5- Core labelling: according to VDE 0293 - Conductor nominal cross-section: 1.5 mm² - Sheath colour: grey (RAL 7035) - Flame retardancy: according to VDE 0482-332-1-2 - Permissible external cable temperature permanently installed: -40 - +70 °C - Permissible external cable temperature in motion: -5 - +70 °C - Rated voltage: U0/U 300/500 V - Test voltage: 2 kV

Content: 25 Meter (€1.11* / 1 Meter)

€27.81*

NYM-J 5x1.5 mm² sheathed cable 100m

- 100m ring NYM-J 5x1.5 PVC installation cable to DIN VDE 0250 Part 204- Outer diameter: approx. 10 mm - Conductor material: Cu, bare- Conductor class: Class 1 (solid) - Number of cores: 5- Core labelling: according to VDE 0293 - Conductor nominal cross-section: 1.5 mm² - Sheath colour: grey (RAL 7035) - Flame retardancy: according to VDE 0482-332-1-2 - Permissible external cable temperature permanently installed: -40 - +70 °C - Permissible external cable temperature in motion: -5 - +70 °C - Rated voltage: U0/U 300/500 V - Test voltage: 2 kV

Content: 100 Meter (€1.05* / 1 Meter)

€105.12*

NYM-J 3x1.5 mm² sheathed cable 25m

- 25m ring NYY-J 3x1.5 PVC power cable to DIN VDE 0279 Part 603 - Conductor material: CU, bare - Outer diameter: approx. 10.5 mm- Conductor class: class 1 (solid) - Number of cores: 3 - Core labelling: according to VDE 0293 - Conductor nominal cross-section: 1.5 mm² - Sheath colour: grey (RAL 7035) - Flame retardancy: according to VDE 0482-332-1-2/IEC 60332-1 - Permissible operating temperature: at conductor 70°C - Permissible external cable temperature permanently installed: +70 °C - Permissible external cable temperature in motion: -5 - +70 °C - Rated voltage: u0/u 0.6/1 kV - Test voltage: 4 kV

Content: 25 Meter (€0.75* / 1 Meter)

€18.78*

NYM-J 5x1.5 mm² sheathed cable 50m

- 50m ring NYM-J 5x1.5 PVC installation cable to DIN VDE 0250 Part 204 - Outer diameter: approx. 10 mm- Conductor material: Cu, bare- Conductor class: Class 1 (solid) - Number of cores: 5- Core labelling: according to VDE 0293 - Conductor nominal cross-section: 1.5 mm² - Sheath colour: grey (RAL 7035) - Flame retardancy: according to VDE 0482-332-1-2 - Permissible external cable temperature permanently installed: -40 - +70 °C - Permissible external cable temperature in motion: -5 - +70 °C - Rated voltage: U0/U 300/500 V - Test voltage: 2 kV

Content: 50 Meter (€1.06* / 1 Meter)

€52.81*

NYM-J 3x1.5 mm² sheathed cable 500m reel

- 500m reel NYM-J 3x1.5 PVC sheathed cable to DIN VDE 0279 Part 603 - Conductor material: CU, bare - Outer diameter: approx. 10.5 mm- Conductor class: class 1 (solid) - Number of cores: 3 - Core labelling: according to VDE 0293 - Conductor nominal cross-section: 1.5 mm² - Sheath colour: grey- Flame retardancy: according to VDE 0482-332-1-2/IEC 60332-1 - Permissible operating temperature: at conductor 70°C - Permissible external cable temperature in fixed installation: +70°C - Permissible external cable temperature in motion: -5 - +70 °C - Rated voltage: u0/u 0.6/1 kV - Test voltage: 4 kV

Content: 500 Meter (€0.70* / 1 Meter)

€348.67*

NYM-J 5x1.5 mm² sheathed cable 500m reel

- 500m NYM-J 5x1.5 PVC installation cable reel to DIN VDE 0250 Part 204- Outer diameter: approx. 10 mm - Conductor material: Cu, bare- Conductor class: Class 1 (solid) - Number of cores: 5- Core labelling: according to VDE 0293 - Conductor nominal cross-section: 1.5 mm² - Sheath colour: grey (RAL 7035) - Flame retardancy: according to VDE 0482-332-1-2 - Permissible external cable temperature permanently installed: -40 - +70 °C - Permissible external cable temperature in motion: -5 - +70 °C - Rated voltage: U0/U 300/500 V - Test voltage: 2 kV

Content: 500 Meter (€1.08* / 1 Meter)

€540.00*

Mantelleitung NYM-J in Querschnitten von 1,5 mm² – Attraktive Preise und schneller Versand bei Ekabel24.de

Mantelleitung NYM-J – Diese Leitung eignet sich für die Verlegung über, auf, in und unter Putz in trockenen, feuchten sowie nassen Räumen, ebenso in Mauerwerk und Beton, ausgenommen in gerütteltem oder gestampftem Beton. Auch für den Außenbereich ist das Kabel geeignet, solange es vor direkter Sonneneinstrahlung geschützt wird – jedoch nicht zur Verlegung im Erdreich.

Das "N" in der Bezeichnung steht für ein Normkabel. Mantelleitung NYM-J in Querschnitten von 1,5 mm² bis 16 mm² – Top-Preise und schnelle Lieferung bei Ekabel24.de.
