Sheathed cable NYM-J

Buy at B2B prices

Apply for a B2B account for wholesale prices.
0% VAT for B2B customers from Belgium, Austria, and the Netherlands.

Subscribe to the newsletter to receive the latest discount codes.

Filter
NYM-J 3x1.5 mm² sheathed cable 100m
NYM-J 3x1.5 mm² sheathed cable 100m
- 100m ring NYM-J 3x1.5 PVC installation cable to DIN VDE 0250 Part 204- Outer diameter: approx. 12 mm - Conductor material: Cu, bare- Conductor class: Class 1 (solid) - Number of cores: 3- Core labelling: according to VDE 0293 - Conductor nominal cross-section: 1.5 mm² - Sheath colour: grey (RAL 7035) - Flame retardancy: according to VDE 0482-332-1-2 - Permissible external cable temperature permanently installed: -40 - +70 °C - Permissible external cable temperature in motion: -5 - +70 °C - Rated voltage: U0/U 300/500 V - Test voltage: 2 kV

Content: 100 Meter (€0.68* / 1 Meter)

€68.12*
mantelleitung nym 3x1,5
NYM-J 3x1.5 mm² sheathed cable 25m
- 25m ring NYY-J 3x1.5 PVC power cable to DIN VDE 0279 Part 603 - Conductor material: CU, bare - Outer diameter: approx. 10.5 mm- Conductor class: class 1 (solid) - Number of cores: 3 - Core labelling: according to VDE 0293 - Conductor nominal cross-section: 1.5 mm² - Sheath colour: grey (RAL 7035) - Flame retardancy: according to VDE 0482-332-1-2/IEC 60332-1 - Permissible operating temperature: at conductor 70°C - Permissible external cable temperature permanently installed: +70 °C - Permissible external cable temperature in motion: -5 - +70 °C - Rated voltage: u0/u 0.6/1 kV - Test voltage: 4 kV

Content: 25 Meter (€0.77* / 1 Meter)

€19.14*
NYM-J 3x1.5 mm² sheathed cable 500m reel
NYM-J 3x1.5 mm² sheathed cable 500m reel
- 500m reel NYM-J 3x1.5 PVC sheathed cable to DIN VDE 0279 Part 603 - Conductor material: CU, bare - Outer diameter: approx. 10.5 mm- Conductor class: class 1 (solid) - Number of cores: 3 - Core labelling: according to VDE 0293 - Conductor nominal cross-section: 1.5 mm² - Sheath colour: grey- Flame retardancy: according to VDE 0482-332-1-2/IEC 60332-1 - Permissible operating temperature: at conductor 70°C - Permissible external cable temperature in fixed installation: +70°C - Permissible external cable temperature in motion: -5 - +70 °C - Rated voltage: u0/u 0.6/1 kV - Test voltage: 4 kV

Content: 500 Meter (€0.70* / 1 Meter)

€348.67*
mantelleitung nym 3x1,5
NYM-J 3x1.5 mm² sheathed cable 50m
- 50m ring NYM-J 3x1.5 PVC installation cable to DIN VDE 0250 Part 204- Outer diameter: approx. 8 mm- Conductor material: Cu, bare- Conductor class: Class 1 (solid) - Number of cores: 3 - Core labelling: according to VDE 0293 - Conductor nominal cross-section: 1.5 mm² - Sheath colour: grey (RAL 7035) - Flame retardancy: according to VDE 0482-332-1-2 - Permissible external cable temperature permanently installed: -40 - +70 °C - Permissible external cable temperature in motion: -5 - +70 °C - Rated voltage: U0/U 300/500 V - Test voltage: 2 kV

Content: 50 Meter (€0.71* / 1 Meter)

€35.50*
mantelleitung nym 3x1,5
NYM-J 3x2.5 mm² sheathed cable 100m
- 100m ring NYM-J 3x2.5 PVC installation cable to DIN VDE 0250 Part 204- Outer diameter: approx. 10 mm - Conductor material: Cu, bare- Conductor class: Class 1 (solid) - Number of cores: 3 - Core labelling: according to VDE 0293 - Conductor nominal cross-section: 2.5 mm² - Sheath colour: grey (RAL 7035) - Flame retardancy: according to VDE 0482-332-1-2 - Permissible external cable temperature permanently installed: -40 - +70 °C - Permissible external cable temperature in motion: -5 - +70 °C - Rated voltage: U0/U 300/500 V - Test voltage: 2 kV

Content: 100 Meter (€1.12* / 1 Meter)

€111.96*
mantelleitung nym 3x1,5
NYM-J 3x2.5 mm² sheathed cable 25m
- 25m ring NYM-J 3x2.5 PVC installation cable to DIN VDE 0250 Part 204 - Conductor material: Cu, bare- Outer diameter: approx. 10 mm- Conductor class: Class 1 (solid) - Number of cores: 3 - Core labelling: according to VDE 0293 - Conductor nominal cross-section: 2.5 mm² - Sheath colour: grey (RAL 7035) - Flame retardancy: according to VDE 0482-332-1-2 - Permissible external cable temperature permanently installed: -40 - +70 °C - Permissible external cable temperature in motion: -5 - +70 °C - Rated voltage: U0/U 300/500 V - Test voltage: 2 kV

Content: 25 Meter (€1.12* / 1 Meter)

€28.10*
NYM-J 3x2.5 mm² sheathed cable 500m reel
NYM-J 3x2.5 mm² sheathed cable 500m reel
- 500m reel NYM-J 3x2.5 PVC sheathed cable to DIN VDE 0279 Part 603 - Conductor material: CU, bare - Outer diameter: approx. 10 mm- Conductor class: class 1 (solid) - Number of cores: 3 - Core labelling: according to VDE 0293 - Conductor nominal cross-section: 2.5 mm² - Sheath colour: grey- Flame retardancy: according to VDE 0482-332-1-2/IEC 60332-1 - Permissible operating temperature: at conductor 70°C - Permissible external cable temperature in fixed installation: +70°C - Permissible external cable temperature in motion: -5 - +70 °C - Rated voltage: u0/u 0.6/1 kV - Test voltage: 4 kV

Content: 500 Meter (€1.07* / 1 Meter)

€535.00*
mantelleitung nym 3x1,5
NYM-J 3x2.5 mm² sheathed cable 50m
- 50m ring NYM-J 3x2.5 PVC installation cable to DIN VDE 0250 Part 204 - Outer diameter: approx. 10 mm- Conductor material: Cu, bare- Conductor class: Class 1 (solid) - Number of cores: 3 - Core labelling: according to VDE 0293 - Conductor nominal cross-section: 2.5 mm² - Sheath colour: grey (RAL 7035) - Flame retardancy: according to VDE 0482-332-1-2 - Permissible external cable temperature permanently installed: -40 - +70 °C - Permissible external cable temperature in motion: -5 - +70 °C - Rated voltage: U0/U 300/500 V - Test voltage: 2 kV

Content: 50 Meter (€1.12* / 1 Meter)

€56.10*

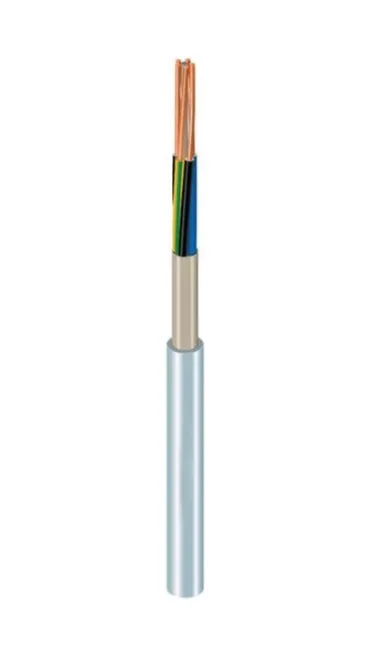

NYM-J 4x6 mm² sheathed cable 50m
NYM-J 4x6 mm² sheathed cable 50m
- 50m ring NYM-J 4x6 PVC installation cable to DIN VDE 0250 Part 204- Outer diameter: approx. 18 mm - Conductor material: Cu, bare- Conductor class: Class 1 (solid) - Number of cores: 4 - Core labelling: according to VDE 0293 - Conductor nominal cross-section: 6 mm² - Sheath colour: grey (RAL 7035) - Flame resistance: in accordance with VDE 0482-332-1-2 - Permissible external cable temperature permanently installed: -40 - +70 °C - Permissible external cable temperature in motion: -5 - +70 °C - Rated voltage: U0/U 300/500 V - Test voltage: 2 kV

Content: 50 Meter (€3.56* / 1 Meter)

€178.11*
Mantelleitung 25m, Klasse 1, NYM-J 5x4 mm²
NYM-J 5x1.5 mm² sheathed cable 100m
- 100m ring NYM-J 5x1.5 PVC installation cable to DIN VDE 0250 Part 204- Outer diameter: approx. 10 mm - Conductor material: Cu, bare- Conductor class: Class 1 (solid) - Number of cores: 5- Core labelling: according to VDE 0293 - Conductor nominal cross-section: 1.5 mm² - Sheath colour: grey (RAL 7035) - Flame retardancy: according to VDE 0482-332-1-2 - Permissible external cable temperature permanently installed: -40 - +70 °C - Permissible external cable temperature in motion: -5 - +70 °C - Rated voltage: U0/U 300/500 V - Test voltage: 2 kV

Content: 100 Meter (€1.09* / 1 Meter)

€109.10*
Mantelleitung 25m, Klasse 1, NYM-J 5x4 mm²
NYM-J 5x1.5 mm² sheathed cable 25m
- 25m ring NYM-J 5x1.5 PVC installation cable to DIN VDE 0250 Part 204- Outer diameter: approx. 10 mm - Conductor material: Cu, bare- Conductor class: Class 1 (solid) - Number of cores: 5- Core labelling: according to VDE 0293 - Conductor nominal cross-section: 1.5 mm² - Sheath colour: grey (RAL 7035) - Flame retardancy: according to VDE 0482-332-1-2 - Permissible external cable temperature permanently installed: -40 - +70 °C - Permissible external cable temperature in motion: -5 - +70 °C - Rated voltage: U0/U 300/500 V - Test voltage: 2 kV

€29.16*
NYM-J 5x1.5 mm² sheathed cable 500m reel
NYM-J 5x1.5 mm² sheathed cable 500m reel
- 500m reel NYM-J 5x1.5 PVC installation cable to DIN VDE 0250 Part 204- Outer diameter: approx. 10 mm - Conductor material: Cu, bare- Conductor class: Class 1 (solid) - Number of cores: 5- Core labelling: according to VDE 0293 - Conductor nominal cross-section: 1.5 mm² - Sheath colour: grey (RAL 7035) - Flame retardancy: according to VDE 0482-332-1-2 - Permissible external cable temperature permanently installed: -40 - +70 °C - Permissible external cable temperature in motion: -5 - +70 °C - Rated voltage: U0/U 300/500 V - Test voltage: 2 kV

Content: 500 Meter (€1.08* / 1 Meter)

€540.00*

5% Rabatt für Bestellungen ab 500 €

Abonnieren Sie den Newsletter, um den Code zu erhalten.

Kostenloser Versand nach Deutschland

für Bestellungen über 500 € ohne Spedition
und für alle Bestellungen über 1000 €

Mantelleitung NYM-J von 1,5 mm² bis 16 mm²

Sheathed cable NYM-J NYM-J from 1.5 mm² to 16 mm², top prices and fast delivery at Ekabel24.de

NYM-J sheathed cable - this cable is suitable for laying over, on, in and under plaster in dry, damp and wet rooms as well as in masonry and concrete, with the exception of direct embedding in vibrated or tamped concrete. The cable is also suitable for outdoor use, provided it is protected from direct sunlight, but not in the ground.

The first letter "N" in the labelling means that it is a standard cable. Sheathed cable NYM-J NYM-J from 1.5 mm² to 16 mm² Top prices and fast delivery at Ekabel24.de.
